Seite 1/216
Installation Manual
Operation Manual
(Original Instruction)
Scroll condensing unit
for medium temperature application
Reciprocating condensing unit
for medium temperature application
Series 1
JEHCCU0040CM1
JEHCCU0050CM1
JEHCCU0051CM1
JEHCCU0063CM1
JEHCCU0067CM1
JEHCCU0077CM1
JEHCCU0095CM1
JEHCCU0100CM1
JEHCCU0113CM1
Series 2
JEHCCU0140CM1
JEHCCU0140CM3
JEHCCU0150CM1
JEHCCU0150CM3
JEHCCU0225CM1
JEHCCU0225CM3
JEHCCU0300CM1
JEHCCU0300CM3
Reciprocating condensing unit
for low temperature application
Series 1
JEHCCU0115CL1
Series 2
JEHSCU0200CM1
JEHSCU0200CM3
JEHSCU0250CM1
JEHSCU0250CM3
JEHSCU0300CM1
JEHSCU0300CM3
JEHSCU0350CM3
Series 3
JEHSCU0400CM3
JEHSCU0500CM3
JEHSCU0600CM3
JEHSCU0680CM3
Series 4
JEHSCU0800CM3
JEHSCU1000CM3
Scroll condensing unit
for low temperature application
Series 2
JEHSCU0200CL3
JEHSCU0300CL3
Series 3
JEHSCU0400CL3
JEHSCU0500CL3
JEHSCU0600CL3
Series 4
JEHSCU0750CL3
JEHSCU0950CL3 EVI
ENGLISH
1. Nomenclature 2
2. Safety and Health 2
3. Installation & commissioning 2
4. Decommissioning & Disposal 9
5. Checklist 9
6. Service and Maintenance 9
7. F gas Regulations 10
8. Trouble Shooting 10
9. Specifications 11
10. Outline Drawings 13
11. Electrical Data 16
12. Appendix 23
Contents
1. Nomenclature
2. Safety and Health
3. Installation & Commissioning
General Information
Important Note
Only a qualified refrigeration engineer who is familiar
with refrigeration systems and components, including all
controls should perform the installation and start-up of
the system. To avoid potential injury, use care when
working around coil surfaces or
sharp edges of metal
cabinets. All piping and electrical wiring should be
installed in accordance with all applicable codes,
ordinances and local by-laws.
This appliances is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety. Children should be
supervised to ensure tha
t they do not play with the
appliance.
● Ensure the unit received is the correct model for the intended
application.
● Ensure refrigerant, voltage, are suitable for the proposed
application and environment.
● Installation and maintenance are to be performed only by
qualified personnel who are familiar with local codes and
regulations, and experienced with this type of equipment.
● The condensing unit is delivered with a nitrogen holding charge.
O-CU06-AUG17-3
All specifications are subjected to change by the manufacturer without prior notice. The English text is the original instruction.
Other languages are the translations of the original instructions.
2

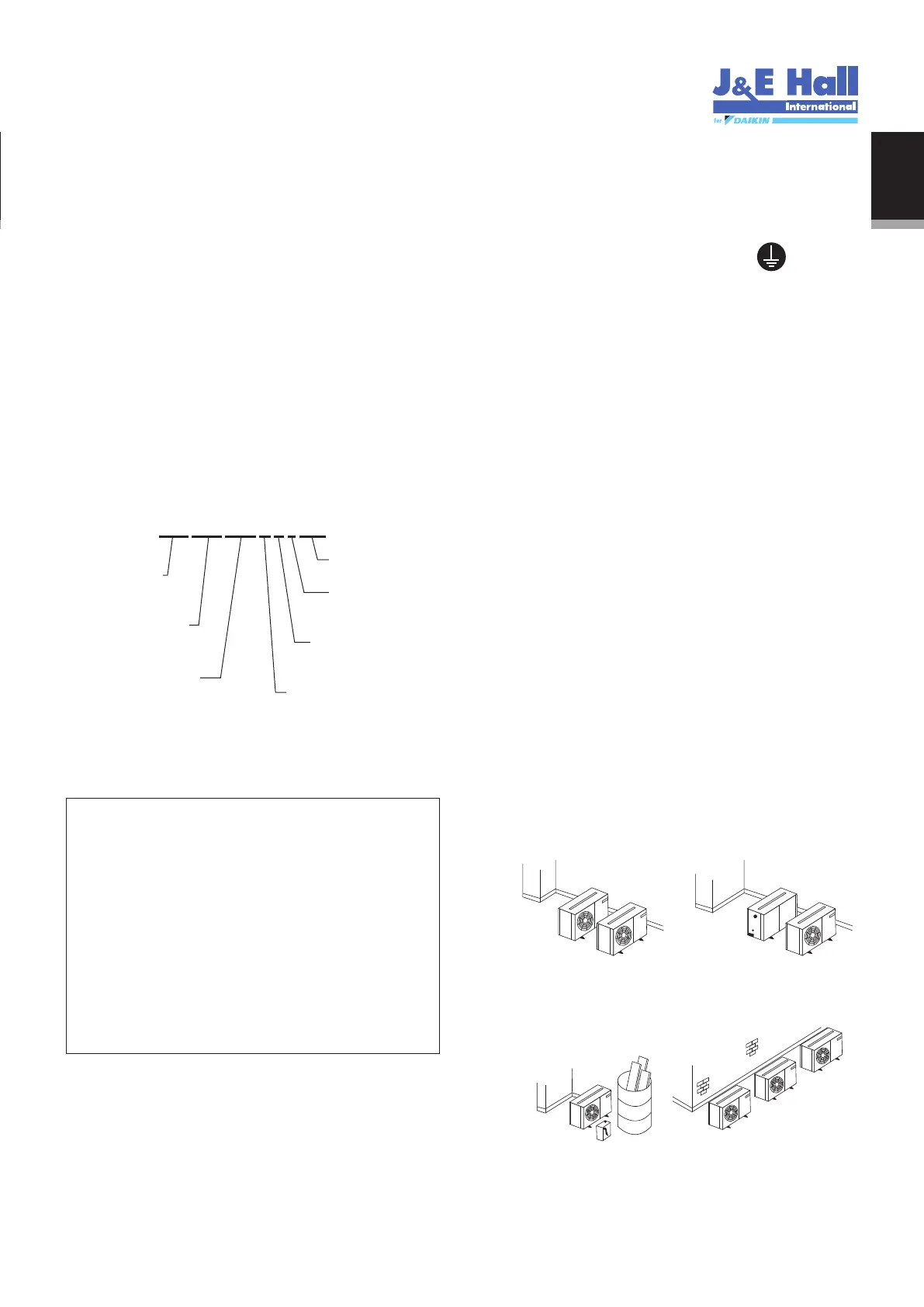

JEH SCU 0950 C L 3 EVI
EVI: Vapour Injection Unit
POWER SUPPLY
1: 230V/50Hz/1Ph
3: 400V/50Hz/3Ph
APPLICATION
M: MEDIUM TEMPERATURE
L: LOW TEMPERATURE
GENERATION
B: 2ND
C: 3RD
NOMINAL COOLING
CAPACITY IN
HP (DIVIDED BY 100)
TYPE OF COMPRESSOR
CCU: RECIPROCATING
SCU: SCROLL
J&E Hall
REFRIGERATION
CONDENSING UNIT
● The condensing unit contains moving machinery and electrical
power hazards. May cause severe injury or death.
Disconnectand shut off power before installation or service of
the equipment.
● Refrigerant release into the atmosphere is illegal. Proper
evacuation, handling and leak testing procedures must be
observed at all times.
● Condensing unit must be earthed
Improper earthing may result in electric shocks
or fire.
● Be sure to switch off the unit before
touching any electrical parts. Touching a live part may result in
electric shocks or fire.
● The electrical covers and condenser fan guard must remain
fitted at all times.
● Use of the condensing unit outside of design conditions and
application for which units were intended may be unsafe and be
detrimental to the unit, regardless short or long term operation.
● The condensing units are not designed to withstand loads or
stresses from other equipment or personnel. Such extraneous
loads or stress may cause failure / leak / injury. In some
circumstances, a suction accumulator (not supplied) component
may be required, it offers protection against refrigerant flood
back during operation. It helps protect against off-cycle
migration by adding internal free volume to the low side of the
system.
● Test must be conducted to ensure the amount of off-cycle
migration to the compressor does not exceed the compressor’s
charge limit.
● Wherever possible the system should be installed to utilize a
pump down configuration. For unit Series 1 JEHCCU040CM1
and JEHCCU0050CM1, it is advisable to connect with
thermostat cut off configuration using the reserved terminal in
control box.
● After installation, the system should be allowed to run for 3 – 4
hours. The oil level should be checked after 3 – 4 hours run time
and topped up as necessary. The oil level should not be lower
than quarter of the compressor oil sight glass.
3.1 Unit site location
● In order to achieve maximum cooling capacity, the installation
location for condensing unit should be carefully selected.
● Install the condensing unitin such a way so that hot air
distributed by the condensing unit cannot be drawn in again (as
in the case of short circuit of hot discharge air). Allow sufficient
space for maintenance around the unit.
● Ensure that there is no obstruction of air flow into or out of the
unit. Remove obstacles which block air intake or discharge.
CORRECT !
WRONG !
WRONG!
CORRECT!
ENGLISH
