DLEDW‐200,‐234,‐245‐Installationinstructions



Important information

Caution

This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product

and the hazards involved. We recommend you use a licenced electrician.

This product is designed to be wall mounted and is suitable for use outdoors in wet locations. Follow detailed instructions for wet location installation.

To reduce the risk of fire, electrical shock, or injury to persons, turn off power before installation or maintenance.

Do not use luminaire with a damaged lens, body or cable.

Installation

This product is designed to fit in to a standard junction box (J-Box) having minimum inside dimensions of 47mm(1.84”)W x 73mm(2.89”)H x

61mm(2.4”)D.

For mortar or poured concrete installation, use appropriate water proof junction box suitable for that application. J-Box is not provided.

For indoor installation – Vertical application

1)Single gang J-Box should be mounted 1.6mm(1/16”) behind wall surface.

2)Separate faceplate (A) from main body by loosening set screw (B) with allen key provided.

3)Fixture is now ready to be installed in vertical orientation.

4)For indoor application rubber gasket (C) is not required and can be discarded. Use one or two washers (J) to compensate for unused gasket.

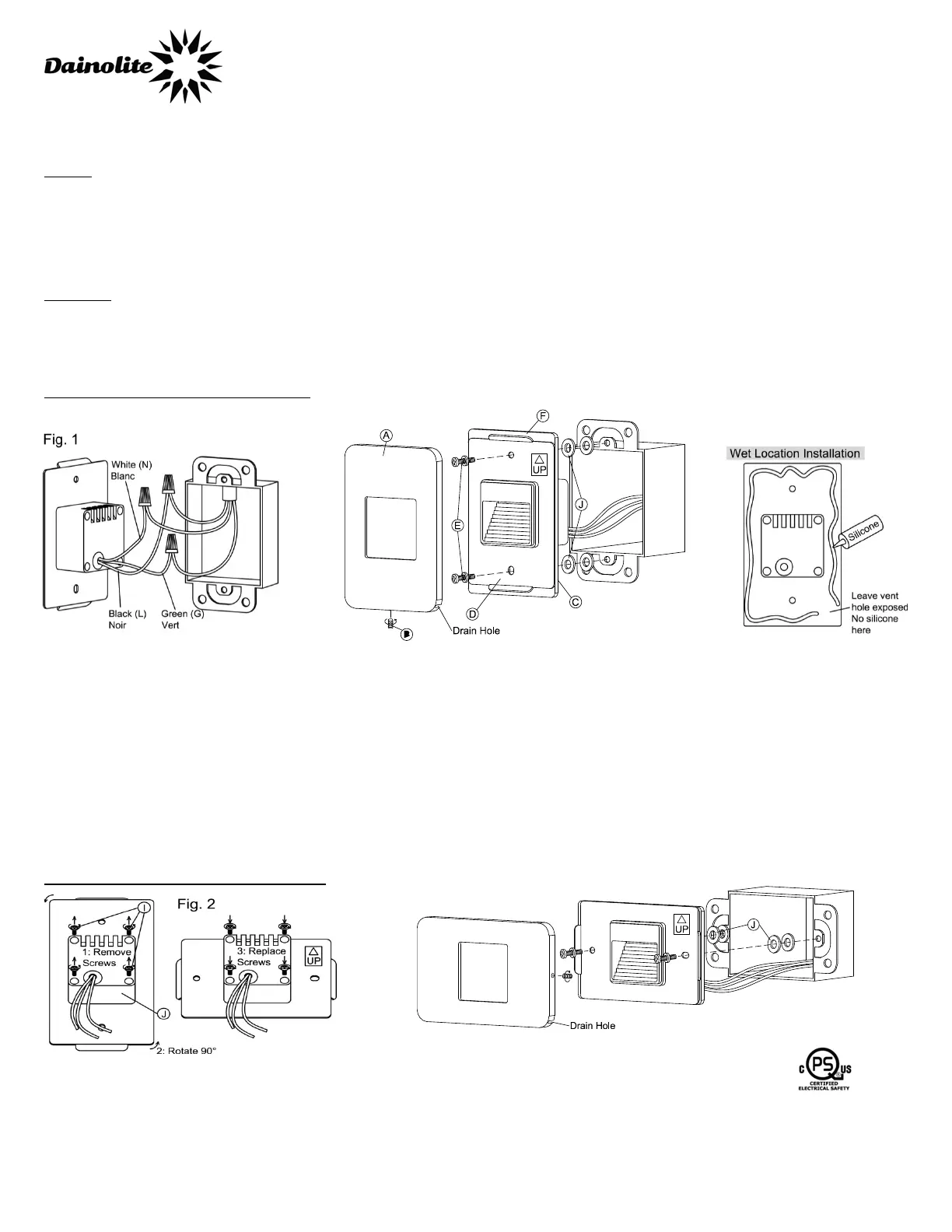

5)Make electrical connection as per instructions. (Fig. 1) Connect black fixture wire to black wire from J-Box, white wire to white neutral wire from J-

Box, and green fixture wire to (ground) green wire or bare copper wire from J-Box. Use proper size wire nuts (marrets) – not supplied. Make sure

connections are completely covered. Gently place all wiring back into J-Box.

*Multiple fixtures can be wired together in parallel.

6)You are now ready to attach back plate (D) to J-Box. Use two mounting screws (E) provided, to secure back plate (D) to J-Box. Tighten securely.

7)Faceplate (A) can now be installed. Hook top of faceplate onto tab (F). Push bottom of faceplate towards the wall until flush. Tighten set screw (B).

For indoor installation – Horizontal application

1)Fixture always shipped ready for vertical orientation. To change orientation follow instructions in Fig. 2

-Open four screws (I)

-Rotate light engine (J) quarter turn.

-Tighten four screws (I)

-Use same instructions for vertical installation.





LR1331

3.3WLED

120V60Hz

Samsung

2700K

CRI80+
