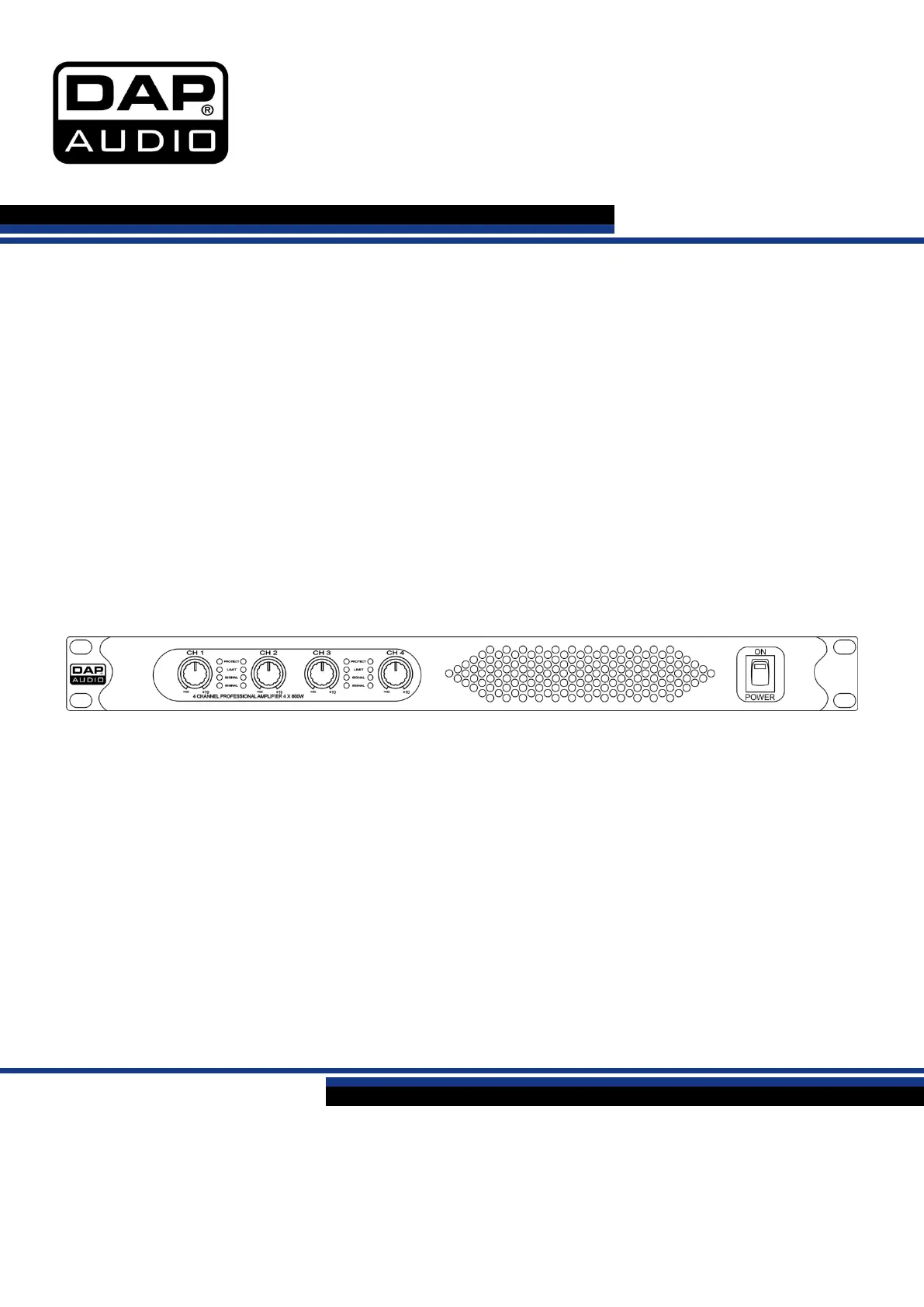

Seite 1/16

Qi-4200 / 4400 / 4600 V1

Highlite International B.V. Vestastraat 6468 EX Kerkrade the Netherlands –2 – – –

Ordercode: D4530 / D4531 / D4532

MANUAL

ENGLISH

Ordercode: D4530 / D4531 / D4532

Qi-4200 / 4400 / 4600

Table of contents

Warning ............................................................................................................................................................................... 2

Unpacking Instructions ................................................................................................................................................. 2

Safety Instructions ......................................................................................................................................................... 2

Operating Determinations .......................................................................................................................................... 4

Return Procedure .......................................................................................................................................................... 4

Claims .............................................................................................................................................................................. 4

Description of the device ................................................................................................................................................. 5

Features .......................................................................................................................................................................... 5

Frontside 5..........................................................................................................................................................................

Backside 6.........................................................................................................................................................................

Installation ........................................................................................................................................................................... 6

Set Up and Operation ....................................................................................................................................................... 6

Names and Functions ....................................................................................................................................................... 7

Frontside 7..........................................................................................................................................................................

Backside 8.........................................................................................................................................................................

Connection modes ........................................................................................................................................................... 9

Stereo connection ........................................................................................................................................................ 9

Mono connection ......................................................................................................................................................... 9

Bridge connection ........................................................................................................................................................ 9

Connection Cables .........................................................................................................................................................10

Maintenance ....................................................................................................................................................................11

Troubleshooting ...............................................................................................................................................................11

Product Specifications ....................................................................................................................................................12

Dimensions ........................................................................................................................................................................13

Notes ..................................................................................................................................................................................14

Ordercode: D4530 / D4531 / D4532

Qi-4200 / 4400 / 4600

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

• -4200 / 4400 / 4600 Qi

• User manual

Safety Instructions

Every person involved with the installation, operation and maintenance of this system has to:

• be qualified

• follow the instructions of this manual

Before the initial start-up, please make sure that there is no damage caused by transportation.

Should there be any, consult your dealer and do not use the system.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the system are not subject to

warranty.

This system contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the system.

 Always let the device cool down before cleaning or servicing.

 Always disconnect power from the mains, when system is not used. Only handle the power cord by

the plug. Never pull out the plug by tugging the power cord.

 Always operate the unit with the AC ground wire connected to the electrical system ground.

 Avoid flames and do not put close to flammable liquids or gases.

 Avoid ground loops! Always be sure to connect the power amps and the mixing console to the

same electrical circuit to ensure the same phase!

Produktspezifikationen

Marke:	DAP Audio
Kategorie:	Empfänger
Modell:	Qi-4200
Breite:	388 mm
Tiefe:	44 mm
Gewicht:	5800 g
Produktfarbe:	Schwarz
Höhe:	435 mm
Energieschutzeigenschaften:	Kurzschluß
AC Eingangsspannung:	100-240 V
AC Eingangsfrequenz:	50 - 60 Hz
Stromverbrauch (Standardbetrieb):	500 W
Audio Kanäle:	4.0 Kanäle
THD, totalklirren:	- %
Rauschverhältnis (SNR):	90 dB
Verstärkerklasse:	D
XLR-Eingang:	Ja
RMS Leistungsoutput pro Kanal (4 Ohm):	200 W
Eingang Empfindlichkeit:	650 mV
Synchronisations-Eingangsimpedanz:	20000 Ohm
Lautsprecher-Konnektivitätstyp:	XLR
Leistungshöhepunkt pro Kanal:	- W
RMS Leistungsoutput pro Kanal (8 Ohm):	120 W
