PUB. No. 10AA0-4PB.21 | DAYTRONIC CORPORATION | DAYTON, OH | 800.668.4745 | DAYTRONIC.COM

For use in System 10 ....... The Model is used for the purposes of “real-time” monitoring, the Model 10AA0-410AAO-4

provides continuous buffering, filtering, and fixed gain of 1, 2, or 4 for up to four individual System 10 analog signals. Each

signal may originate from any one of the system’s Conditioner Cards that provides “Auxiliary Output” to wirewrap pins.* The

ctual gain setting for each output will depend on the “TYPE” designation of the corresponding “source” conditioner channel.

Each of the 10AAO-4’s four outputs is nominal ±5V-DC (±6 V maximum), with a minimum load resistance of 2 k½. Each

output is factory-set for a “single-ended” configuration (i.e., output referenced to Signal Common (Ground)). If desired,

however, all four outputs may be reconfigured as “floating,” by connecting an external supply of ±9 V-DC, furnished by the

user. Each 10AAO-4 channel contains a 3-pole modified Butterworth filter with a bandwidth of 47 Hz. In addition, individual

ZERO and SPAN controls are accessible at the front of the card, for further calibration or scaling of a given channel with

reference to its “source” input.

*Cards without “Auxiliary Output” currently include the Models 10A9-8C, 10A10-4, 10A15-8, 10A35, 10A62-8C, 10A64-8C,

10A65-8, and 10A69-4. None of these cards may be directly connected to the Model 10AAO-4 without special modification.

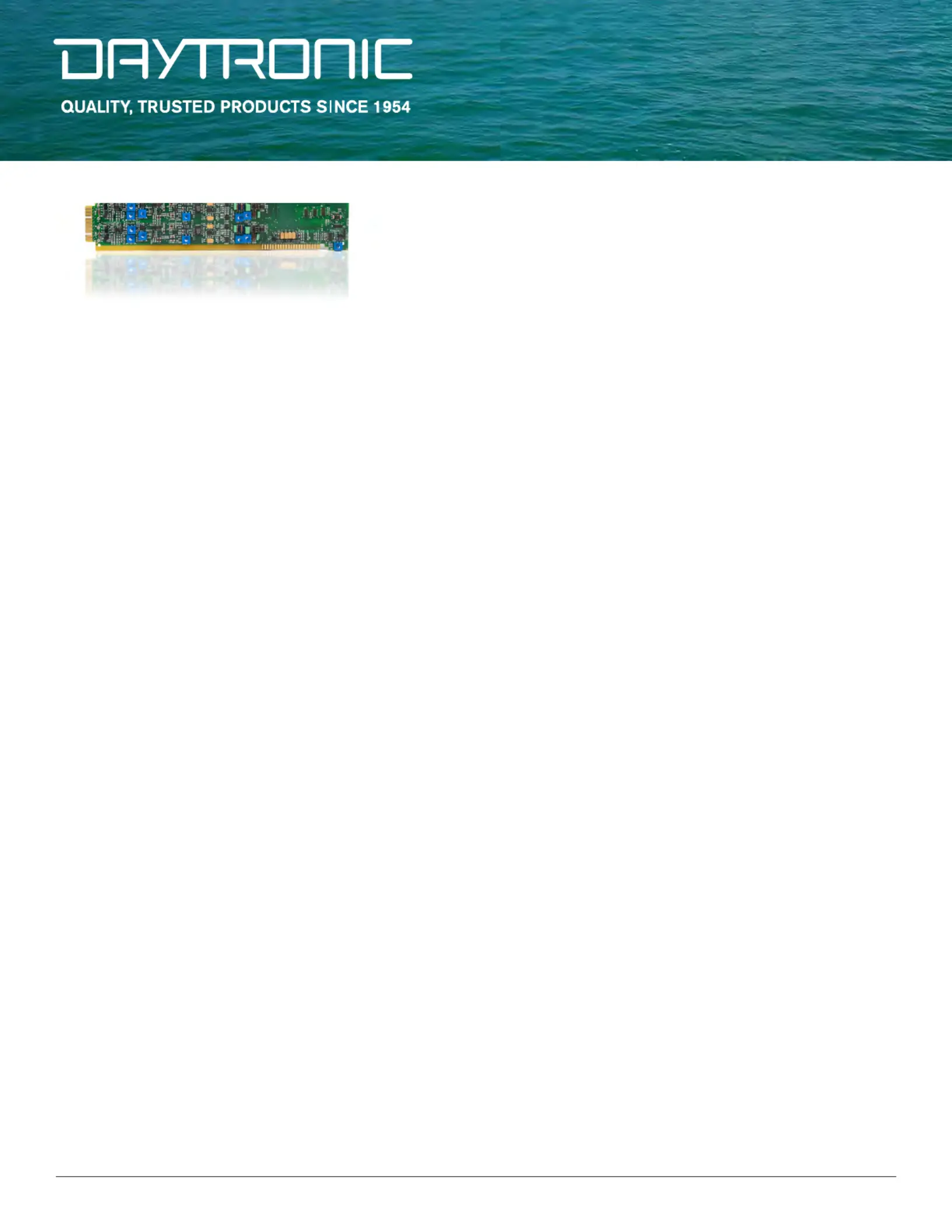

FOUR CHANNEL ANALOG OUTPUT

BUFFER CARD

MODEL 10AA0-4

FOUR CHANNEL ANALOG OUTPUT BUFFER CARD

[“A’ CARD SERIES]
