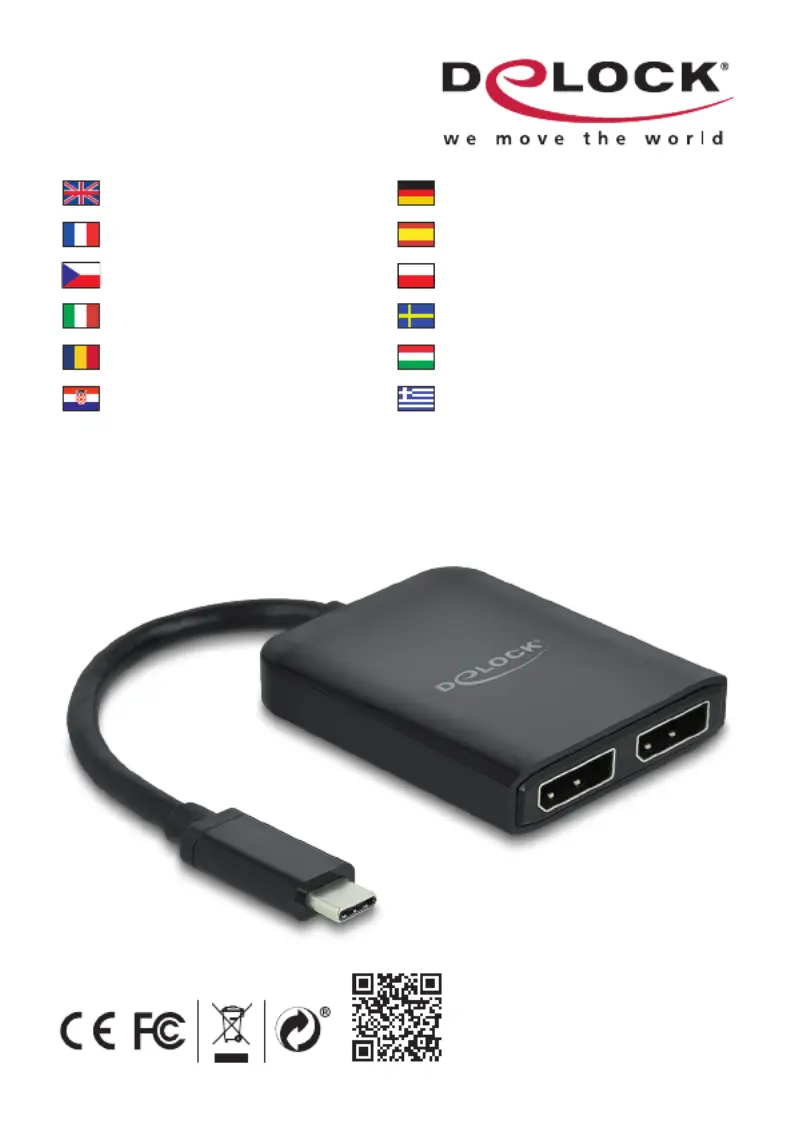

USB Type-C™ Splitter (DP Alt Mode) to

2 x DisplayPort MST / VXP

Product-No:87754

User manual no:87754-a

www.delock.com

User manual

Mode d’emploi

Uživatelská příručka

Manuale utente

Manual de utilizare

Korisnički priručnik

Bedienungsanleitung

Manual del usuario

Instrukcja obsługi

Bruksanvisning

Használati utasítás

Εγχειρίδιο χρήστη

-2-

English

Description

This splitter by Delock is suitable for the connection of two DisplayPort monitors

to a computer with USB-C™ interface and DisplayPort alternate mode support.

Two monitors can be operated simultaneously at the outputs.

Note

Only one additional external monitor can be connected to MacBook devices with

M1 chipset.

Specication

• Connectors:

Input: 1 x USB Type-C™ male

Output: 2 x DisplayPort female

• Chipset: VMM5200

• DisplayPort 1.4 specication

• Supports HDR

• Maximum resolution (depending on the system and the connected hardware):

DisplayPort 1.1 or 1.2 Single-Stream Transport (SST):

up to 3840 x 1080 @ 60 Hz (VXP)

DisplayPort 1.2 Multi-Stream Transport (MST):

up to 2560 x 1440 @ 60 Hz or 3840 x 2160 @ 30 Hz (mirror or extended)

• Active converter, Single- / Multi-Stream Transport Hub (SST / MST)

• Transmission of audio and video signals

• USB bus powered

• Colour: black

• Cable length incl. connectors: ca. 20 cm

• Dimensions (LxWxH): ca. 61 x 49 x 12 mm

System requirements

• Mac OS 10.14.4 or above

• Windows 10/11

• PC or laptop with a free USB Type-C™ port and DisplayPort alternate mode or

• PC or laptop with a free Thunderbolt™ 3 port

Package content

• USB-C™ Splitter (DP Alt Mode)

• User manual

-3-

English

Safety instructions

• Protect the product against moisture

• Protect the product against direct sunlight

Installation

1. Ensure your computer system and monitors are powered o󰀨.

2. Connect the splitter to your video source.

3. Connect the outputs of the splitter to the monitors with optional cables.

4. Power on your monitors followed by your computer system.

Note

1. The product is a Multi-Stream Transport (MST) hub and supports the

extended desktop conguration of DisplayPort. In Windows, the connected

monitors are controlled individually, and can be combined into one large

display.

2. If the connected computer does not support MST, the ViewXpand™

technology is activated. Multiple monitors with the same resolution are

recognized as one single large display, allowing desktop display on multiple

external monitors, e.g. in Mac OS. The maximum resolution is

3840 x 1080 @ 60 Hz.

3. Please use short length and high-quality cables, especially for higher

resolutions.

Support Delock

If you have further questions, please contact our customer support

support@delock.de

You can nd current product information on our homepage: www.delock.com

Final clause

Information and data contained in this manual are subject to change without

notice in advance. Errors and misprints excepted.

No part of this user manual may be reproduced, or transmitted for any purpose,

regardless in which way or by any means, electronically or mechanically, without

explicit written approval of Delock.

Edition: 10/2022
