Owners Manual
DMD102/DMD104/DMD122/DMD124
Series
SUBWOOFER
Series
SUBWOOFER
FEATURES
About the Diamond Audio Experience:
Congratulations, you have just purchased the finest mobile audio products on the market to date.
At Diamond Audio, our products represent the latest advances in acoustic technology in sound
reproduction for your vehicle. Diamond Audio products are designed, developed, and engineered
using the latest innovative materials and components to provide the finest sound reproduction
possible. Every Diamond Audio product has been Klippel verified and tested to ensure the best
sounding and most reliable product on the market, if installed properly, Diamond Audio products
will provide many years of the ultimate listening experience.
Please note that prolonged exposure to sound pressure levels in excess of 100dB can cause
permanent hearing loss. Using Diamond Audio products can exceed that level so please exercise
restraint in its operation in order to preserve your ability to enjoy its high fidelity sound for many
years to come.
Diamond Audio recommends our products be professionally installed by an authorized Diamond
Audio dealer to achieve the best possible system recommendation and installation. This will
ensure a true Diamond Audio listening experience and sound you would expect from Diamond
Audio products. In doing this you will extend your warranty from one year to two years.
Go ahead, Hear the Music
• Black Polypropylene fiber weave cone
• High grade rolled edged 4 leg black powder coat stamped frame
• Oversized black chrome push terminals
• Black spider with woven tinsel leads
• Black PVC wrap around mounting gasket
• Vented pole piece for cooler operation
• Klippel Optimized motor and suspension symmetry
©2014 Diamond Audio. All rights reserved.
(a division of CV & DA Holdings, lnc.)

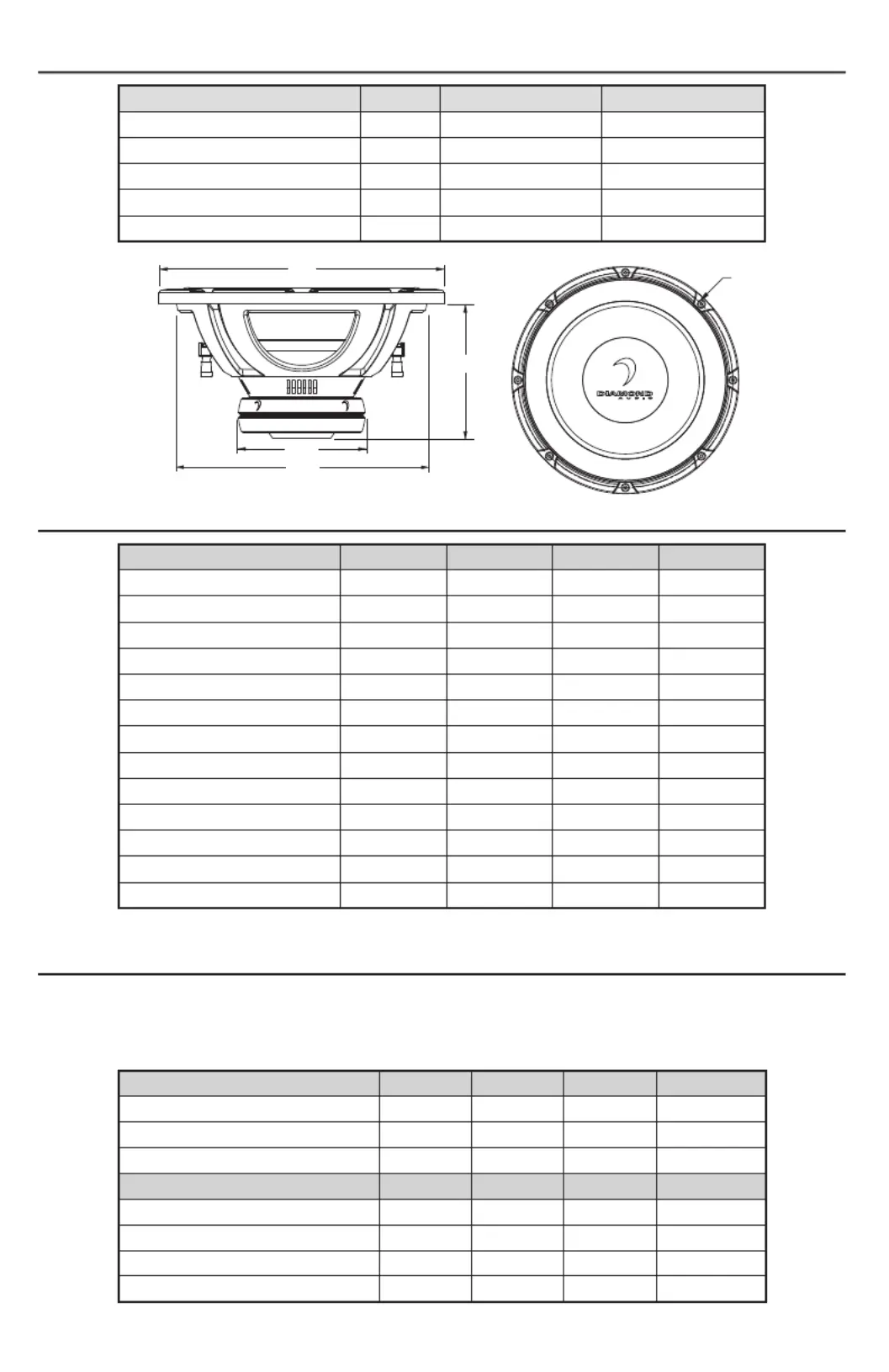

PHYSICAL DIMENSIONS
THIELE/SMALL PARAMETERS
ENCLOSURES
The enclosures below are offered as a suggestion only. Assistance from an authorized Diamond
Audio retailer is recommended. All volumes are gross internal, driver and vent displacement has
UnitDimension
DMD122 / DMD124
Total Diameter (A)
in. (mm)
in. (mm)
in. (mm)
in. (mm)
in. (mm)
5.93 (150.5)
11.10 (281.8)
12.57 (319.4)
DMD102 / DMD104
5.57 (141.4)
5.18 (131.5)
9.88 (251.0)
9.12 (231.5)
10.55 (267.9)
Mounting Diameter (B)
Hole Diameter (C)
Mounting Depth (D)
Magnet Diameter (E)
Parameter (unit)
SPL (dB)
Qms
Qes
Qts
Fs (Hz)
Vas (L)
Cms (mm/N)
Mms (g)
Sd (m
2
)
BL (T*M)
Xmax (mm)
Pwr (W) NOM/MAX
DMD102
83.8
3.85
4.5
0.62
0.55
33.0
26.5
0.18
131
0.0325
13.0
8.1
200/400
DMD104
84.0
6.70
6.0
0.68
0.61
36.0
23.6
0.16
124
0.0325
16.6
8.1
200/400
DMD122
86.0
3.85
6.0
0.75
0.67
33.5
98.3
0.14
157
0.050
13.0
8.1
200/400
DMD124
86.2
6.70
5.0
0.82
0.70
35.7
47.0
0.13
150
0.050
16.6
8.1
200/400
Re (Ω) [series]
DMD122delaeS
Vb (ft
3
1.00)
46 / .74CTQ/)zH( 3F
200)W( eP
Vented
Vb (ft
3
1.75)
30 / 30)zH( 3F/bF
3” x 10”]htgnel x .aid[ ).ni( troP
200
DMD104
0.45
50 / .78
200
1.25
36 / 31
3” x 10”
200
DMD102
0.45
54 / .70
200
1.25
36 / 31
3” x 10”
200
DMD124
1.00
43 / .85
200
1.75
30 / 30
3” x 10”
200)W( eP
been accounted for. The use of a 30hz sub-sonic filter is recommended.
(C)
(B)
(E)
(D)
(A)
11.90 (302.6)
5.57 (141.4)
©2014 Diamond Audio. All rights reserved.
(a division of CV & DA Holdings, lnc.)
