Seite 1/8
S eseriS eseri
DMDDMD
SPEAKER
Owners Manual
DMD35/DMD42/DMD52/DMD652/DMD653/DMD683/DMD693
DMD69V/DMD65C/DMDTAK
©2014 Diamond Audio. All rights reserved.
(a division of CV & DA Holdings, lnc.)
FEATURES
ABOUT THE DIAMOND AUDIO EXPERIENCE
• Unique reinforced polypropylene cone with internal dampening
• 20mm silk dome tweeter with Ferro fluid cooling
• Composite ABS frame design
• External 6dB/octave SQ matched crossover (used on DMD65C)
PARTS LIST
DMD42, DMD52, DMD652, DMD653, DMD683, DMD693, D694,DMD65V,DMD69V
(2) DMD Coaxial Speakers
(2) Mounting Gaskets
(1) Mounting Hardware Kit
(2) DV Convertible Speakers
(2) DV Model Specific Crossovers
(2) Mounting Gaskets
(1) Mounting Hardware Kit
DMDTAK, DMD65C, DMD365C
(2) DMD Component Speakers (except DMDTAK)
(2) DMD Model Specific Crossovers
(2) Mounting Gaskets
(1) Mounting Hardware Kit
(2) DMD Component Tweeters
Diamond Audio Technologies.
(2) DMD tweeters
DMD35
(2) DMD Component Speakers
(2) Mounting Gaskets
(1) Mounting Hardware Kit
Congratulations, you have just purchased the finest mobile audio products on the market to
date. At Diamond Audio, our products represent the latest advances in acoustic technology in
sound reproduction for your vehicle. Diamond Audio products are designed, developed, and
engineered using the latest innovative materials and components to provide the finest sound
reproduction possible. Every Diamond Audio product has been Klippel verified and tested to
ensure the best sounding and most reliable product on the market, if installed properly,
Diamond Audio products will provide many years of the ultimate listening experience.
Please note that prolonged exposure to sound pressure levels in excess of 100dB can cause
permanent hearing loss. Using Diamond Audio products can exceed that level so please
exercise restraint in its operation in order to preserve your ability to enjoy its high fidelity sound
for many years to come.
Diamond Audio recommends our products be professionally installed by an authorized
Diamond Audio dealer to achieve the best possible system recommendation and installation.
This will ensure a true Diamond Audio listening experience and sound you would expect from
Diamond Audio products. In doing this you will extend your warranty from one year to two
years.
Go ahead, Hear the Music

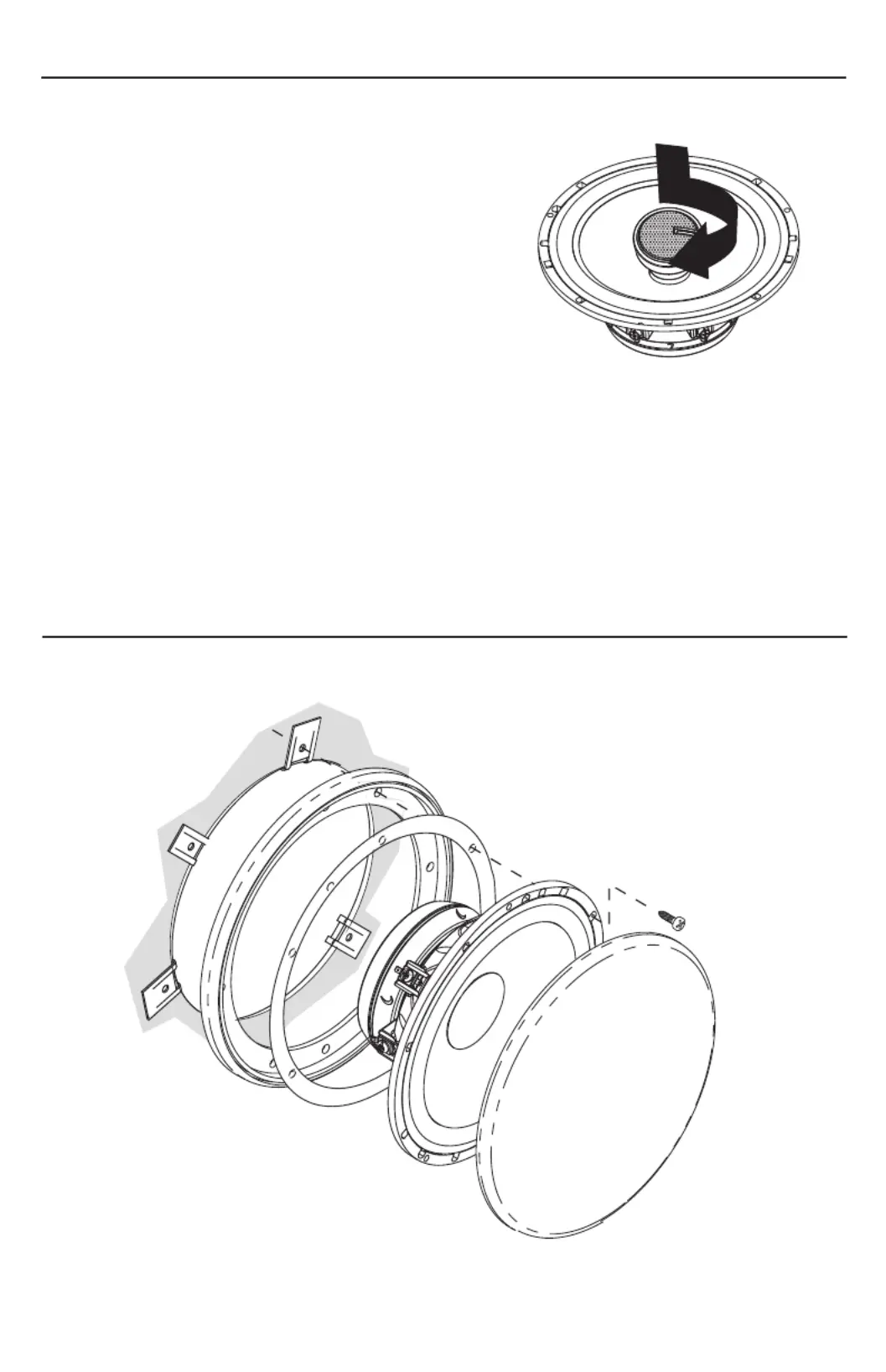

You have the option of configuring your speakers as a
coaxial system (tweeter attached) or a component system
(tweeter separate). If your choice is to use as a coax then
you will need to attach the tweeter to the midrange. Locate
the supplied tweeter post support and attach the tweeter as
show. Remove the rubber boot from the midrange; guide the
tweeter wires down through the middle of the midrange.
Guide the tweeter wires so that they lay in the groove of the
inside of the rubber boot as it replaced. Attach wires to the
proper terminals.
©2014 Diamond Audio. All rights reserved.
(a division of CV & DA Holdings, lnc.)
MID-BASS SPEAKER MOUNTING
TWEETER CONFIGURATION (DMD65V and DMD69V Optional)
