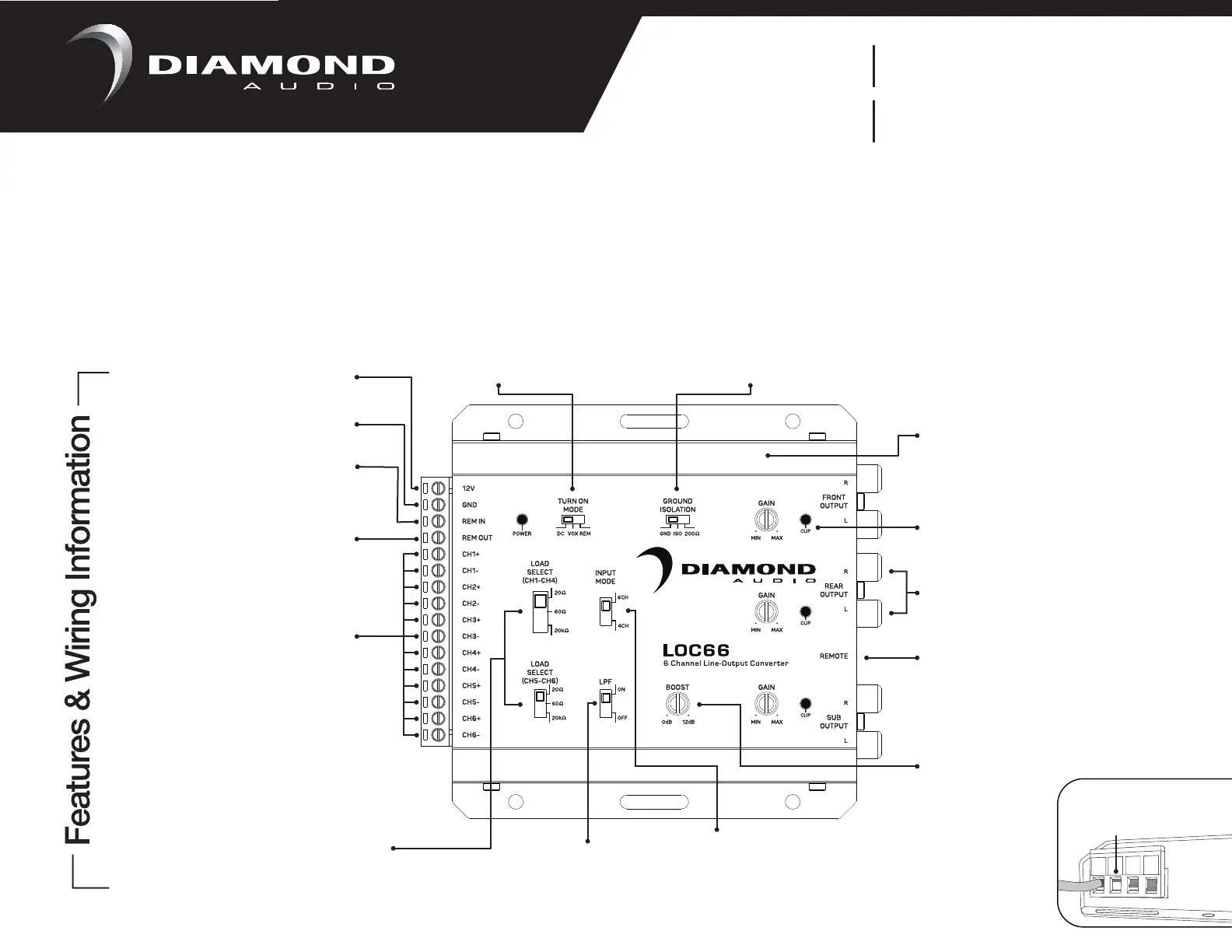

LOC66

6 Channel Active

Line-Output Converter

InstallationGuide

TURN-ON MODE

Selectable: DC / REM, Default: DC

Select DC if using speaker inputs

for turn-on, or REM if using REM IN

REM IN

Remote turn-on input (+)

GND

Connect to solid

chassis ground

12V

Connect to a fused

+12V constant source

GROUND ISOLATION

Selectable: GND / ISO / 200Ω, Default: ISO

If ground / engine noise is present, switch

between other settings

Use CH1-CH4 for 4CH Mode

SPEAKER SIGNAL INPUTS

Connect to head unit or

amplifier speaker outputs

REM OUTREM OUT

GAIN

Variable: -27.3dB - +3.2dB

Gain adjustment of output signal

REMOTE

Remote Level Control for

Sub Output

INPUT MODE

Selectable:

4CH or 6CH (LOC66)

4CH or 8CH (LOC88)

Set to 4CH mode if only

using CH1-CH4 inputs

BOOST

Variable: 0dB - 12dB

Must have LPF On to

activate Bass Boost

@45Hz to Sub Channels

LOAD SELECT

Selectable: 20Ω / 60Ω / 20KΩ

Default: 20KΩ

For factory audio systems

requiring a resistance load to

output audio, select 60Ω first,

then 20Ω. All others use 20KΩ.

The Diamond Audio Active Line Output converters are high-quality 6-channel (LOC66) or 8-channel (LOC88) input/output devices that can

retain the signal integrity of your OEM system and allow it to integrate seamlessly with aftermarket amplifiers. Gain Controls equipped with

Clipping LEDs, Selectable Ground Modes, and OEM Load features, the LOC66 guarantees a clear and noise less signal for your audio

system. Built-in OEM Load Resistors allow for use in vehicles that require these to keep the sound system active while not requiring them to

be added separately.

LPF

Low Pass Filter

Low pass crossover @

250Hz for SUB channels

CLIP

Indicates signal clipping.

Slight LED flickering is acceptable.

Solid LED is undesirable, gain is too high

RCA SIGNAL OUTPUTS

Connect to amplifier inputs

FOR EASIER INSTALLATION

OPEN TERMINALS COMPLETELY

BEFORE INSERTING WIRE

OPEN

LOC88

8 Channel Active

Line-Output Converter

*LOC66 shown for illustration purposes

Remote turn-on output (+)

LOC66/LOC88 will provide a

+12V Remote Output using

DC Signal Sense from CH1

and CH3 channel inputs
