Description
Bridge X_MC is composed of the various types of input / output, which can convert a source into almost
all types of a demanded output. The supported input / output are HDMI, VGA, YPbPr (Component), CVBS
(Composite), SDI.

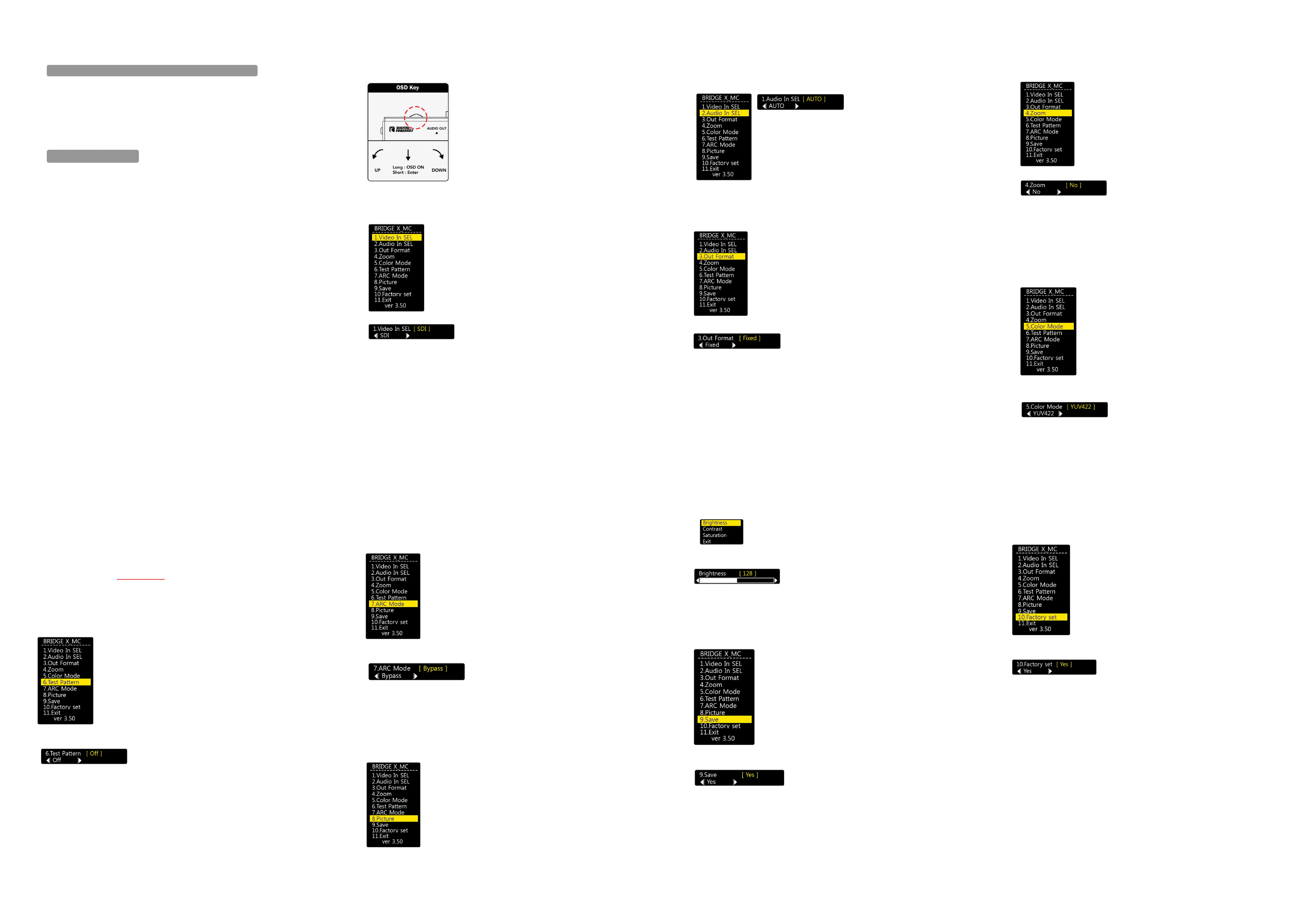

Moreover, its OSD provides the user-convenient operations as Input selection, Resolution & Audio
Setting, and so on. The OSD operation is made by using the switch located on the top left of the product.
It is also available to control through RCP.
Main Functions
• Up/Down/Cross/Scan converter
• Audio Mux Function
• HDMI in/output
• Audio Mux Function
• Audio DeMux Function
• User selectable output format
• User selectable output ARC
• Multiple standard video/audio signal
(CVBS, AES/EBU, SDI, VGA, COMPONENT, Analog Audio, HDMI)
• Remote Control Support (option)

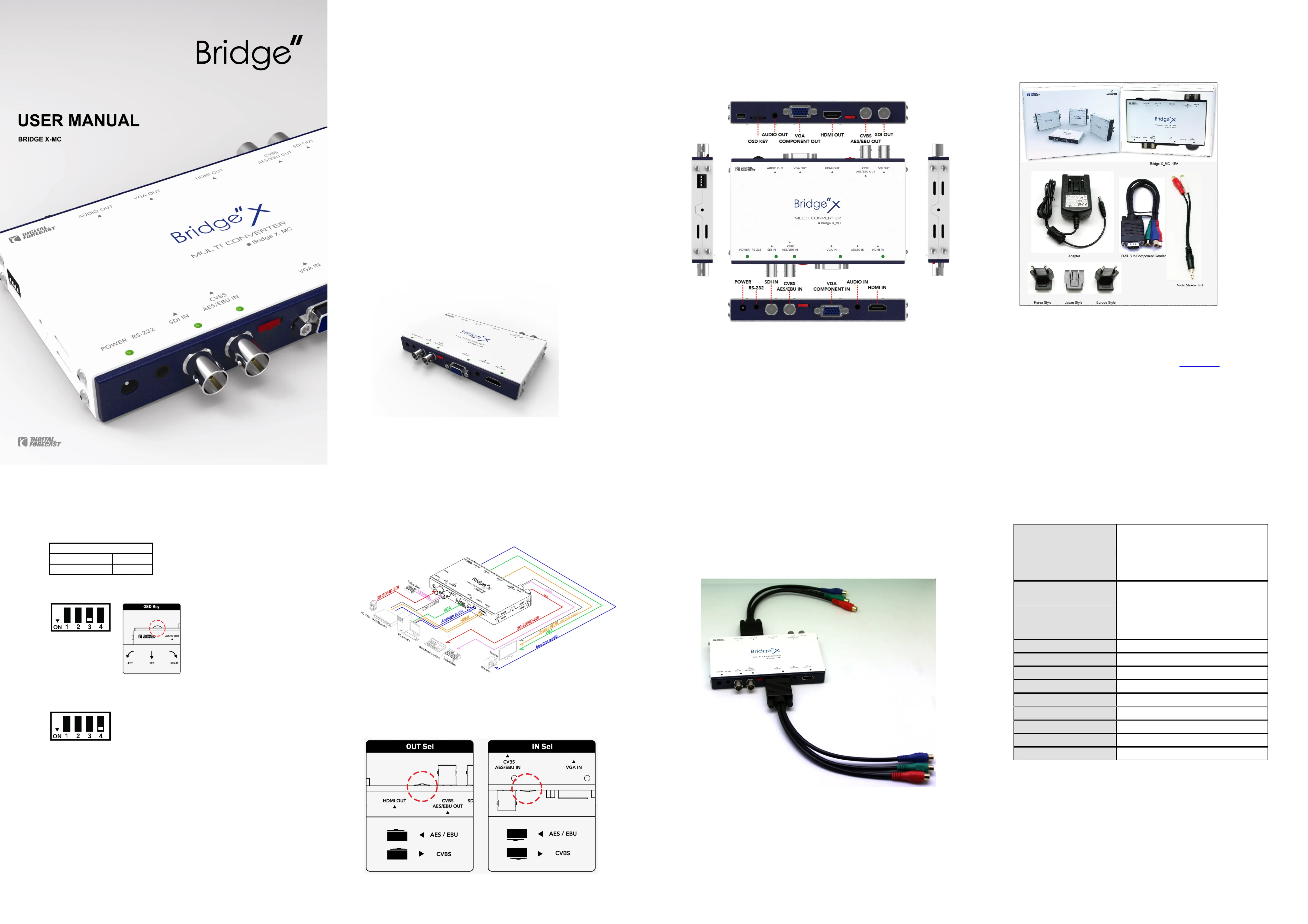

User’s Manual
3
Product Composition
Bridge X_MC
4
Product Components
Before use, please make sure that the following components are properly provided.
※ The Product Configuration or Specification may be changed without prior notice in purpose of
performance improvement.
※ In case of needing an additional Purchase of the components according to circumstances, please
contact the Manufacturer (Refer to the Digital Forecast Website : www.dfcast.co.kr
)
User’s Manual
5
How to use DIP S/W
Dip Switch Control
Upward Position OFF
Downward Position ON
- When the Third Dip S/W is "ON" like the lower-left figure, it enables the OSD key to select an Input type.
- In case of needing to activate "Fixed Mode", please turn "ON" the Fourth Dip S/W like below.
Configuration
X_MC is available to use like the below configuration.
CVBS or AES / EBU can be selected by the RED-marked switch located in the
below figure which describes how to select.
User’s Manual
7
Component Cable Connection
Component Input is available to use by means of connecting to VGA port after
applying the Conversion Gender of "D-SUB to Component". The use of
Component Output is also available by the same method.
Specifications
IN PUT CONNECTER
1 x BNC 75Ω[SDI]
1 x BNC 75Ω[CVBS or AES/EBU]
1 x D-SUB[VGA or Component]
1 x Phone Jack[Audio L/R]
1 x HDMI
OUT PUT CONNECTER
1 x BNC 75Ω[SDI]
1 x BNC 75Ω[CVBS or AES/EBU]
1 x D-SUB[VGA or Component]
1 x Phone Jack[Audio L/R ]
1 x HDMI
SDI SD-SDI, HD-SDI, 3G-SDI
Audio sample clock 48Khz
HDMI Version 1.3
IN/OUT Resolution Appendix
Remote Control Phone Jack[RS-232]
Firmware Update USB MINI B-Type
Power Supply DC 12V 1.2A
Dimension (WxHxD) 144 x 81 x 19.6(mm)
Weight 210 g
