Seite 1/4
DWClarity.com
HD Video Surveillance Made Easy.™

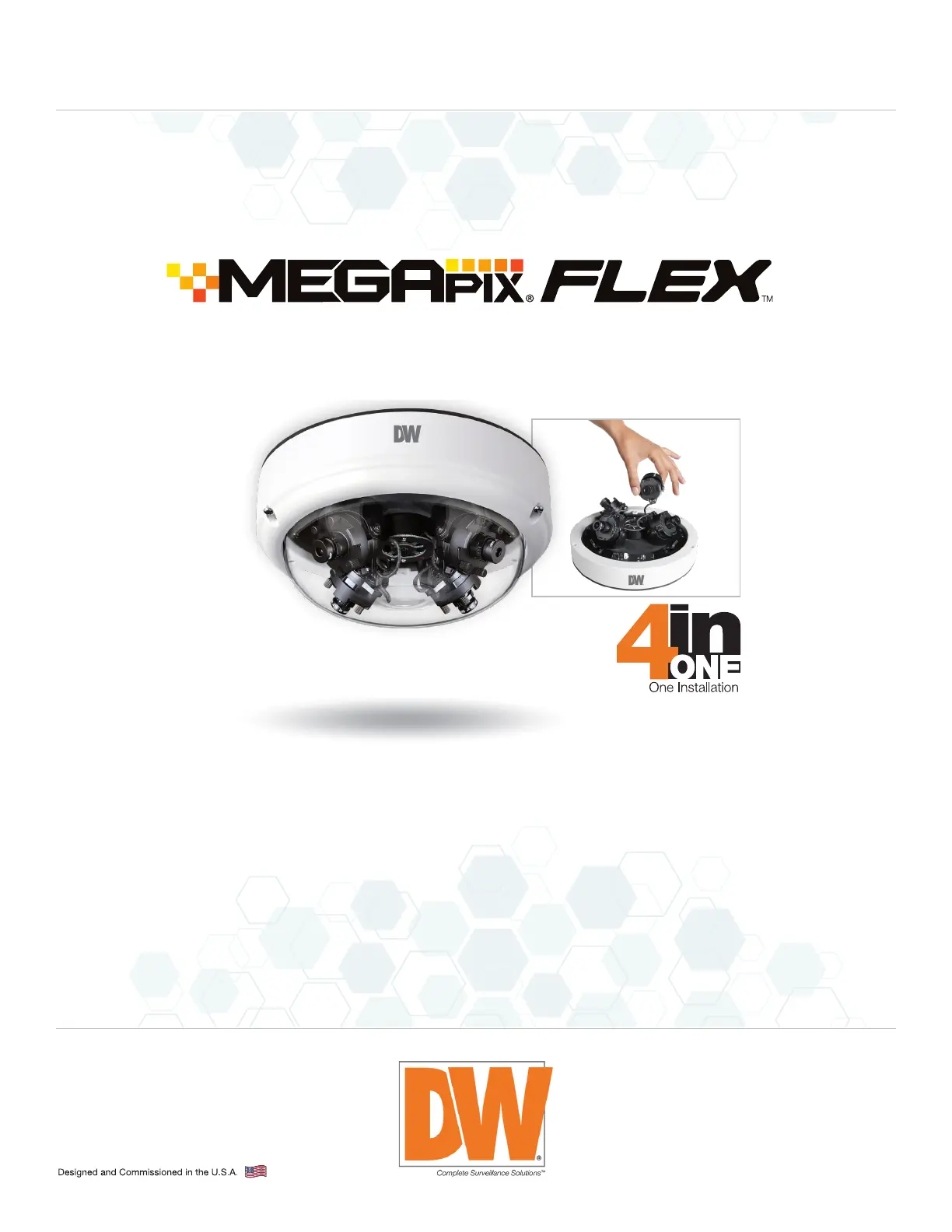

Configurable Multi-Sensor IP Cameras
4-in-1 Configurable Multi-Sensor IP Camera
4-in-1 Configurable Multi-sensor IP Camera
• 16MP 1/3” image sensors at
real-time 30fps
• 360° and 180° flexible
panoramic view IP camera
• *Available as a complete system
with 4x 4mm lens modules
or camera and lenses sold
separately.
• Four cameras in one installation
• Flexible sensor positioning
with magnets
•
True Wide Dynamic Range (WDR)
• PoE injector included
• Dual codecs (H.264, MJPEG)
with simultaneous dual-stream
• Two-way audio
• Easy image alignment and
stitching
• Smart DNR™ 3D digital
noise reduction
• True day/night with mechanical
IR cut filter
• Auto gain control (AGC)
• Auto white balance (AWB)
• Motion detection
360°, 270° and 180° configurab
views at real-time 30fps
Configurable Multi-Sensor IP Cameras
Fixed Lens Options 4-in-1
Installation Flexible Sensor Install
• Micro SD/SDHC/SDXC class 10
card (card not included)
• Alarm sensor input
• Relay output
• Web server built-in
• ONVIF conformant, profile S
• PoE class 4 and DC12V
• IP66 certified weather and
tamper resistant
• 5 year warranty
Customizable lens options
The camera comes as a complete solution
including 4x 4mm fixed lenses installed or is
fully customizable with camera base unit plus
selection of up to 4 sensor/lens modules.
Flexible sensor positioning with magnets
Users can easily place each of the four sensors independently
in any configuration around the camera’s magnetic base. Use
360° installation to monitor a hallway intersection or to provide
a 270° view at a building corners or in large rooms. A 180° install
is perfect to monitor an assembly line.
MEGApix® Flex™ 16MP multi-sensor configurable IP cameras reduce total system cost by providing four 4MP
CMOS sensors in one housing and installation. The Flex™ camera produces four video streams at real-time 30fps.
Zoom-in for forensic-quality details with DW Spectrum® IPVMS.
Features:
* See next page for details
2
4-in-1 User-Configuration Views
MEGApix® Flex™ cameras can be personalized to match any application and any field of view (FoV) from a
180° or 270° panoramic view installation, to a full 360° hemispheric FoV, all with a single camera installation.
The camera comes as a complete solution including 4x 4mm fixed lenses installed or is fully customizable
with camera base unit plus selection of up to 4 sensor/lens modules. Modules DO NOT need to be same lens
size. Modules available with 2.8mm, 4.0mm, 6.0mm or 8.0mm lenses. Camera base unit and lens modules are
sold separately.
Flexible configurations:
* Lens Configuration Options with Corresponding Part Numbers
Configurable Multi-Sensor IP Cameras
360º Parking Lot Installation 360º Hallway Installation
Sensor’s max tilt: 70º
270º Corner Installation
14
32
180º Assembly Line Installation
PART NUMBER LENS OPTIONS
DWC-PVX16W4 4x 4mm lens modules
DWC-PVX16W
Base camera and add up to
four lens modules: 2.8mm,
4.0mm, 6.0mm or 8.0mm.
PART NUMBER LENS OPTIONS
DWC-
PVXLMOD28 2.8mm lens module
DWC-
PVXLMOD4 4.0mm lens module
DWC-
PVXLMOD6 6.0mm lens module
DWC-
PVXLMOD8 8.0mm lens module
Fixed Lens modules:
Produktspezifikationen
| Marke: | Digital Watchdog |
| Kategorie: | Überwachungskamera |
| Modell: | MegaPix Flex DWC-PVX16W2 |
