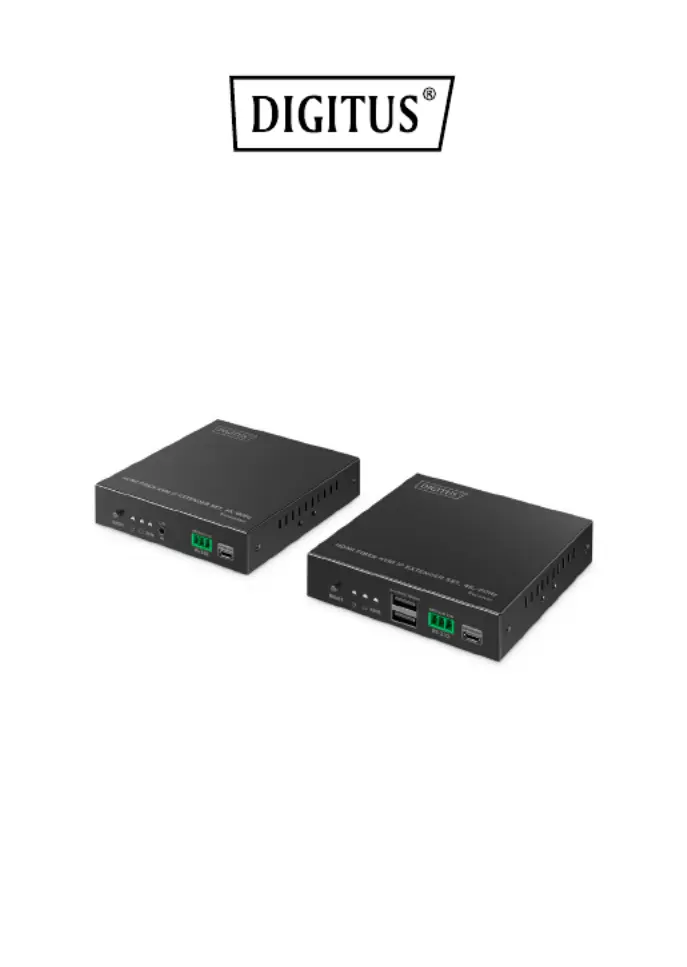

HDMI Fiber KVM IP
Extender Set, 4K/60Hz
Installation Guide
DS 55 DS 34- 348, -55 9
2
Table of Contents
1. Introduction ------------------------------------------------------- 3
2. Main Features ----------------------------------------------------- 4
3. Specification ------------------------------------------------------- 5
4. 55348) Package Content -(DS 7----------------------------------
5. Interfaces----------------------------------------------------------- 8
5.1 Transmitter (TX) ---------------------------------------------- 8
5.2 Receiver (RX) ------------------------------------------------ 10
6. 12 Installation Requirements -----------------------------------
7. Wall Mounting -------------------------------------------------- 13
8. Installation Procedures --------------------------------------- 13
8.1 Connection Diagrams ------------------------------------- 13
8.2 Connection Instructions ---------------------------------- 15
8.3 RS- 232 function -------------------------------------------- 16
9. Questions and Answers --------------------------------------- 17
Important Safety Instructions:
• Do not expose this device to rain/liquids or place it near
water. Any liquid that goes into the device may cause a
failure, fire, or electric shock.
• Never insert anything metallic into the open parts of this
device. This may cause a danger of electric shock.
• Do not place this device near or over a radiator or heat
register, or where it is exposed to direct sunlight.
• The device should be repaired only by a qualified
technician.
• If a third-party power supply is used, please ensure that
the power supply specifications meet the product
requirements.
3
1. Introduction
The HDMI Fiber KVM Extender Set enables high resolution AV -
signal transmission in 4K/60Hz (3840x2160p) over long
distances using fiber optic cables. Both Singlemode (SM) and
M - -ultimode (MM) cables are supported. In a point to point
connection, signals can be transmitted loss-free over
distances of up to 40 km (S Minglemode) or 300 m ( ultimode).
In addition, the device allows a point- -to multipoint
connection with the option of distributing signals to up to
253 receivers (displays).
Thanks to the support of 1G network switches and the use of
the existing 1G infrastructure, signal transmission over
unlimited distances is possible. This is achieved by cascading,
allowing the system to be expanded flexibly. For projects
with many displays, the extender set can be expanded with
additional receivers (RX), whereby additional receiver units
are available separately (model: DS- 55349).
The system is compatible with LC and SC SFP modules,
whereby the appropriate SFP modules are available
separately (LC Singlemode (SM): DN- M81002, LC ultimode
(MM): DN 81000). The option of using both - Singlemode and
Multimode fiber optic cables ensures a high degree of
flexibility for different areas of application.
Another outstanding feature of the extender is the KVM
function on the receiver side, which enables the connection
of a mouse and keyboard to control the signal source directly.
In addition, a 3.5 mm stereo connection is available for
