EN

Original Instructions

Version 1 – February 2022

21714, 21715, 21721, 82631, 21723, 21744, 03711

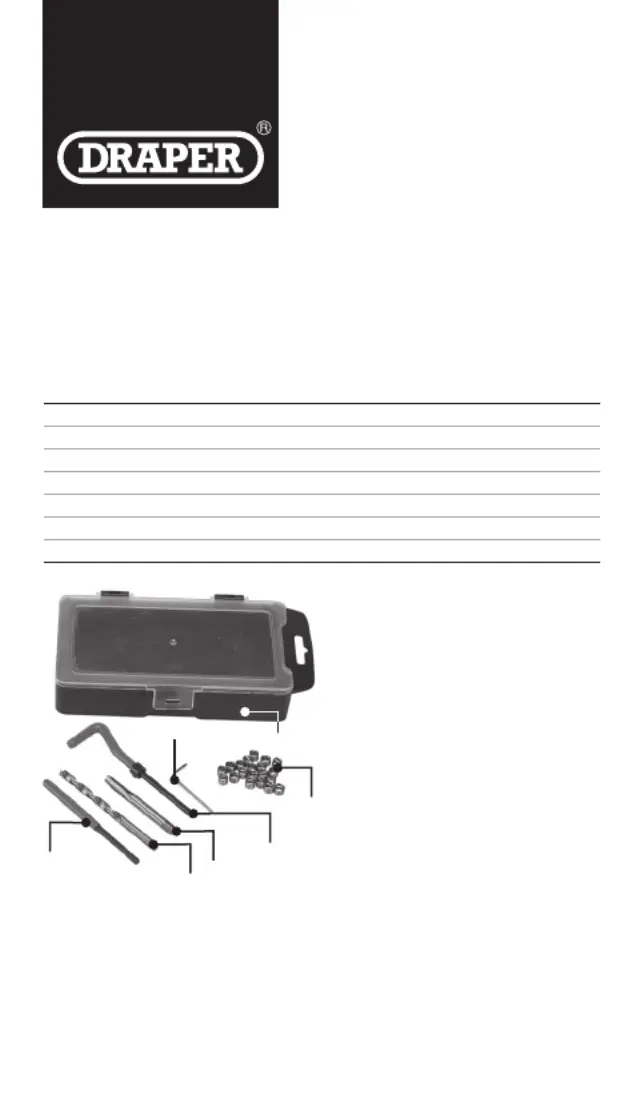

METRIC THREAD

REPAIR KIT

Stock No.Part No.Tap size

Drill bit size

(mm)

Hex key size

(mm)

Thread inserts

included

21714DHCK-AM5 x 0.8mm5.2220

21715DHCK-AM6 x 1.0mm6.2220

21721DHCK-AM8 x 1.25mm8.3220

82631DHCK-AM9 x 1.25mm9.3220

21723DHCK-AM10 x 1.5mm10.3210

21744DHCK-AM12 x 1.75mm12.4210

03711DHCK-AM14 x 1.25mm14.3210

(E)

(A)

(B)

(F)

(D)

(C)

A. 1 x HSS drill bit

B. 1 x HSS

tapping tool

C. 1 x Hex key

D. 1 x Insert tool

E. 1 x Lug

breaking tool

F. Thread inserts

G. 1 x Case

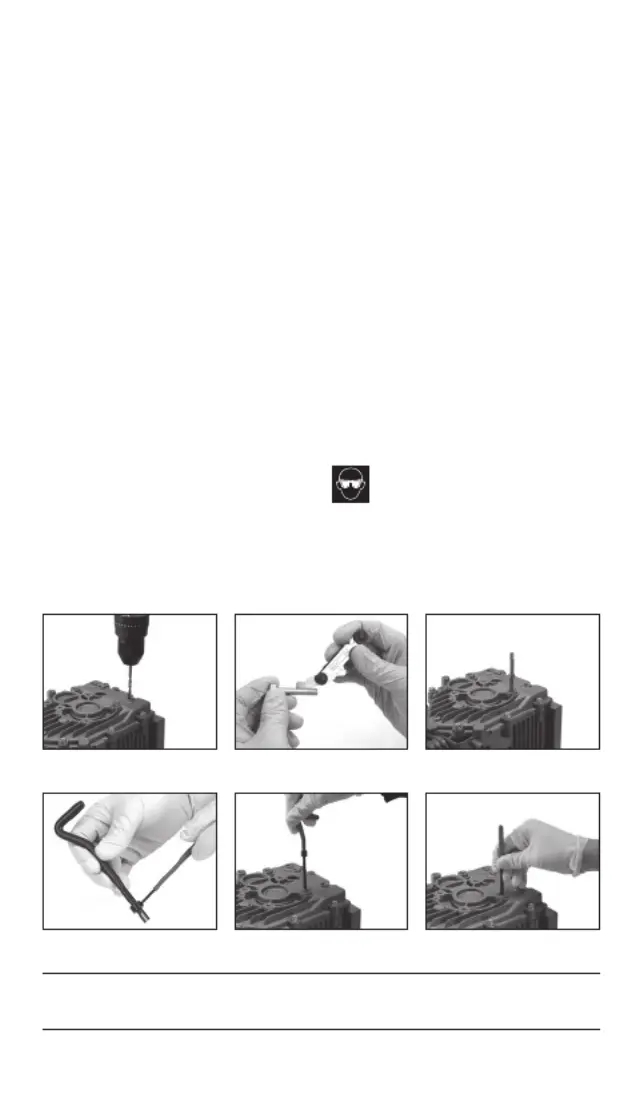

1. Health and Safety

Information

• Inspect the product thoroughly for

damage before every use; use it if DO NOT

it is damaged.

• ALWAYS wear eye protection.

• This manual is supplied as a guide only.

 −Assess any other precautions that

must be taken before use with each

specic workpiece.

 −Where the workpiece is part of a larger

tool or machine, refer to the

manufacturer’s manual for the correct

procedure for use.

• Keep the work area clean and well lit,

with bystanders at a safe distance.

• Secure the workpiece during operation.

WARNING! This product requires the use of

additional tools (not supplied). Read and

adhere to all Health and Safety information

and operating instructions associated with

the chosen tools before use.

Read this manual in full before attempting to use this product and retain it for later use.

Always use the latest version of the manual.

(G)
