220-240VLVC-IV Low-Voltage Control Module

Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385

draperinc.com | 765.987.7999 | 800.238.7999

© 2023 All Rights Reserved

|

FORM: LVCIV_220_Wiring23

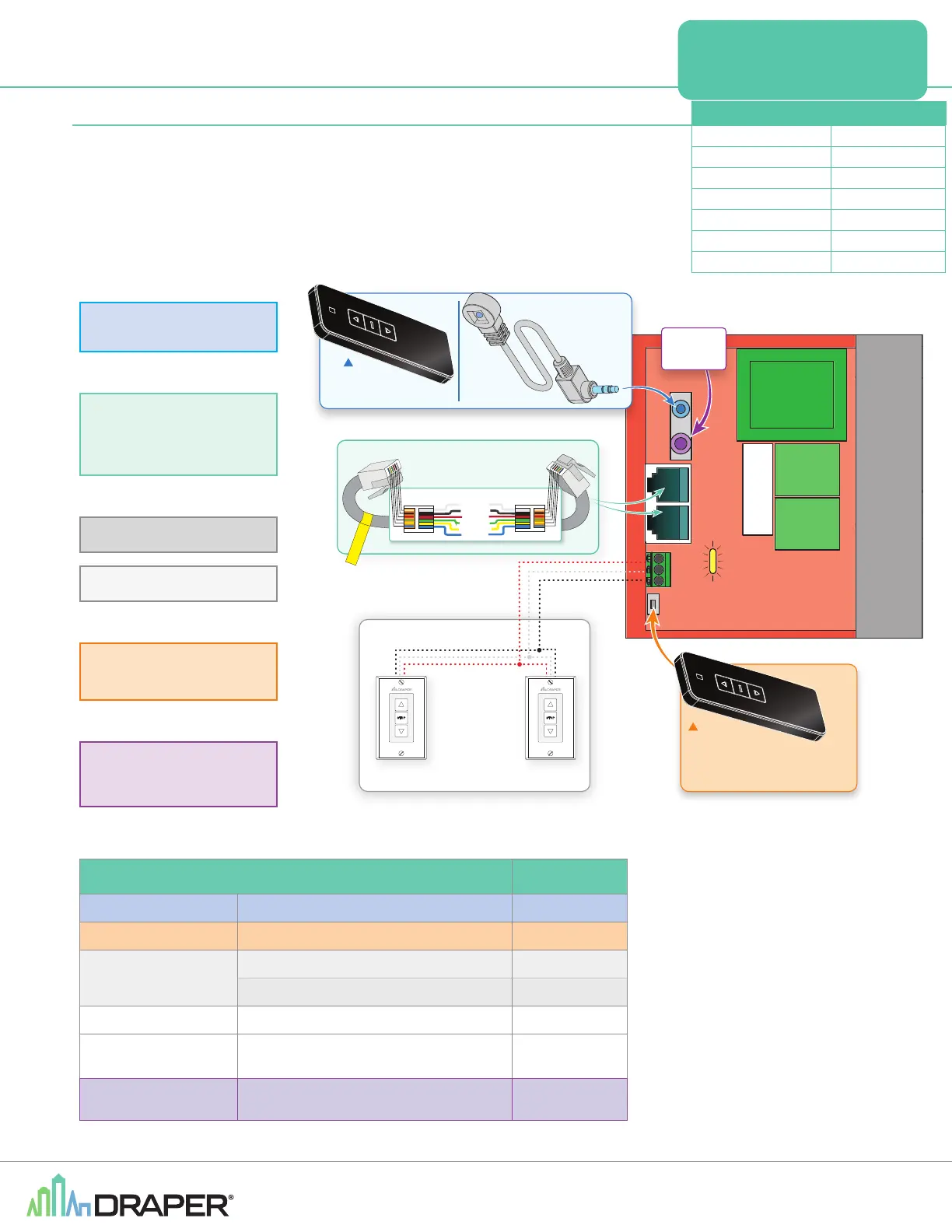

WIRING

INSTRUCTIONS

Uses

IR (Infrared)

Remote Control

RJ25 Ports for

RS-232/RS-485

Communication

Low-Voltage Wall Switch

“Dry” Contact Closure

RF (Radio Frequency)

Remote Control

3rd Party Control

Control systems employing “dry”

contacts or Serial Communication.

FUSE - 3.15 AMP

250 VAC 5x20mm

Low-Voltage wiring by others

Factory wiring

DASHED WIRING BY ELECTRICIAN

SIGNAL LED

LVC-IV

Radio Frequency

(RF) Transmitter Part#: 121226

Operating range is 250’ (76M) open distance.

Each time the RF signal penetrates a wall,

distance will fall off 50%.

RF RECEIVER

BUTTON

RS232/485

Inputs/Outputs

(Ports are identical)

RJ25

Connector

RJ25

Connector

ELECTRICALLY STRAIGHT DATA CABLE

6 - WHITE - 6

5 - BLACK - 5

4 - RED - 4

3 - GREEN - 3

2 - YELLOW - 2

1 - BLUE - 1

NOTICE: Remove this test

lead before installation.

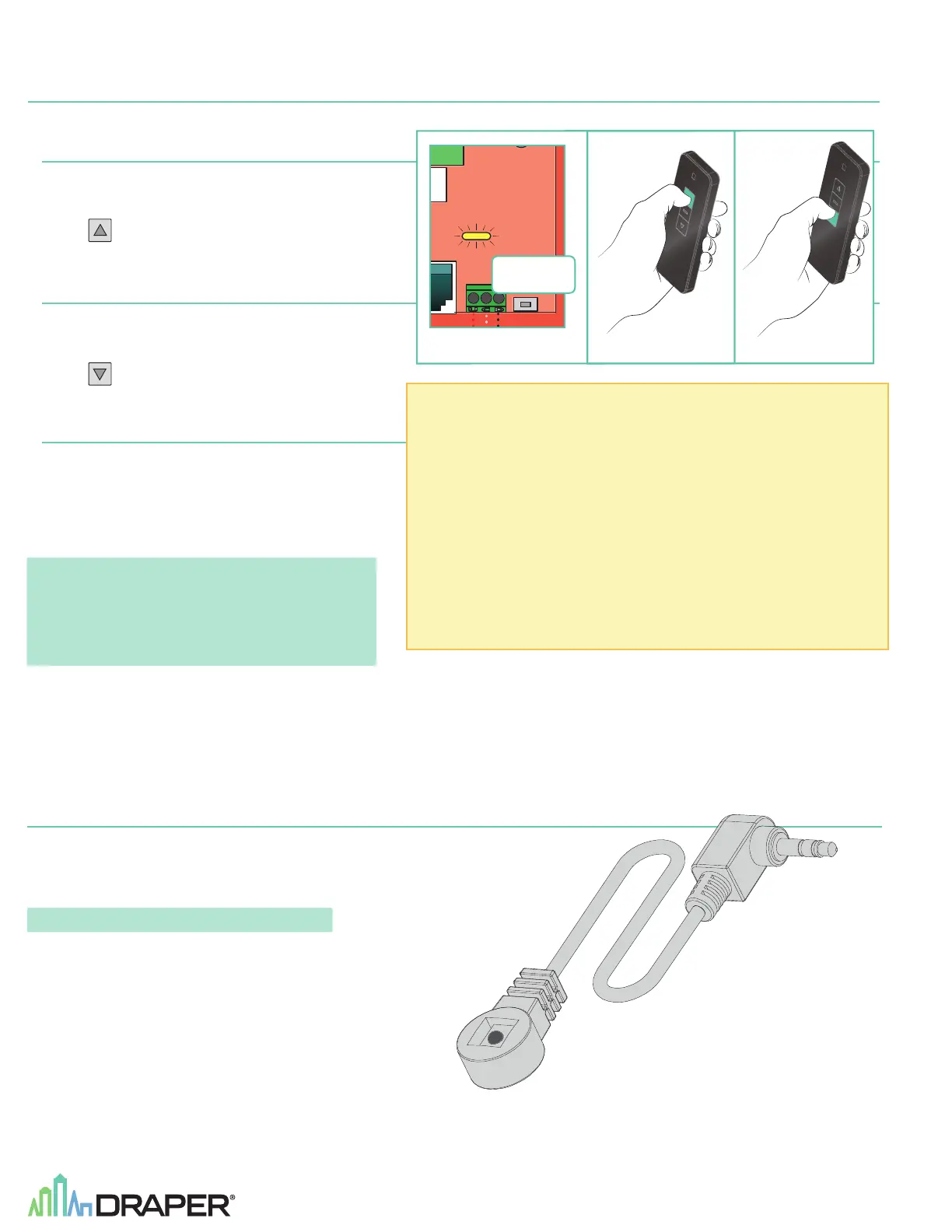

IR Transmitter

Part#: 121227

Transmitter range: 26’ (7.9M)

IR Eye

Input

IR Eye

Low Voltage

Trigger

4-28 VDC

LVC-S: 3 Button Wall Switch(es) Part #: 121225

SWITCH B

SWITCH A

Low-Voltage

Wall Switch(es)

Dry Contact Closure

The 230V LVC-IV also used as a Single-Pole, Double-Throw dry closure to control equipment by the same means listed above.

If you encounter any difficulties installing or servicing

your LVC-IV, call your dealer or contact Draper, Inc.

Section 1 - Overview

The LVC-IV module contains a 3-screw terminal block for a low-voltage wall switch,

an IR receiver jack, a built-in RF receiver, two-RJ25 ports for RS232

/

RS485,

a low-voltage relay port with cable and a user-serviceable 3.15 Amp fuse.

Compatible components for each are listed below.

Technical Specifications:

Power Supply:230V / 50Hz

Temperature:-40° C – 85° C

Frequency:433 MHz

Power:<300W

Transmit Power: <10mW

Sensitivity:-110dBm

Fuse:3.15 Amp

COMPATIBLE COMPONENTS PART NO.

IRT / RInfrared Remote Control (Connects to IR Port)

121228

WRT / R Radio Frequency Remote (antenna built in)

121226

LVC-S

Low-Voltage Wall Switch.

121225

Low-Voltage Wall Switch w/ Locking Cover

121232

KS-1Power Supply Key Switch.

121017

SP-KSM

3-position Momentary Key Switch

(Please Note: 'Stop' won’t work)

121022

Auxillary Control

Control systems employing “dry” contacts

or Serial Communication.

By Others
