Original Instructions
Version 2 – November 2024

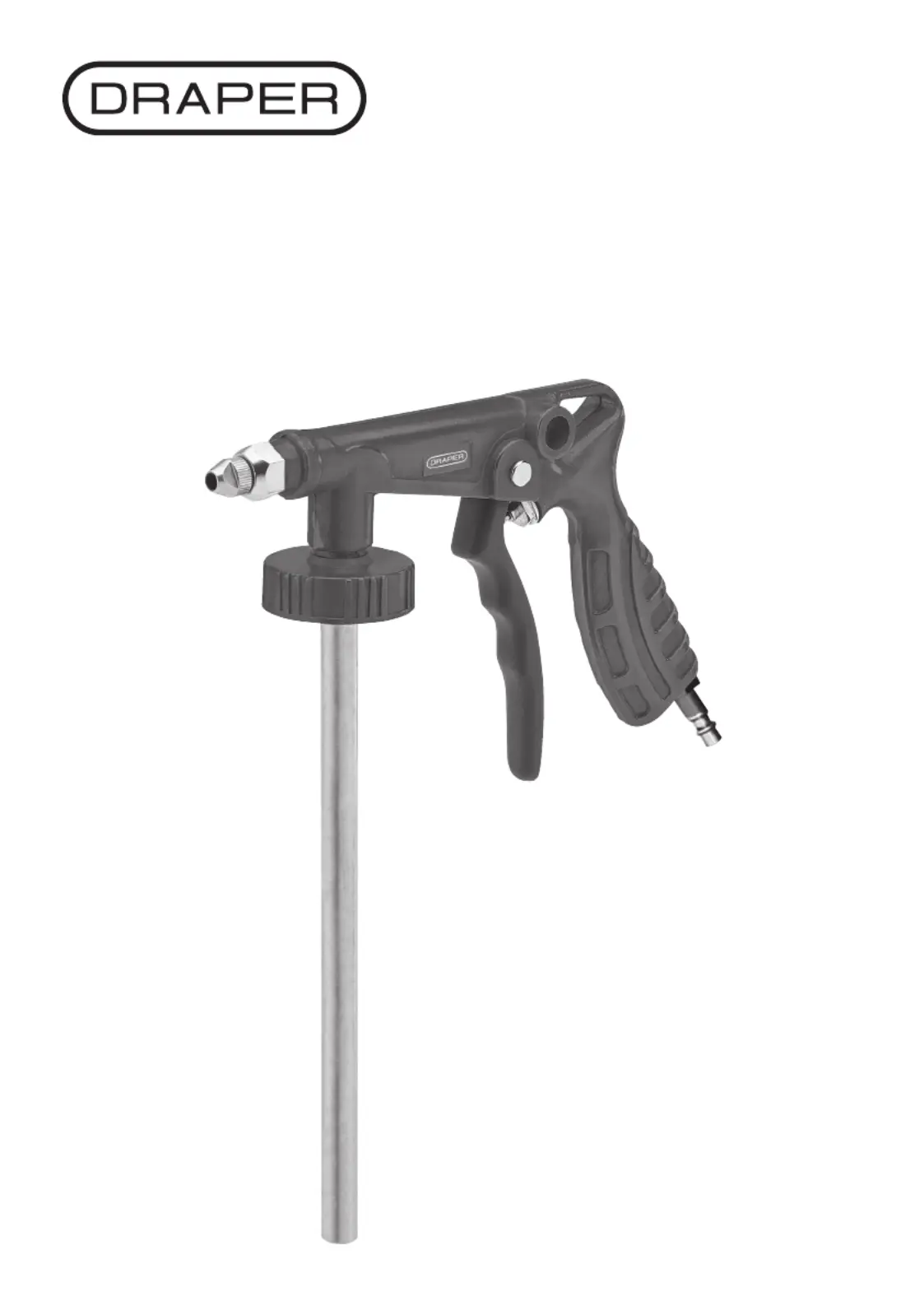

FLEXIBLE NOZZLE UNDERBODY
COATING GUN
– 2 –
1. Introduction
User Manual for: Flexible Nozzle Underbody Coating Gun
Stock No: 15875
Part No: DAT-UCG
1.1 Revisions
Version 1: April 2021
First release
Version 2: November 2024
2. Intended Use
This underbody gun is designed to be used to rustproof
vehicle chassis and is suitable for use with various
primers and sub coat paints. It is suitable for use with
most types of 1 litre coating tins. It is supplied with a ¼”
BSP connector and 500mm exible nozzle for accurate
spraying and for tting into conned spaces such as
wheel arches.
Any other application beyond the conditions established
for use will be considered misuse. Draper Tools accepts
no responsibility for improper use of this product.
3. Specication
Stock No. 15875
Part No. DAT-UCG
Air inlet ¼” BSP
Air Pressure
Rated 30 – 100psi
Maximum 116psi
Air Consumption 270L/min
Recommended Air Pressure 2 – 7bars
Net Weight 340g
4. HealthandSafety
Information
Important: Read all the Health and Safety instructions
before attempting to operate, maintain or repair this
product. Failure to follow these instructions may
result in injury or damage to the user, the product or
the workpiece.
4.1 GeneralHealthand
SafetyPrecautions
• Only authorised personnel who have carefully read
and understood this manual may operate, adjust and
repair this product.
• Observe all standard safety precautions and good
practices when working with air tools.
− Always wear adequate eye protection and a face
mask when using this product. Some products
suitable for use with this product may contain
chemicals or toxic components. Avoid inhalation
or contact with materials used with this product.
If contact occurs, seek medical advice as soon
as possible.
− Wear protective gloves while using this product.
• Keep your work environment clear and well-lit, with
bystanders at a safe distance.
• Use this product ONLY in well-ventilated areas to
avoid the build-up of fumes and allow paint particles
to disperse.
• Keep out of reach of children.
• Before every use, inspect the coating gun for missing,
broken, loose or corroded parts.
Important: DO NOT use this product if it is damaged
in any way. Contact Draper Tools to discuss repair and
replacement options.
• Ensure that all accessories and attachments are
securely tightened before use.
• Use the product only in the manner instructed in
this manual.
• DO NOT modify this product in any way.
• ONLY use spare parts supplied by Draper Tools.
• Stay alert at all times; use this product DO NOT
while tired or under the inuence of alcohol, drugs or
other medication
4.2 AdditionalSafetyInstructions
forAirTools
• Compressed air can cause severe injury. turn ALWAYS
o and disconnect the air supply before making any
adjustments to the product or leaving it unattended.
• NEVER direct this product towards yourself or others.
• Ensure that compressed air is not blocked by or in
contact with any part of your body.
• ONLY use clean, dry and regulated compressed air.
WARNING! NEVER use oxygen, combustible
gases or other bottled gases as a supply for this
product. Use of these substances may cause the
product to explode.
• ALWAYS check for and replace damaged or loose
hoses and ttings.
• Ensure that the product is compatible with the air
supply before use.
• Ensure all connections are securely tightened.
• DO NOT exceed the maximum stated air pressure.
• DO NOT obstruct the ability of the trigger to release
once depressed.
• NEVER carry the tool by the air line.
• spray ammable substances near open ames NEVER
or sources of heat and ignition. DO NOT smoke in the
vicinity of this product.
– 3 –
(2)
(3)
(4)

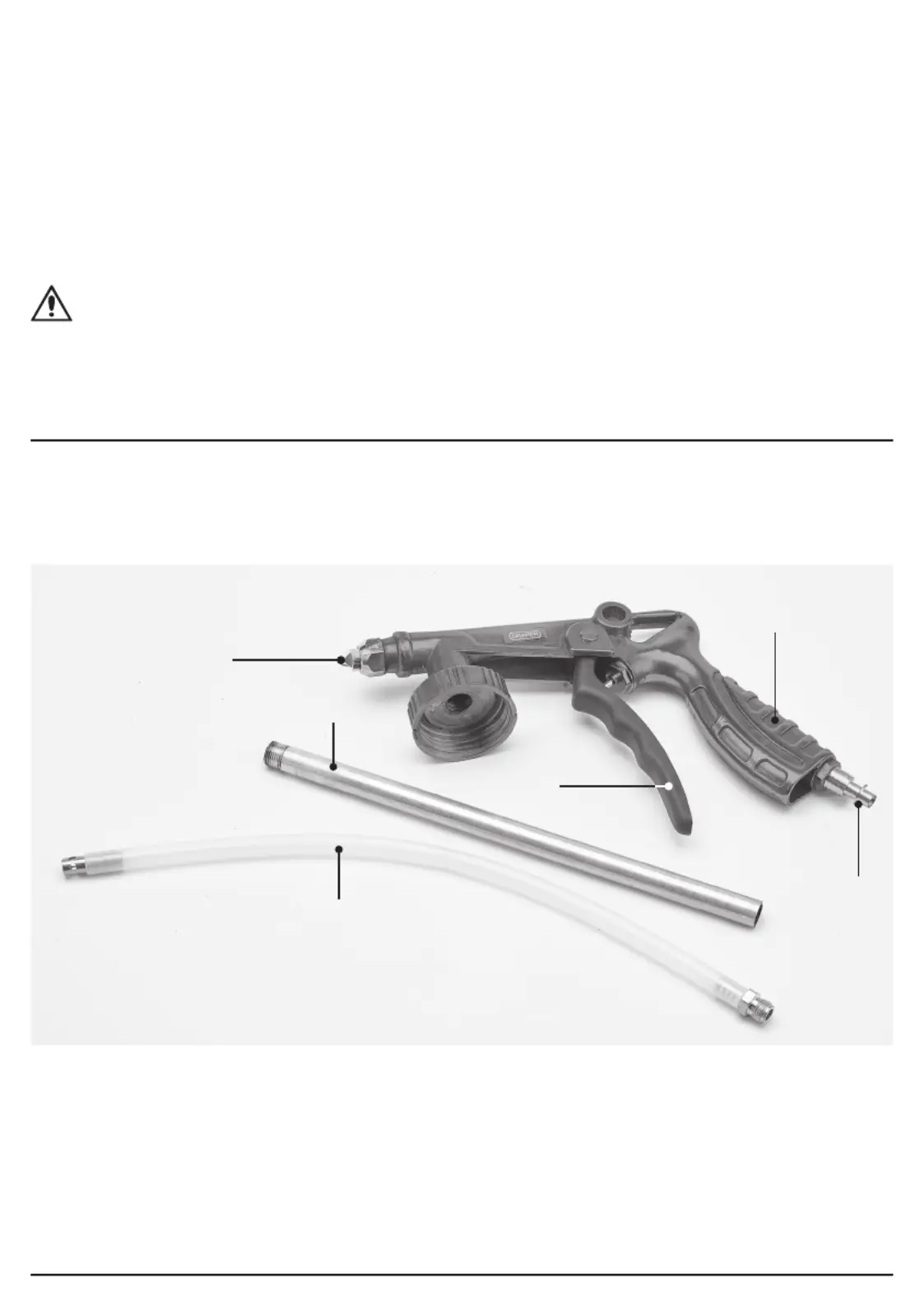

5. Identication
Carefully remove the product from the packaging and
examine it for any signs of damage that may have
occurred during shipment. If any part is damaged or
missing, do not attempt to use the product.
Please contact the Draper Helpline; contact details
can be found at the back of this manual.
(1) Air nozzle
(2) Handle
(3) ¼” BSP air inlet connector
(4) Trigger
(5) Tube/paint tin connector
(6) 500mm exible spraying nozzle
Please visit for our full range of drapertools.com
accessories and consumables.
(1)
(5)
(6)
