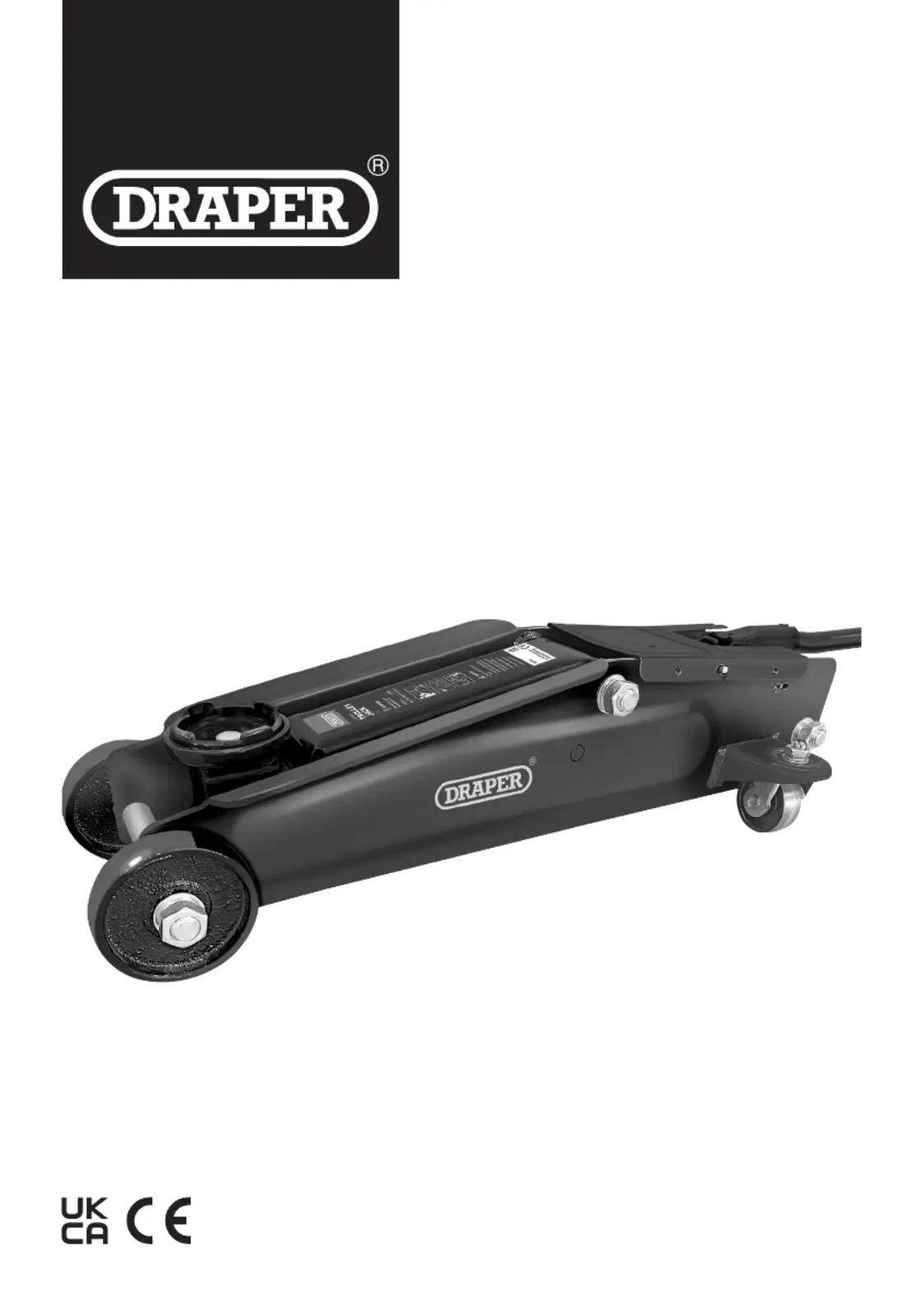

27635
EN
Original Instructions
Version 2
3 TONNE
TROLLEY
JACK
1. Preface
– 2 –
These are the original product instructions. This
document is part of the product; retain it for the life
of the product, passing it on to subsequent holders.
Read this manual in full before attempting to
assemble, operate, or maintain this product.
This Draper Tools manual describes the purpose
of the product and contains all the necessary
information to ensure its correct and safe use.
Following all the instructions and guidance in
this manual will ensure the safety of both the
product and the operator and increase the
lifespan of the product.
All photographs and drawings within this manual are
supplied by Draper Tools to help illustrate correct
operation of the product.
Every eort has been made to ensure the
information contained in this manual is accurate.
However, Draper Tools reserves the right to amend
this document without prior warning. Always use the
latest version of the product manual.
1.1 Product Reference
User Manual for: 3 Tonne Trolley Jack
Stock No: 27635
Part No: TJ3LD
1.2 Revisions
Version 1: May 2014
First release
Version 2: May 2024
Update to format
As our manuals are continually updated, always ensure
that the latest version is used.
Download the latest version from:
drapertools.com/manuals
1.3 Understanding the Safety Content
WARNING! – Situations or actions that may result
in personal injury or death.
CAUTION! – Situations or actions that may result
in damage to the product or surroundings.
Important: – Information or instructions of particular
importance.
1.4 Copyright © Notice
Copyright © Draper Tools Limited.
Permission is granted to reproduce this manual for
personal and educational use ONLY. Commercial
copying, redistribution, hiring, or lending is strictly
prohibited.
No part of this manual may be stored in a retrieval system
or transmitted in any other form or means without written
permission from Draper Tools Limited.
In all cases, this copyright notice must remain intact.
2. Contents
– 3 –
1. Preface 2
1.1 Product Reference 2
1.2 Revisions 2
1.3 Understanding the Safety Content 2
1.4 Copyright © Notice 2
2. Contents 3
3. Product Introduction 3
3.1 Intended Use 3
3.2 Specication 3
4. Explanation of Symbols 4
5. Health and Safety Information 5
5.1 General Health and Safety Precautions 5
5.2 Preparing the Vehicle to be Lifted 5
5.3 Correct Use of the Jack 6
6. Identication and Unpacking 7
6.1 Product Overview 7
6.2 Packaging 7
7. Operating Instructions 8
7.1 Preparing the Jack 8
7.2 Raising a Load 8
7.3 Lowering a Load 8
8. Maintenance and Troubleshooting 9
8.1 General Maintenance 9
8.2 Checking and Replacing the Oil 9
8.3 Troubleshooting 10
9. Disposal 10
10. Warranty 11
3. Product Introduction
3.2 Specication
Stock No. 27635
Part No. TJ3LD
Capacity 3,000kg
Max. lifting range 140–432mm
Saddle diameter 67mm
Handle length 617mm
Chassis length 635mm
Net weight 27.4kg
Overall dimensions 630mm(L) × 255 (W) × 55mm(H)
3.1 Intended Use
This trolley jack is designed for the lifting of vehicles of up
to the stated maximum weight limit as part of domestic
and infrequent light-duty use.
Any other application beyond the conditions established
for use will be considered misuse. Draper Tools accepts no
responsibility for improper use of this product.
This product complies with the requirements dened by
EN 1494.
Read this manual in full before assembling, operating or
maintaining the product, and retain it for later use.
