HTS3 Cylinder
Thermostat
Installation instructions
Technical Data
Setting Range
50° –80°C
Differential
8°C approx.
Switch rating
3 (1) A 230V ac
Switch type
SPDT
Earth
Double insulated
–not required
Connections
C–common
1–call
2–satis edfi
Fixing
Plastic-coated spring wire
with hook and eyelet.
Cylinder thermostats
Make Model Common Call Satisfied
HTS 3 C 1 2
Lifestyle HTS 2 R B Y
Danfoss
Randall
AT (CN4) 1 2 3
ATAG
CS 1/CS 2 1
2 3
Honeywell L641A C 1 2
Landis
& Gyr
RAM 1 1 2 3
Potterton
Myson
PTT 1 L H C
Sunvic 1452/
SA2451
3 1 2
Sopac SAY C 1 2
Smiths SCT 1 1 2 3
Tower CS 1 R B Y
Barlo CT 1 R B Y
Pollution Degree
2
Ball pressure
Test Temperature
110ºC
Rated impulse
voltage
2.5kV
20 / /E14 35 U – Low Voltage Directive
2011/65/E – Restriction of the Use of CertainU
Hazardous Substances (RoHS)
Energy Class
I = 1% (Acc. EU
811/2013, 812/2013,
813/2013, 814/2013)
Conforms to the essential requirements
of the following directives:
20 4/ /E – Electromagnetic ompatibility130U C Directive
What is a cylinder thermostat?
...an explanation for householders
A cylinder thermostat switches on and off the heat supply from the boiler
to the hot-water cylinder. It works by sensing the temperature of the water
inside the cylinder, switching on the water heating when the temperature
falls below the thermostat setting, and switching it off once this set
temperature has been reached.
Turning a cylinder thermostat to a higher setting will not make the water
heat up any faster. How quickly the water heats up depends on the
design of the heating system, for example, the size of boiler and the heat
exchanger inside the cylinder.
The water heating will not work if a time switch or programmer has
switched it off. And the cylinder thermostat will not always switch the
boiler off, because the boiler sometimes needs to heat the radiators.
Cylinder thermostats are usually fitted between one quarter and one third
of the way up the cylinder. The cylinder thermostat will have a temperature
scale marked on it, and it should be set at between 60C and 65C, then left
to do its job. This temperature is high enough to kill off harmful bacteria in
the water, but raising the temperature of the stored hot water any higher
will result in wasted energy and increase the risk of scalding.
If you have a boiler control thermostat, it should always be set to a
higher temperature than that of the cylinder thermostat. In most boilers,
a single boiler thermostat controls the temperature of water sent to both
the cylinder and radiators, although in some there are two separate
20 / /E12 19 U – WEEE Directive
ATAG
ATAG
ATAG
ATAGATAG
Technology Ltd
Technology Ltd
Technology Ltd
Technology Ltd Technology Ltd
80 Churchill Square Business Centre
Kings Hill
West Malling
Kent
M 19 4YUE
Technical Tel: 0800 254 5065
Email: technical@atagheating.co.uk
Website: www.atagheating.co.uk

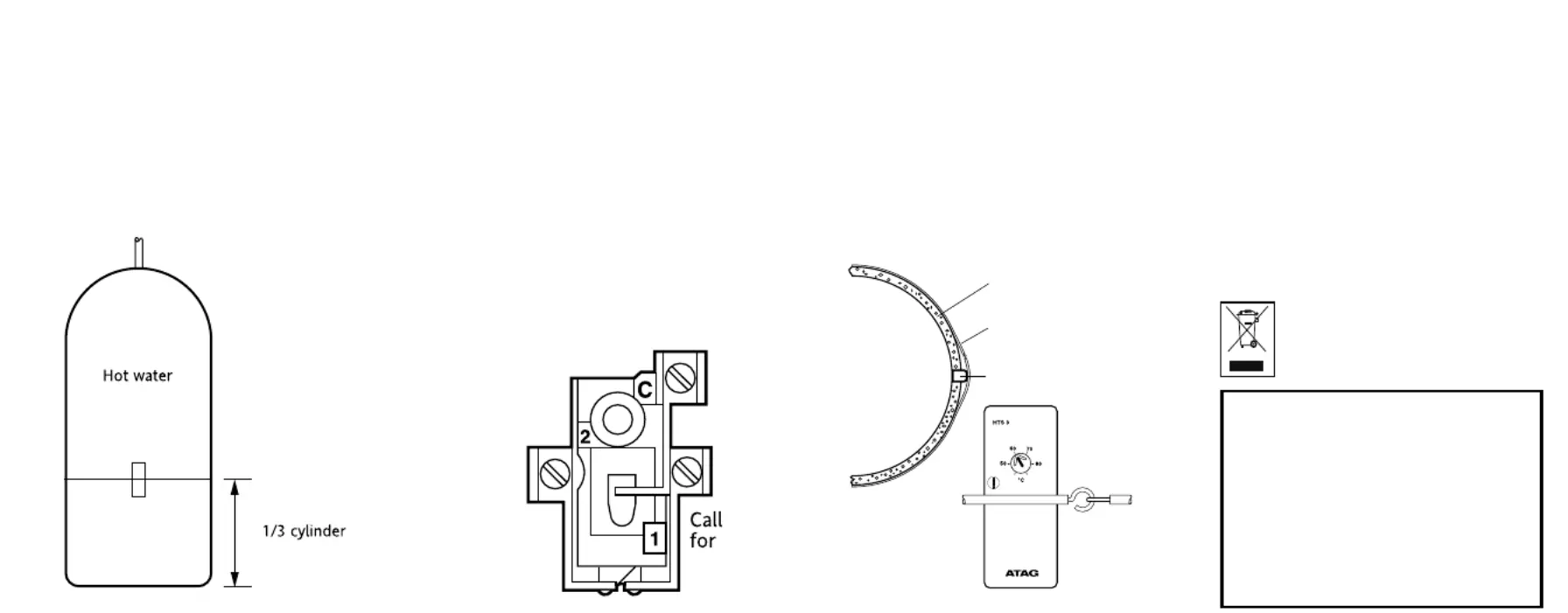

Positioning the HTS3
The HTS3 should be installed approximately one
third of the way up the hot water cylinder, and at
the front for ease of access.With pre-insulated
cylinders, mark the position and size, and remove
just enough insulation to allow the HTS3 to tfi
against the metal of the cylinder in the recess
formed.
Wiring Connections
From the wiring centre or junction box, run
suf cient 3-core electrical connecting cable tofi
reach the HTS3 installation position without being
under tension.
Remove the HTS3 cover by undoing the
central retaining screw. Mak
e wiring connections in
accordance with the diagram below and the
manufacturers instructions for associated
equipment such as motorised valves, boiler,
programmers etc. Replace and secure the cover.
The HTS3 is double insulated and no Earth
connection is necessary. The circuit should be
protected with a 3A fuse.
Fixing to the Cylinder
The base of the HTS3 should be held in good
contact with the metal of the hot water cylinder.
The plastic covered spring xing cable shouldfi
be cut to an unstretched length of
approximatel
y 2 1/2” – 3”less than the
circumference of the cylinder and the hook and
eyelet screwed into the ends. Stretch the cable
round the cylinder, above the insulation, and
position it in the groove across the front of the
HTS3. Engage the hook and eyelet.
Common
heat
Satisfied
Cylinder
Insulation
Fixing cable
HTS3
cylinder
HTS3
height
Commissioning
The two marks outside temperature setting the
scale on the provide temperature and HTS3 max
OFF positions to
assist with commissioning or
checking the Rotate the system operation. setting
arrow and anticlockwise fully max for OFF.
Setting
With a the setting at screwdriver, position arrow
the nominal hot desired water temperature.
A
popular setting is 60°C but this is if not exactly
suitable, simply adjust up or down as appropriate.
WARNING
Disconnect
mains
supply
before
fitting
or
removing
the
cover.
A
switch
having
contact
separation
of
at
least
3mm
in
all
poles
must
be
incorporated
in
the
fixed
wiring
as
a
means
of
providing
full
disconnection of the
mains supply.
This product should not be disposed of
with household waste. Please recycle
the products where facilities for
electronic waste exist. Check with your
local authorities for recycling advice.
