Seite 1/4

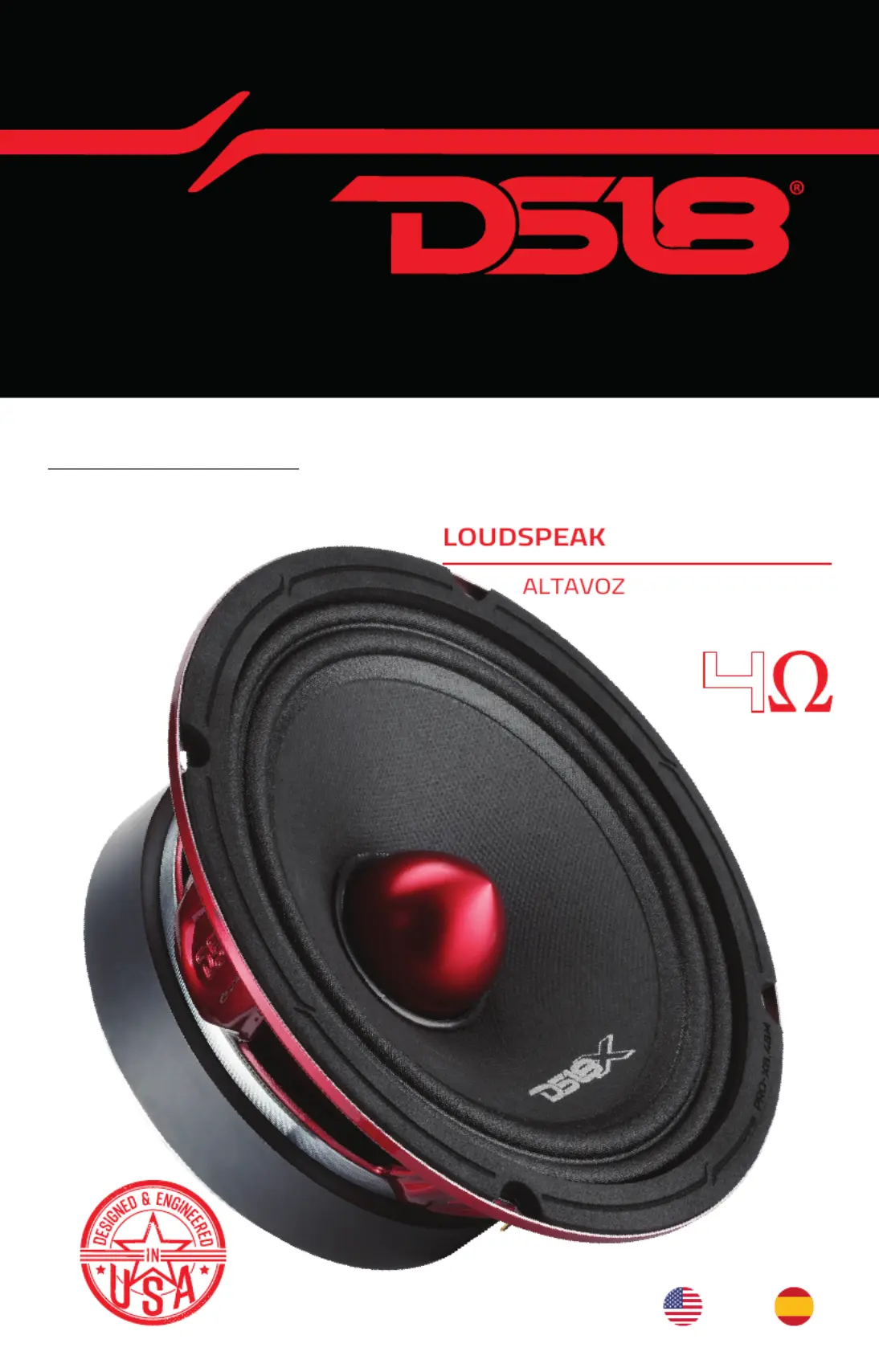

PRO-X6.4BM
6.5" MID-RANGE
ER WITH BULLET
DE RANGO MEDIO
DE 6.5” CON BALA
ENGLISH | ESPAÑOL
OWNER'S MANUAL
MANUAL DE USUARIO
PRO-X6.4BM
Nominal Diameter / Diámetro Nominal ................................................................6.5" / 165mm
Nominal Impedance / Impedancia Nominal .................................................................... 4 Ohms
RMS Power Handling / Manejo de Potencia RMS ............................................................. 250W
MAX Power Handling / Manejo de Potencia MAX ............................................................. 500W
Sensitivity (1w/1m) / Sensibilidad (1w/1m) ....................................................................... 95dB
Frequency Response / ............................................... 100Hz-10KHz Respuesta de Frecuencia
Recommended HI Pass Crossover / ....................... 140Hz Crosover Paso alto Recomendado
Pair or Single / .................................................................................Single / Par o Unidad Unidad
MOTOR / MOTOR
Voice Coil Diameter / ...........................................1.5”/38.6 mm Diámetro de la Bobina de Voz
Voice Coil Former Material / .................................... Kapton Material Interior de Bobina Móvil
Winding Material / ........................................................................... CCAW Material de Bobinado
Cone Material / ..........................Non-Pressed Paper / Material del Cono Papel no prensado
Bullet Material / ......................................................... Aluminum / Material de la Bala Aluminio
Bullet Color/Finish / ............................Glossy Red Color / Acabado de la Bala / Rojo Brillante
Surround Material / Material de la Suspensión ........................................................Cloth / Tela
Basket Material / ................................................................ Steel / Material de la Canasta Acero
Basket Color/Finish / Color/Acabado de Canasta ........................ Glossy Red / Rojo Brillante
Magnet Material / ..................................................................Ferrite / Material del Imán Ferrita
Magnet Weight / ........................................................................................... 30 oz Peso del Imán
MEASUREMENTS / MEDIDAS
Overall Diameter / ..................................................................... 6.57" / 167mm Diámetro Total
Overall Depth / .........................................................................2.83" / 72mm Profundidad Total
Front Mount Baffle Cutout / . ..............................5.7" / 145 mm Corte del Orificio de Montaje
Mounting Depth / . ......................................................... 2.6" / 66 mm Profundidad de Montaje
Motor Diameter / Diámetro del Motor..................................................................... 4.72" / 120 mm
THIELE & SMALL PARAMETERS / PARÁMETROS T/S
Equivalent Volume / Vas Volumen Equivalente...................................... ....... 2.64L / 0.093ft3
Excursion (one way) / XmaxExcursión (1 vía)............................................. .................... 8.2 mm
Free Air Resonance / Fs ........................... Resonancia al Aire Libre................................. 180Hz
Mechanical Factor / Factor Mecánico ............................................... ...........................Qms 7.82
Electrical Factor / QesFactor Eléctrico..................................................... .............................0.65
Total Factor / Factor Total .................................................................. ............................... Qts
0.6
Mechanical Mass / Factor Mecánico ................................................ Mms.........................7.13g
Mechanical Compliance / ......................... Cms............... Cumplimiento Mecánico 0.11 mm/N
BL Factor / Factor BL ........................................................................... BL ...............................6.46
Voice Coil Inductance / ................. Le ........................ Inductancia de la Bobina Móvil 0.03mH
Cone Area / Área del cono ................................................................... Sd .................... 130.7Cm2
DC Resistance / ......................................................... Re........................ Resistencia DC 3.3 ohm
Please visit our website DS18.com for more information
on our warranty policy.
We reserve the right to change products and specifications
at any time without notice.
Images may or may not include optional equipment.
Visita nuestra página web DS18.com para obtener s
informacn sobre nuestra garantía.
Nos reservamos el derecho de cambiar productos y
especificaciones en cualquier momento sin previo aviso. Las
imágenes pueden incluir o no equipo opcional.
WARRANTY
GARANTÍA
WARNING:
Cancer and Reproductive Harm.
www.P65Warning.ca.gov
ADVERTENCIA:
Cáncer y Daño Reproductivo.
www.P65Warning.ca.gov
MEASUREMENTS / MEDIDAS:
Ø 6.1”/155mm
Ø 6.61”/168mm
Ø 5.7"/145mm
Ø 4.72" / 120mm
2.6"/66 mm
2.83"/ 72 mm
20 Hz 50 100 200 500 1K 2K 5K 10K 20K
dBSPL
-10
0
10
20
30
40
50
60
70
80
90
100
110
SPL vs Freq
