INSTALLATION INSTRUCTIONS

SAVE FOR FUTURE USE

Product names listed herein are trademarks of AS America, Inc.

© AS America, Inc. 2020

7302409-100 (2/2020)

RECOMMENDED TOOLS AND MATERIALS

Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing

supply stores. It is essential that the tools and materials be on hand before work is begun.

Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin.

(Certain installations may require professional help.) Also be sure your installation conforms to local codes.

CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!

NOTE: Pictures may not exactly define contour of china and components.

!

DXV Belshire

™

Wall Hung Toilet with Seat

Model D23050A000.415

Regular Screwdriver

10'

Level

Closet Bolts

Putty Knife

Tape Measure

Hacksaw

SealantAdjustable Wrench

Flexible Supply Tube

ALL INSTALLATION PROCEDURES MUST COMPLY IN STRICT ACCORDANCE WITH APPLICABLE LOCAL

PLUMBING AND BUILDING CODES.

For rough-in dimensions, see spec page or web site

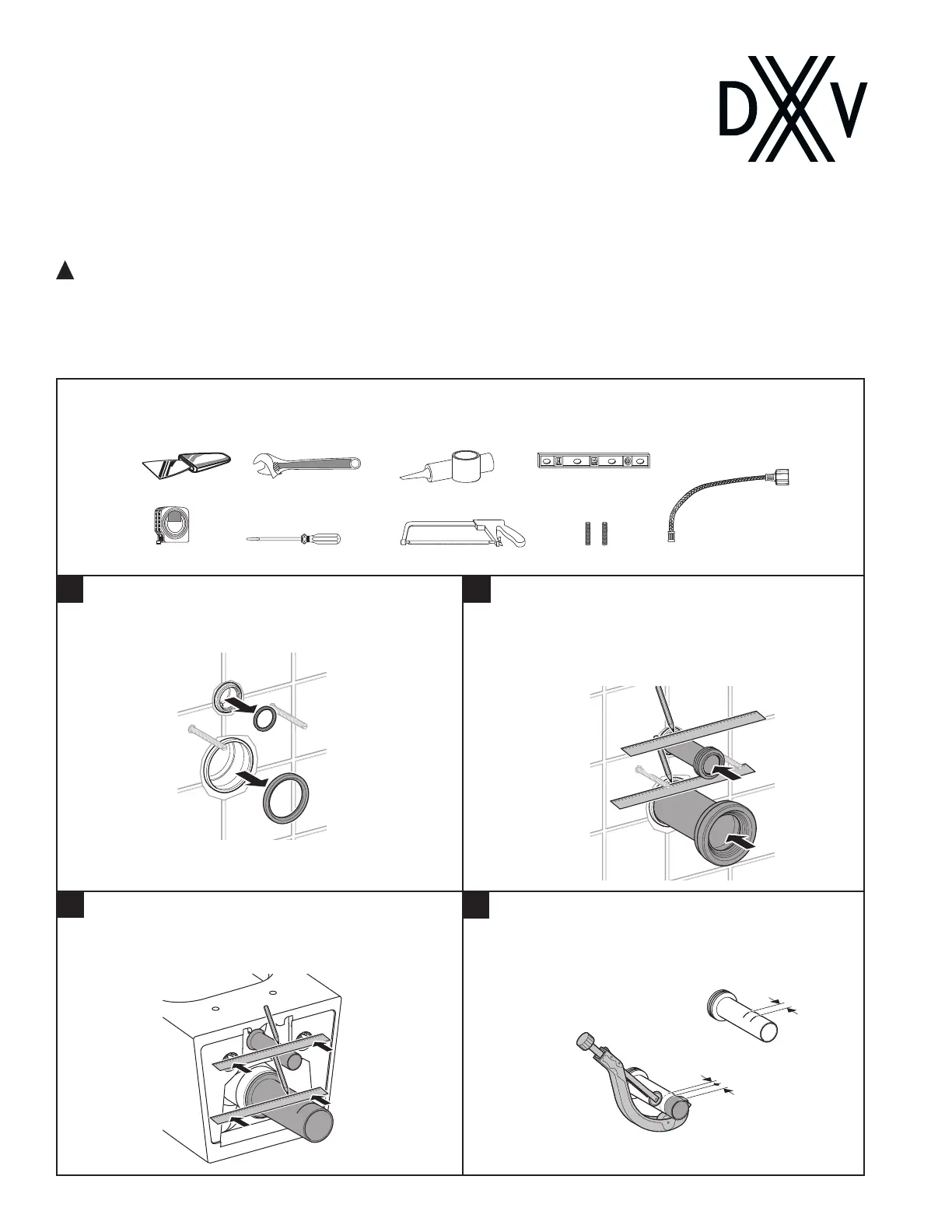

BOWL INSTALLATION:

Remove yellow protection plugs and seals from pipes.

Place discharge pipe with gasket into waste outlet of bowl.

Also place ush pipe with n gasket into inlet of bowl.

Then mark a second line on both pipes.

Insert discharge pipe into the pipe hub in the wall. Place

a straight edge ush against the wall and mark a line on

the pipe. Fit nned rubber seal onto ush pipe. Repeat

same procedure for discharge pipe.

Add dimension X and 1/8" (3 mm). Using that dimension,

mark a line on the pipe measuring from the hub side.

Cut off the pipe at the line with a pipe cutter.

12

4

3

X

X

+

1/8"

+

(

3

m

m

)
