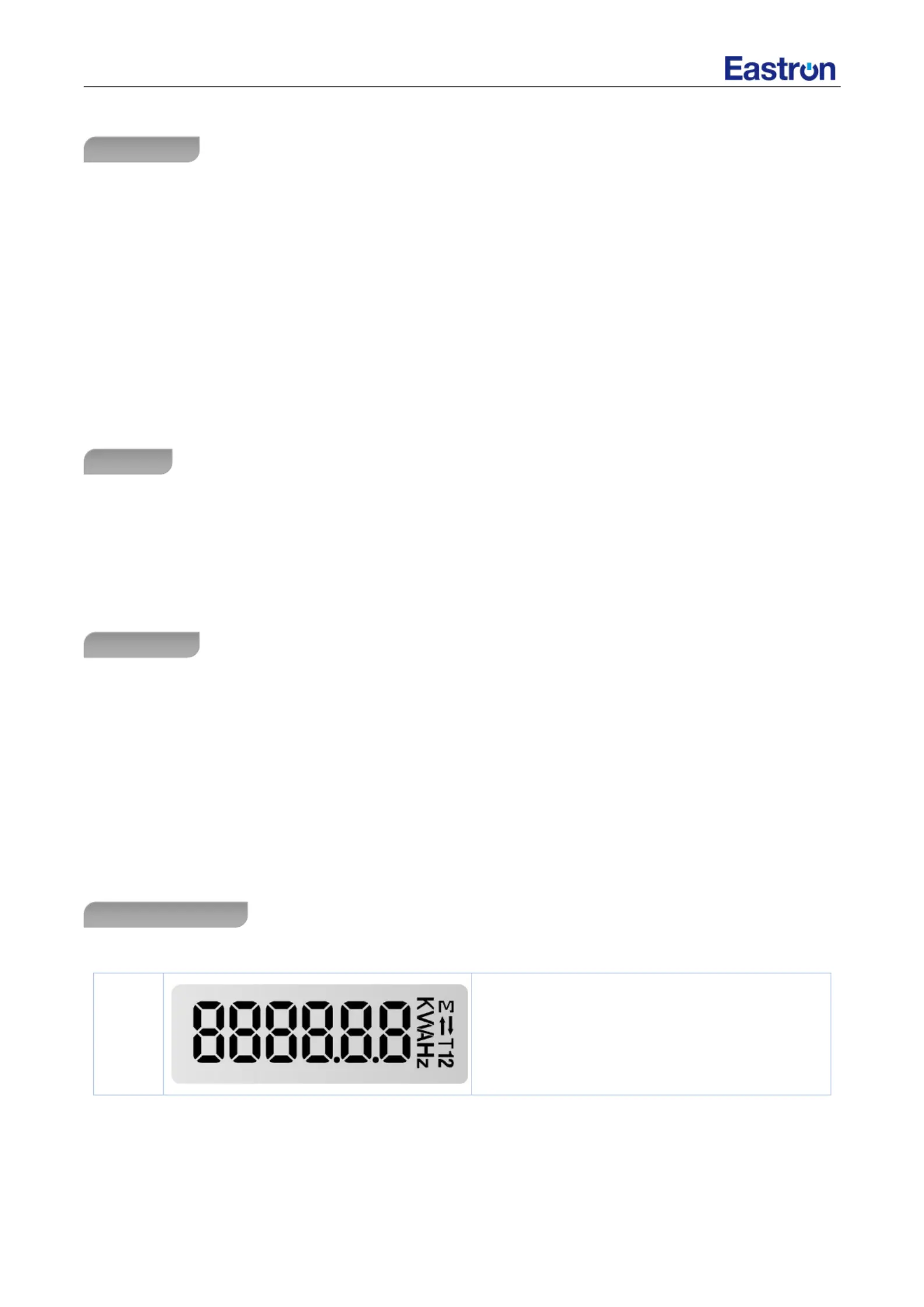

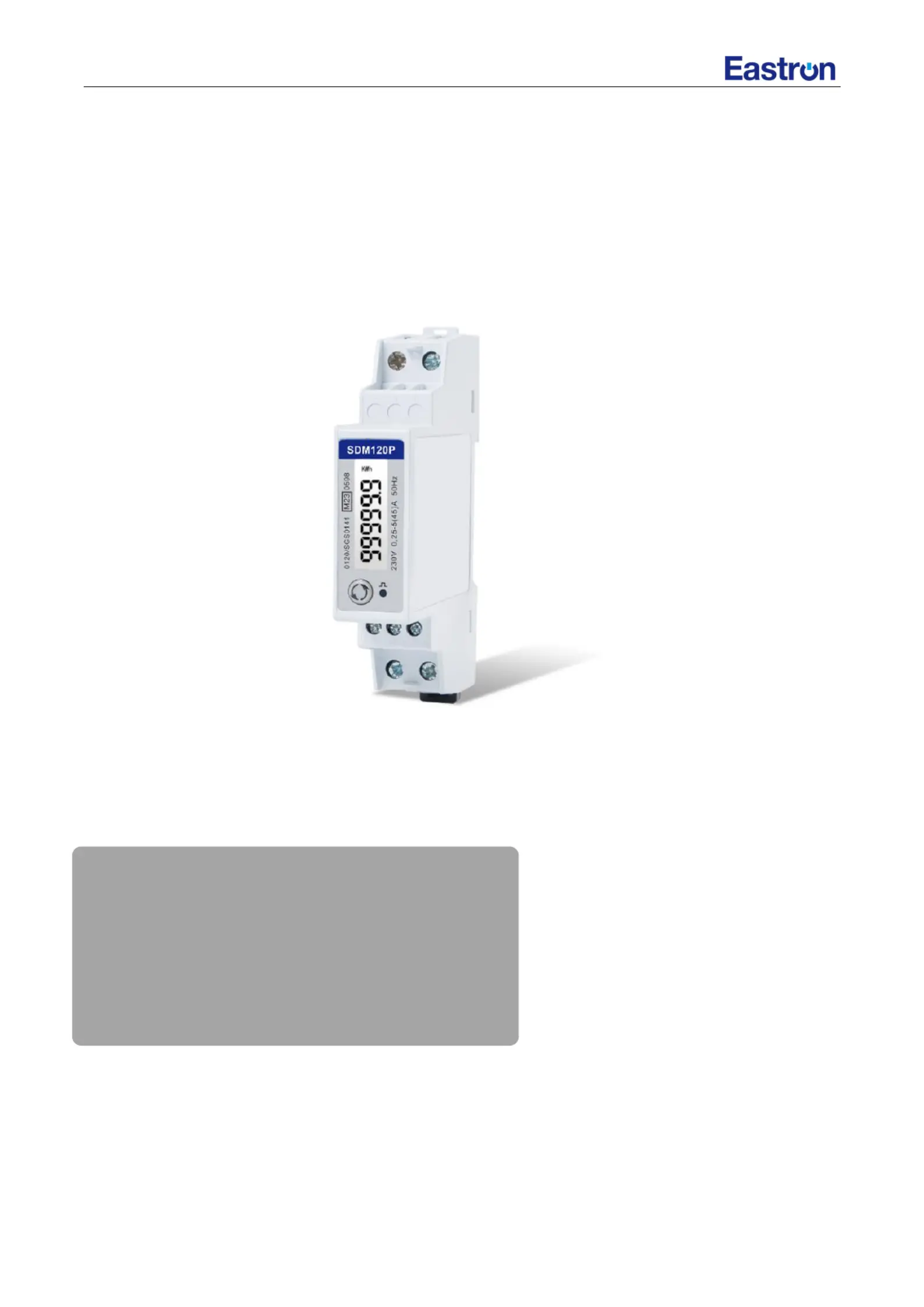

Eastron SDM120P User Manual
Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 email: sales@eastrongroup.com
Address: No.52 Dongjin Road, Nanhu,Jiaxing, Zhejiang, 314000, China. Web: www.eastrongroup.com
SDM120P
Single-Phase Multi-function DIN Rail Meter
Measures kWh, kW,PF, Hz, V, A.
Bi-directional measurement IMP & EXP kWh
Two pulse outputs
Din rail 35mm
45A direct connection
Better than Class 1 accuracy
User Manual V1.0
Eastron SDM120P User Manual
Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 email: sales@eastrongroup.com
Address: No.52 Dongjin Road, Nanhu,Jiaxing, Zhejiang, 314000, China. Web: www.eastrongroup.com
Application
The energy-meters are used to measure single-phase applications like residential, utility and Industrial. The unit
measures and displays various important electrical parameters. It equipped with a white back-lighted LCD screen
for prefect reading. The compact design and din rail installation provides an easy and economical solution for your
metering demand.
PART 1 Specification
General Specifications
Voltage AC (Un) 230V
Voltage Range 176~276V AC
Base Current (Ib) 5A
Max. Current (Imax) 45A
Mini Current (Imin) 0.25A
Starting current 0.4% of Ib
Power consumption <2W/10VA
Frequency 50/60Hz(±10%)
AC voltage withstand 4KV for 1 minute
Impulse voltage withstand 6KV-1.2uS waveform
Overcurrent withstand 30Imax for 0.01s
Pulse output rate
-Pulse Output 1 1000imp/kWh (Export)
-Pulse Output 2 1000imp/kWh ( Import)
Display LCD with white backlit
Max. Reading 99999.9kWh
Accuracy
Voltage 0.5% of range maximum
Current 0.5% of nominal
Frequency 0.2% of mid-frequency
Power factor 1% of Unity
Active power 1% of range maximum
Active energy Class 1 IEC62053-21
Class B EN50470-1/3
Eastron SDM120P User Manual
Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 email: sales@eastrongroup.com
Address: No.52 Dongjin Road, Nanhu,Jiaxing, Zhejiang, 314000, China. Web: www.eastrongroup.com
Environment
Operating temperature -25 to +55℃ ℃
Storage and transportation temperature -40 to +70℃ ℃
Reference temperature 23 2℃± ℃
Relative humidity 0 to 95%, non-condensing
Altitude up to 2000m
Warm up time 3s
Installation category CAT III
Mechanical Environment M1
Electromagnetic environment E2
Degree of pollution 2
Output
Pulse Output
The meter provides two pulse outputs. Both pulse outputs are passive type.
Pulse output 1 is 1000 imp/kWh for export kWh.
Pulse output 2 is 1000imp/kWh for import kWh.
Mechanics
Din rail dimensions 18x118x64 (WxHxD) DIN 43880
Mounting DIN rail 35mm
Ingress protection IP51 (indoor)
Material Self-extinguishing UL94V-0
PART 2 Operation
Initialization Display
When it is powered on, the meter will initialize and do self-checking.
1
Full Screen
It will last for 3 seconds.
