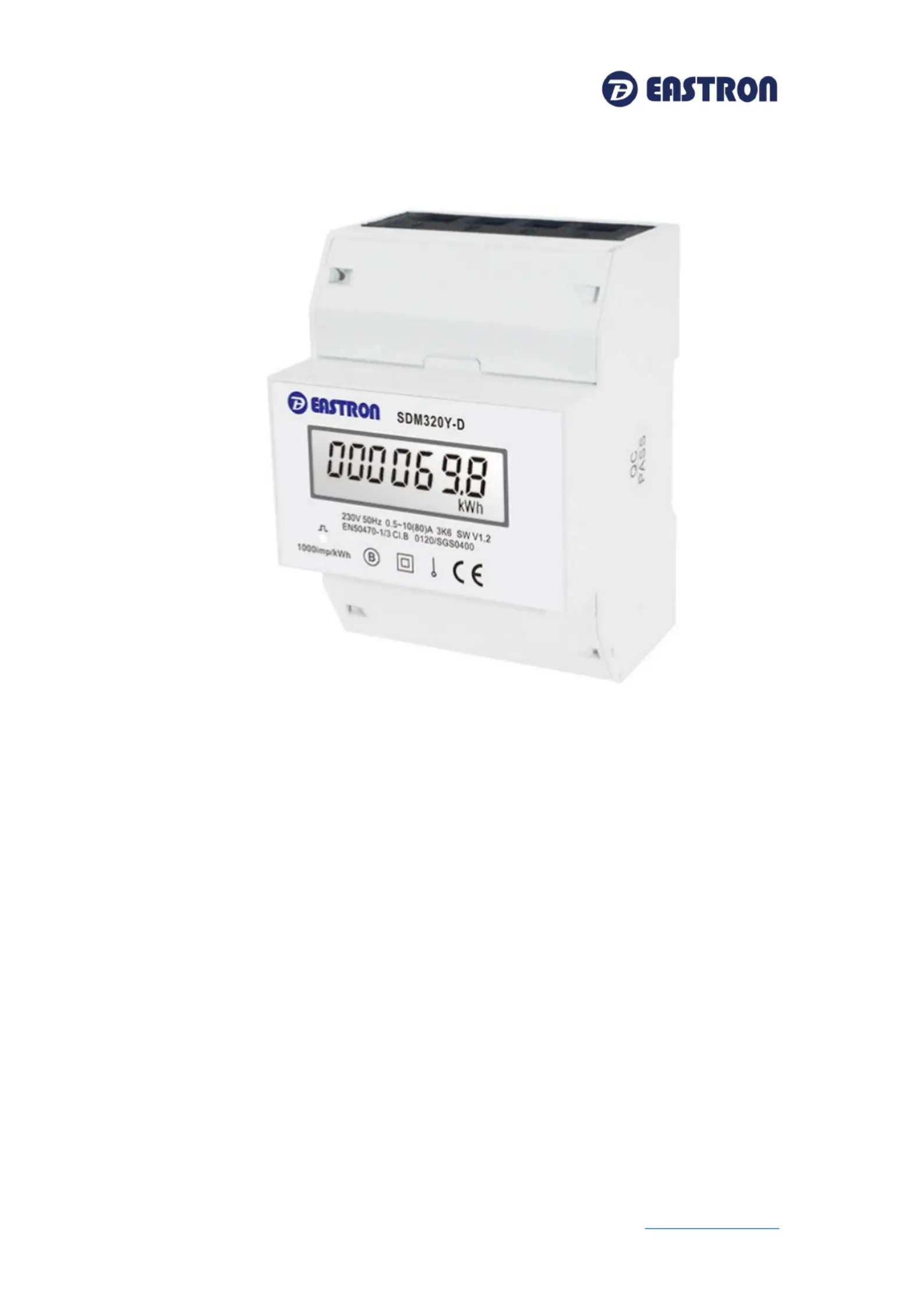

SDM320Y-D User Manual V1.1
2020 EASTRON ELECTRONIC. ALL RIGHTS RESERVED. www.eastrongroup.com
General Specifications
Voltage AC (Un) 230V
Voltage Range 176~276V AC
Base Current (Ib) 10A
Max. Current (Imax) 80A
Mini Current (Imin) 0.5A
Starting current 0.4% of Ib
Power consumption <2W/10VA
Frequency 50Hz(±10%)
AC voltage withstand 4KV for 1 minute
Impulse voltage withstand 6KV-1.2uS wavform
Overcurrent withstand 30Imax for 0.01s
Pulse output rate 1000imp/kWh (default)
Display LCD with backlit
SDM320Y-D User Manual V1.1
2020 EASTRON ELECTRONIC. ALL RIGHTS RESERVED. www.eastrongroup.com
Accuracy
Energy Class 1 IEC62053-21
Class B EN50470-1/3
Environment
Operating temperature -25 to +55℃ ℃
Storage and transportation temperature -40 to +70℃ ℃
Reference temperature 23 ±2℃ ℃
Relative humidity 0 to 95%, non-condensing
Altitude up to 2000m
Warm up time 10s
Installation category CAT II
Mechanical Environment M1
Electromagnetic environment E2
Degree of pollution 2
IP level IP51 (Indoor, the meter is to be installed in
Cabinet higher than IP51)
Output
Pulse Output
The meter provides one pulse output.
It is fixed up with total kWh. The constant is 1000imp/kWh.

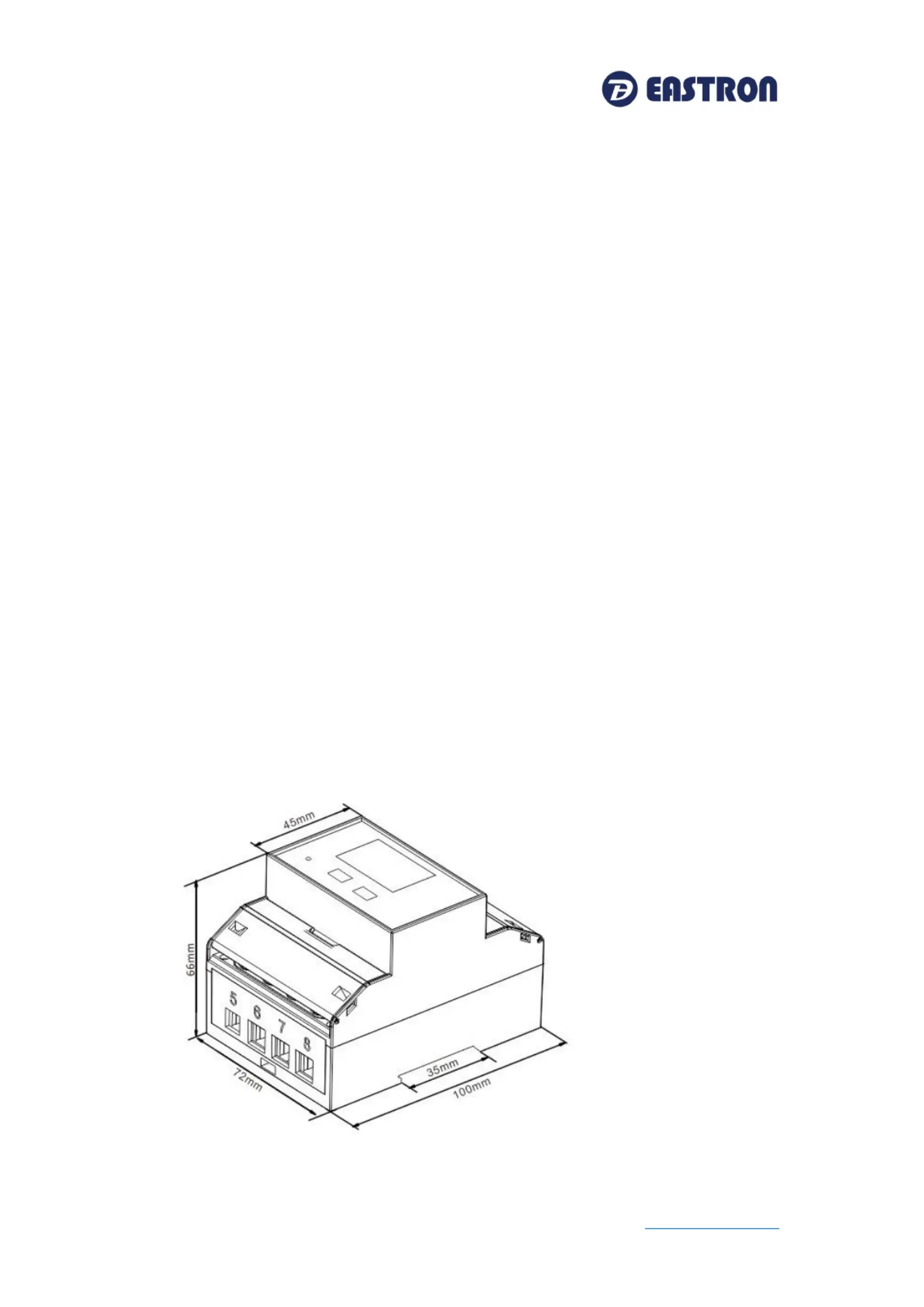

Dimensions
SDM320Y-D User Manual V1.1
2020 EASTRON ELECTRONIC. ALL RIGHTS RESERVED. www.eastrongroup.com

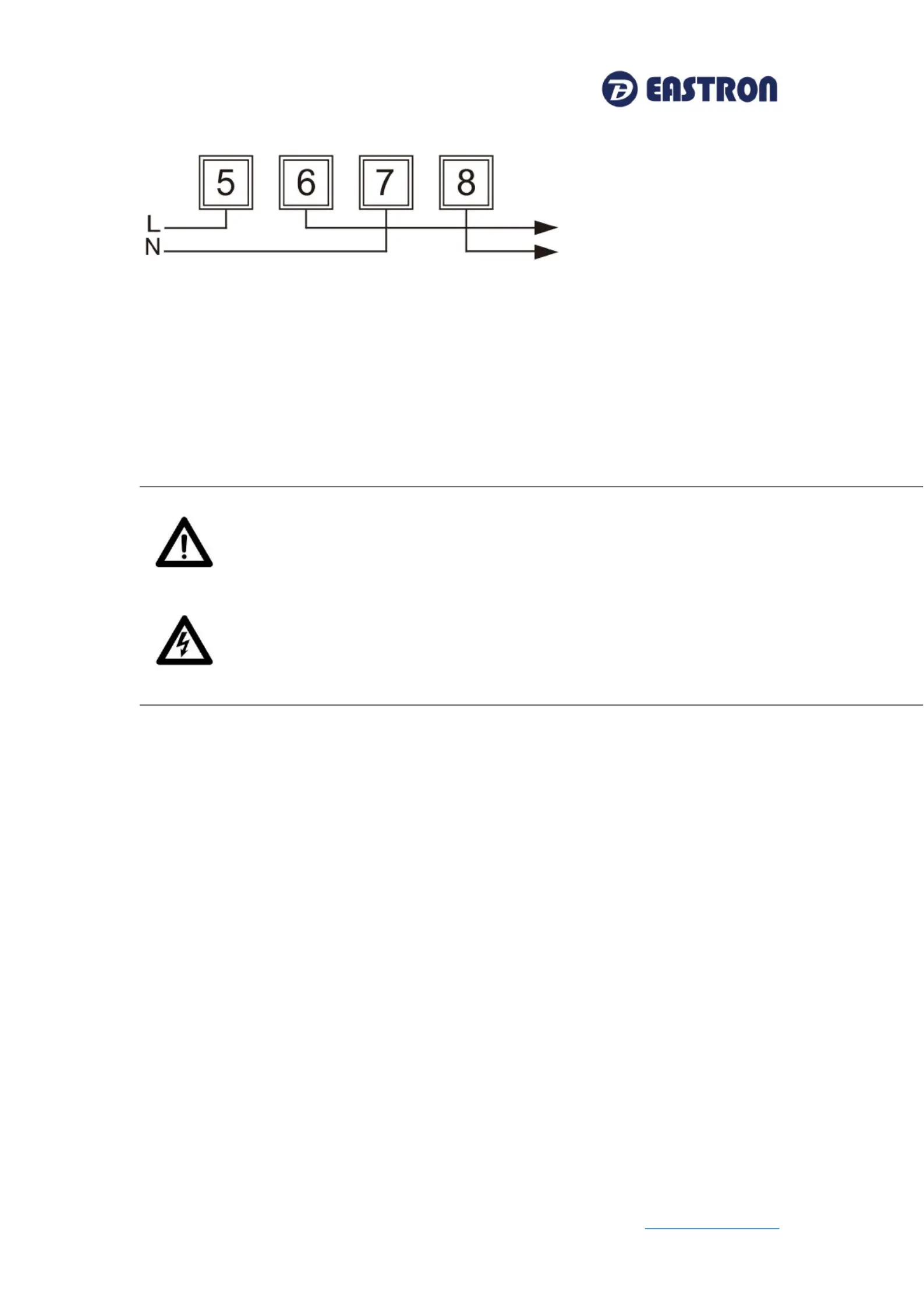

Wiring Diagram
Information for Your Own Safety
This manual does not contain all of the safety measures operating the equipment (module,
device) for different conditions and requirements. However, it does contain information which
you must know for your own safety and to avoid damages. This information is highlighted by a
warning triangle indicating the degree of potential danger.
Warning
It means that failure to follow the instruction can result in death, serious injury
or considerable material damage.
Caution
It means hazard of electric shock and failure to take the necessary safety
precautions will result in death, serious injury or considerable material damage.
Qualified personnel
Operation of the equipment (module, device) described in this manual may only be performed
by qualified personnel. Qualified personnel in this manual means person who are authorized to
commission, start up, ground and label devices, systems and circuits according to safety and
Regulatory standards.
Proper handling
The prerequisites for perfect, reliable operation of the product are proper transport, proper
storage, installation and proper operation and maintenance. When operating electrical
equipment, parts of this equipment automatically carry dangerous voltages. Improper handling
can therefore result in serious injuries or material damage.
Use only insulating tools.
Do not connect while circuit is live (hot).
Do not connect the meter to a 3 phase - 400VAC – network.
Place the meter only in dry surroundings.
Do not mount the meter in an explosive area or expose the meter to dust, mildew and
insects.
Make sure the wires are suitable for the maximum current of this meter.
