GENERAL PROVISIONS
-Kit is designed to facilitate the work carried
out by the installers. In fact, it consists of all
the necessary components for the product to
be properly installed.
-The kit comes pre-assembled, so the
installershould provide tight connectionwith
hemp or Teflon on parts requiredfor
connections, taking care to counterthe
tightening force to avoid bending copper
pipes.
NB:
-Thtoe thermo product must be connected
an "closed" expansion tank.
-The system must neverbe filled directly from the
water mains as the pressuremay be greater than
that stipulated on the data plate of the thermo
product.
-The maximum operatinnotg pressure must
exceed 1,5 bar
-Connect the drains ofthe thermal relief valve and
the safety valve to the sewerage

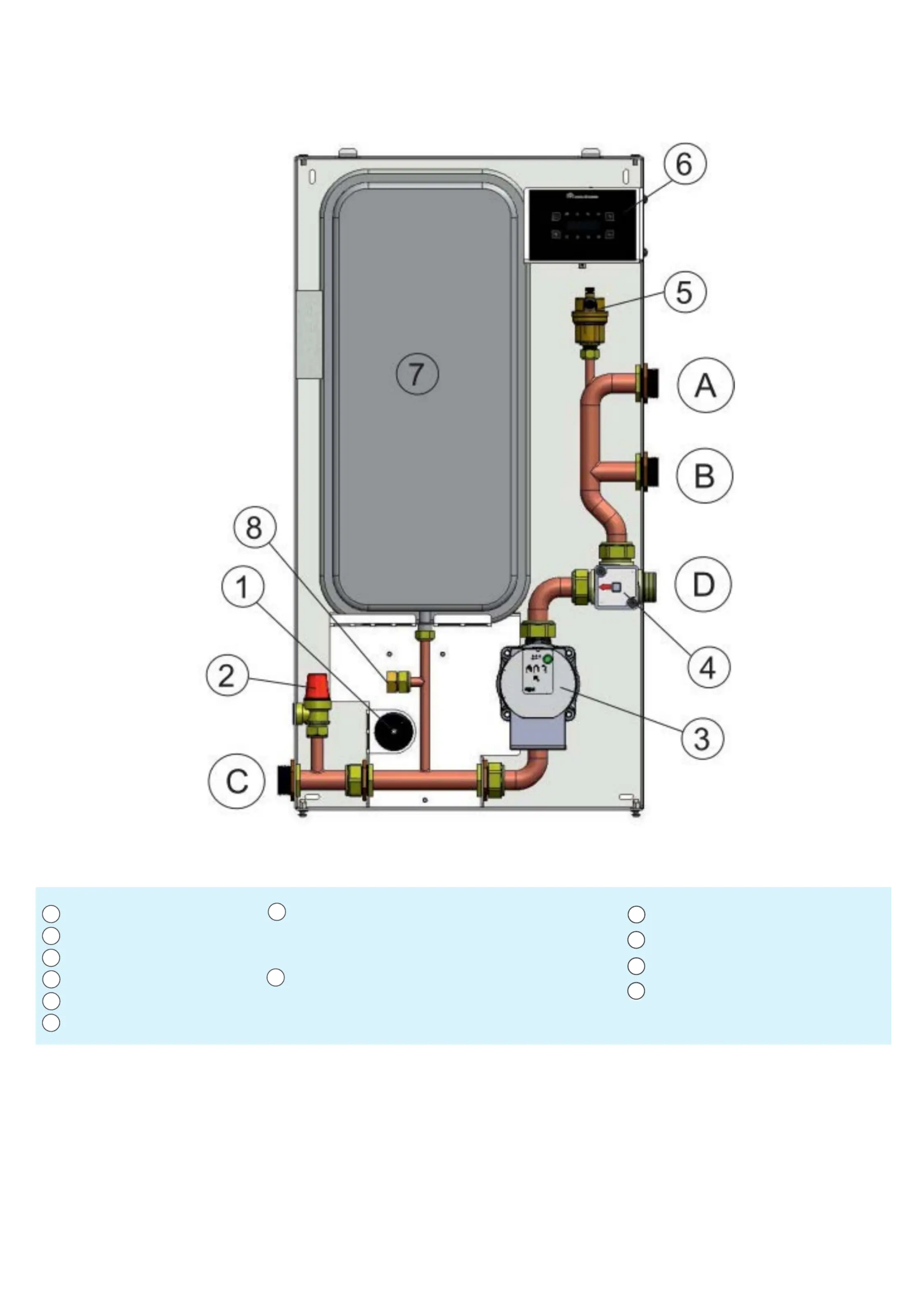

1
2
3
4
5
6
7

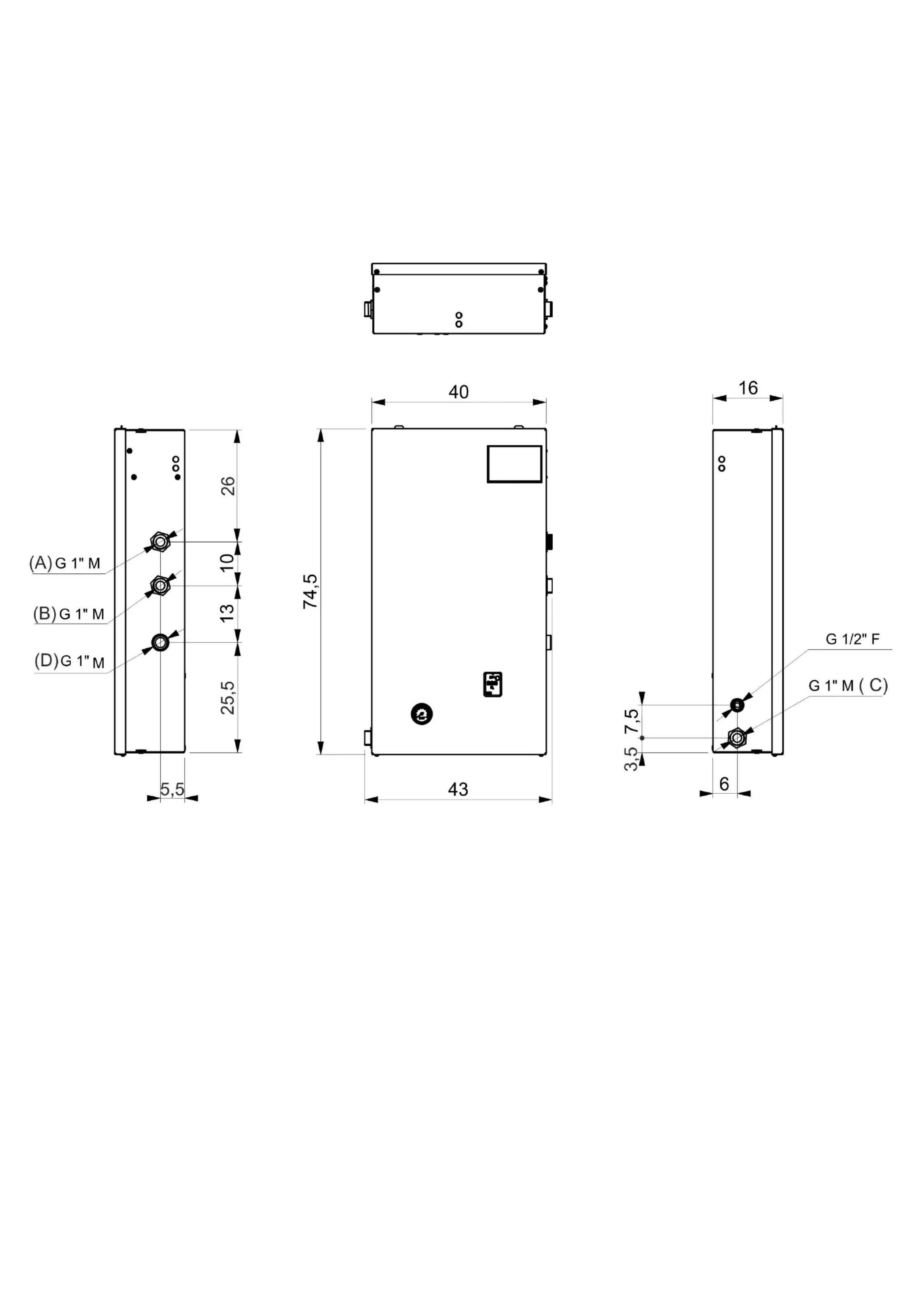

C
Thermoproduct flowG1"M
System flow G1" M
Thermoproduct return G1" M
System return G1" M
B
8
A
D
Manometer
Safety valve
Pump (circulator)
Thermostatic mixing valve
Air relief automatic valve 3/8"
Touch screen control unit
Expansion tank es14 litr
(precharge 1.5 bar - maximum operating pressure 3 bar -
operating temperature from -10°C to +90°C)
Manometer well

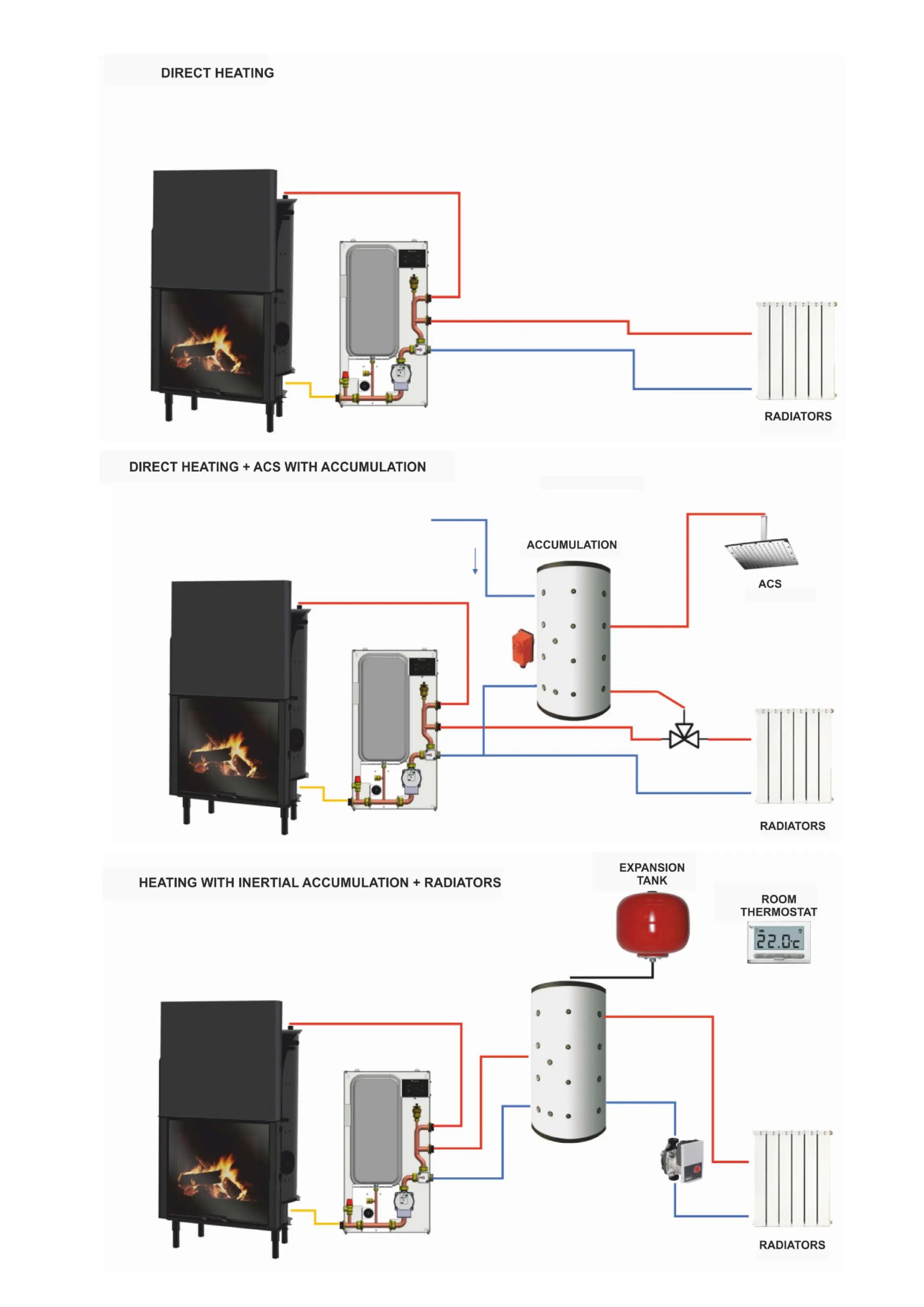

HYDRAULIC KIT "MULTI" ASSEMBLED
The connections, commissioning and
verification of proper operation must be
qualified personnel, who can implement
all connections in accordance with the
laws in force.
It is recommended to use a magnetic
sludge filter and a descaling additive, to
avoid clogging.
