Seite 1/83

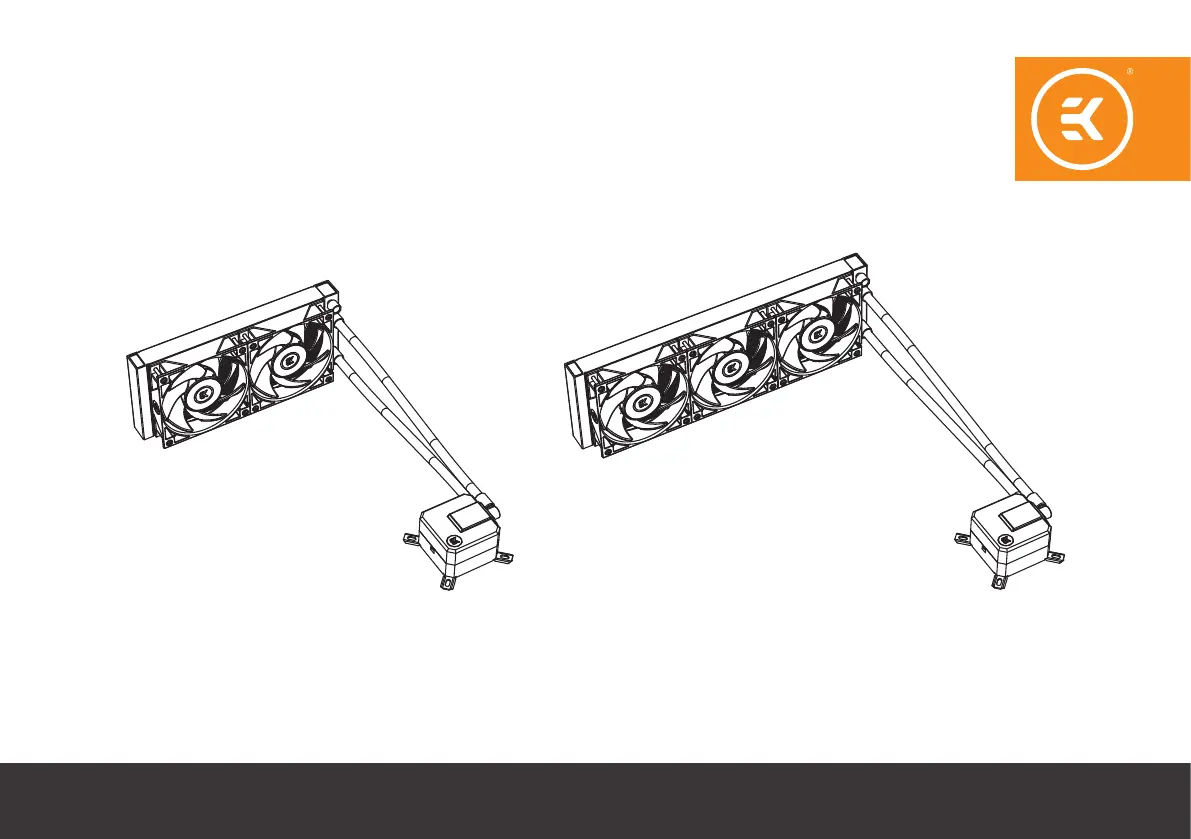

INSTALLATION MANUAL

EK-AIO

BASIC 240 / BASIC 360

Compatible with:

Intel Socket 115X / 20xx CPUs

AMD Socket AM4 CPU

To ensure safe and easy installation, please carefully read

this manual before starting with the installation process!

2nd Revision, March 17, 2021

INFORMATION TO THE USER

This equipment has been tested and found to comply with the limits for a class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

The user is cautioned that changes and modiﬁ cations made to the equipment without the approval

of manufacturer could void the user’s authority to operate this equipment.

Produktspezifikationen

Marke:	EK Water Blocks
Kategorie:	PC Kühlventilator
Modell:	EK-AIO BASIC 360
Warentarifnummer (HS):	84733080
Ursprungsland:	China
Typ:	All-in-One-Flüssigkeitskühler
Menge pro Packung:	1 Stück(e)
Geräuschpegel Lüfter (max.):	33.5 dB
Maximaler Luftstrom:	77 cfm
Empfohlene Platzierung:	Prozessor
Rohrmaterial:	Gummi
Lüfterdurchmesser:	120 mm
Anzahl Lüfter:	3 Lüfter
Ventilator-Anschluss:	4-polig
Heizkörpermaterial:	Aluminium
Ventilatoren Geschwindigkeit (min):	550 RPM
Ventilatoren Geschwindigkeit (max):	2200 RPM
Unterstützte Prozessorsteckplätze:	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4
Maximum Luftdruck:	2.89 mmH2O
Unterstützung der Pulsweitenmodulation:	Ja
Heizungs-Breite:	395 mm
Heizungs-Tiefe:	120 mm
Heizungs-Höhe:	27 mm
Abmessungen Gebläse (B x T x H):	120 x 120 x 25 mm
Motorschnelligkeit der Pumpe (min):	850 RPM
Motorschnelligkeit der Pumpe (max):	2600 RPM
Pumpenbreite:	88 mm
Pumpentiefe:	70 mm
Pumpenhöhe:	53 mm
Ventilator Dicke:	25 mm
Pumpenanschluss:	4-polig
