DESIGN WASH LED ZOOM™
SKU# DWZ056

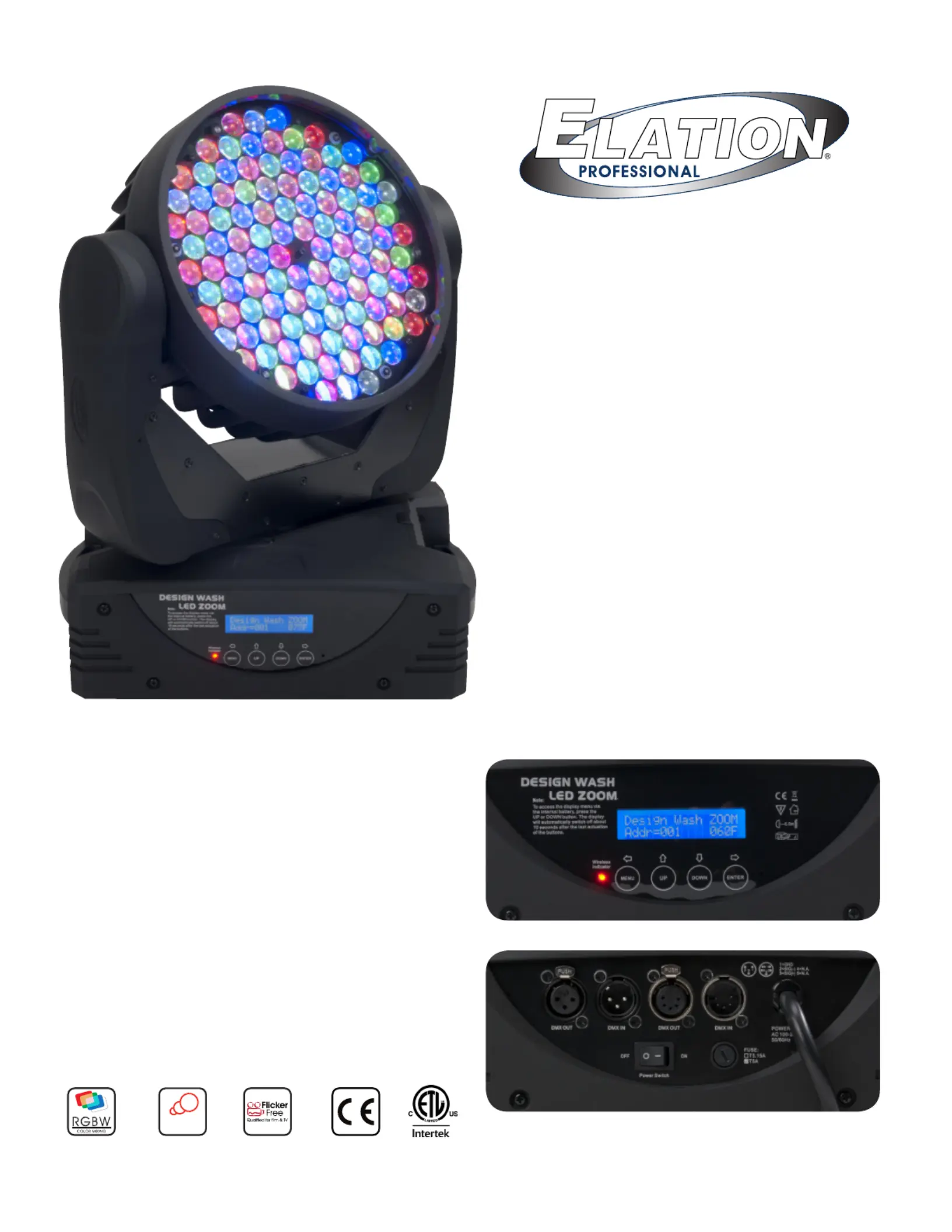

The Design Wash LED Zoom™ is a high output
pro grade zoom wash LED luminaire featuring
(108) 3W Osram™ LEDs consisting of (40) Red, (28) Green,
(30) Blue, and (10) White, producing 5,500
total lumens with 6° to 23° motorized
zoom, 0-100% dimming, 1-18 fps strobe and pulse
effect, RGBW color mixing and color macros, 16bit
pan and tilt movement, 3pin and 5pin
DMX in/out connections, flicker free operation
for broadcast TV and FILM, (4) button
control LCD menu display, 350W max power
consumption, and a multi-voltage universal
auto switching power supply (100-240v).
FEATURES
High Output Pro Grade Zoom Wash LED Luminaire
(108) 3W Osram™ LEDs (40) R, (28) G, (30) B, (10) W
5,500 Total Lumens
6° to 23° Motorized Zoom
0-100% Dimming
1-18 fps Strobe and Pulse Effect
RGBW Color Mixing and Color Macros
Flicker Free Operation for Broadcast TV and FILM
Specifications are subject to change without notice ©Elation Professional
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu
ELATION I DESIGN WASH LED ZOOM™ I Product Specification Sheet
z o o m
FEATURES
High Output Pro Grade Zoom Wash LED Luminaire
5,500 Total Lumens
6° - 23° Motorized Zoom
RGBW Color Mixing and Color Macros
Flicker Free Operation for Broadcast TV and FILM
SOURCE
(108) 3W Osram™ LEDs
(40) Red, (28) Green, (30) Blue, and (10) White
50,000 Hour Average LED Life
PHOTOMETRIC DATA
Distance @8.2 ft (2.5m)
32,700 LUX 3,038 FC (6° Min Zoom Full ON)
3,500 LUX 325 FC (23° Max Zoom Full ON)
EFFECTS
RGBW Color Mixing and Color Macros
Dimming: 0% - 100%
Strobe: 1-18fps
CONTROL / CONNECTIONS
(14) DMX Channels
(4) Button Control Panel
LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
3pin and 5pin DMX In/Out
SIZE / WEIGHT
Length: 13.4” (341mm)
Width: 8.7” (220mm)
Vertical Height: 17.5” (445)
Weight: 21.0 lbs. (9.5 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
350W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE |P20 |
INSTALLATION
Rigging: Clamps (Not Included)
Working Position: Flat Surface / Inverted (180°)
INCLUDED ITEMS
(1) Omega Bracket
(1) 3pin DMX Cable
(1) Safety Cable
specifications
I
ELATION DESIGN WASH LED ZOOM™
I
www.elationlighting.com
Specifications are subject to change without notice ©Elation Professional
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu

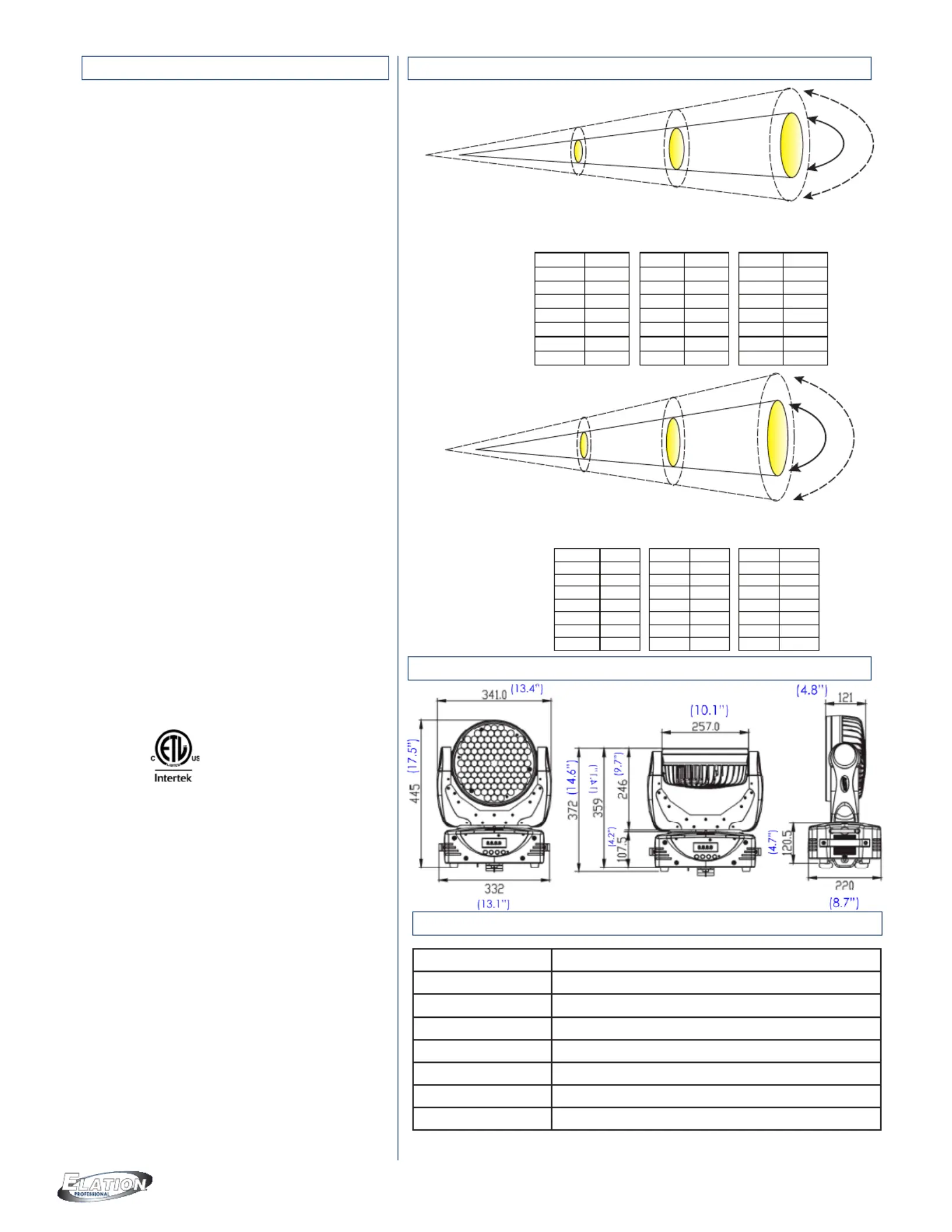

DIMENSIONAL DIAGRAMS
PRODUCT SPECIFICATIONS
PHOTOMETRIC DATA
OPTIONAL ACCESSORIES
6°
Beam
10°
Field
2.5m
5m
7.5m
m ft m ft m ft
Distance 2.5 8.2 5 16.4 7.5 24.6
6° Beam Diameter
0.28 0.9 0.56 1.8 0.84 2.8
10° Field Diameter
0.44 1.4 0.88 2.9 1.32 4.3
lux fc lux fc lux fc
FULL ON
32,700 3,038 10,150 943 4,310 400
RED LEDs 10,320 959 2,890 268 1,178 109
GREEN LEDs
16,780 1,559 4,643 431 2,024 188
BLUE LEDs
2,341 217 560 52 250 23
WHITE LEDs
9,090 844 2,476 230 1,081 100
MIN ZOOM
23°
Beam
37°
Field
2.5m
5m
7.5m
m ft m ft m ft
Distance 2.5 8.2 5 16.4 7.5 24.6
6° Beam Diameter
1.00 3.3 2.00 6.6 3.00 9.8
10° Field Diameter
1.68 5.5 3.36 11.0 5.04 16.5
lux fc lux fc lux fc
FULL ON
3,500 325 916 85 445 41
RED LEDs 964 90 260 24 121 11
GREEN LEDs
1,720 160 425 39 213 20
BLUE LEDs
210 20 49 5 26 2
WHITE LEDs
858 80 217 20 106 10
MAX ZOOM
ORDER CODE ITEM
TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp
EWDMXSYSTEM Wireless DMX System (1 Transmitter, 1 Receiver)
EWDMXT Wireless DMX Transmitter
EWDMXR Wireless DMX Receiver
AC3PDMX5PRO 5 ft. (1.5m) 3pin PRO DMX Cable
AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable
Additional cable lengths available
