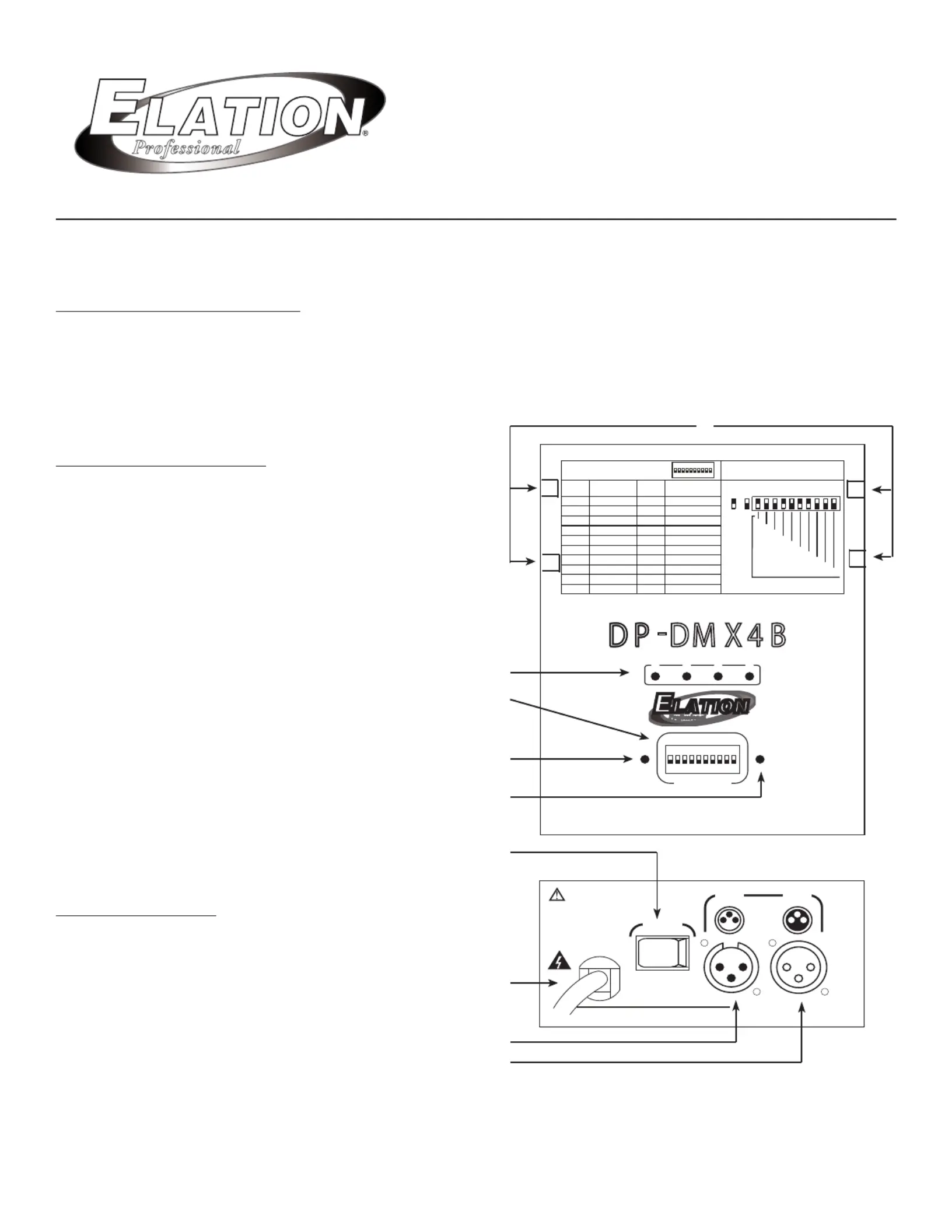

DP-DMX4B
USER
INSTRUCTIONS
Thank you for purchasing the DP-DMX4B by Elation Professional For your convenience, this DP-®.
DMX4B has been tested and is ready to be used, there is no assembly required.
PRODUCT DESCRIPTIONS:
The DP-DMX4B is a 4 channel DMX dimmer pack, it can extend to a maximum of 512 channels
using DMX-512 protocol. The DP-DMX4B features include: zero-crossing circuitry for protection of
inductive loads; 3-prong Edison sockets for each channel; individual 6A fuses for each channel; XLR
connection and a maximum output load of 5A per channel or 20A total.
1
4
3
2
1
8
7
6
4
3
2
9
5
GENERAL FUNCTIONS:
1. 5A per channel, Total 20AChannel Output:
2. These LEDs indicate the dim Channel LEDs:
ming, On/Off of the appropriate channels.
3. Slide these dipswitces DMX Dipswitches:
to select desired DMX address (DMX add-
ressing is printed on the top cover of the DP-
DMX4B.)
4. The LED is lit when power is on.Power LED:
5. This LED begins flashing when a DMX LED:
DMX signal is present.
6. Turns the main power on/off.Power Switch:
7. AC 120V~60Hz, 20A max.Power Input:
8. This connector accepts your DMX Input:
DMX input signals.
9. This connector sends your DMX Output:
DMX signal through to the next DMX device.
SPECIFICATIONS:
Power Input..............AC 120V~60Hz, 20A max.
Channel Output.....................5A/CH., Total 20A
Fuse (Internal)..........6A 250V 5x20mm (x4PCS)
Dimensions...........................197 x 124 x 60mm
Weight.........................................2.6Lbs./1.2Kgs
CAUTION! No user servicable parts inside. Do Not attempt repairs. In the event your unit should fail,
contact Elation Professional at (323) 582-3322.®
WARNING! This product must be earthed. This product is intended for indoor use only. To prevent
fire or shock hazard, do not expose this product to a high temperture or high humidity area.
1 2 3
4
POWER
INDICATOR
DMX
INDICATOR
ON
MD
1 2
3
4
5 6
7
8 9 10
DMX Address
OUTPUT: 5A/CH, TOTAL 20A MAX
11
12
13
14
15
511
: :
: :
: :
512
1,2,4
3,4
1,3,4
2,3,4
1,2,3,4
1,2,3,4,5,6,7,8,9
10
ON
MD
1 2
3
4
56
7
8 910
DMX Address Table
(1 -1 0 Sw itc he s)
2
1,2
3
1,3
2,3
1,2,3
4
1,4
2,4
START
CH#
START
CH#
SWITCHES
ON
SW TCHESI
ON
11
2
3
4
5
6
7
8
9
10
DMX Address Setting
1 2
3
4
5 6
7
8 9 10
Switch#
On
Of f
Switch
Address 105
Binary
Value
1
2
4
8
16
32
64
128
256
512
AC120V~ 60Hz,
20A MAX
DMX
IN
DMX
OUT
1=Ground
2=Data-
3=Data+
2
3
2
3
MADE IN PRC
23-020-0121
LOADING FUSE: F6A 250V
(INTERNAL) (
5x2 mm0
x4pcs)
POWER INPUT
N'OUVREZ PAS..RISQUE DE CHOC ELECTRIQUE
WARNING: THIS APPARATUS MUST BE EARTHED
BEFORE OPENING
RI SK O F EL EC TRI C
SH OC K DI SCO NN EC T
IN PU T PO WER
This product must not be continuously used
for a long time un er 20A total output loadd
PO ERW
CAUTION
1
1
