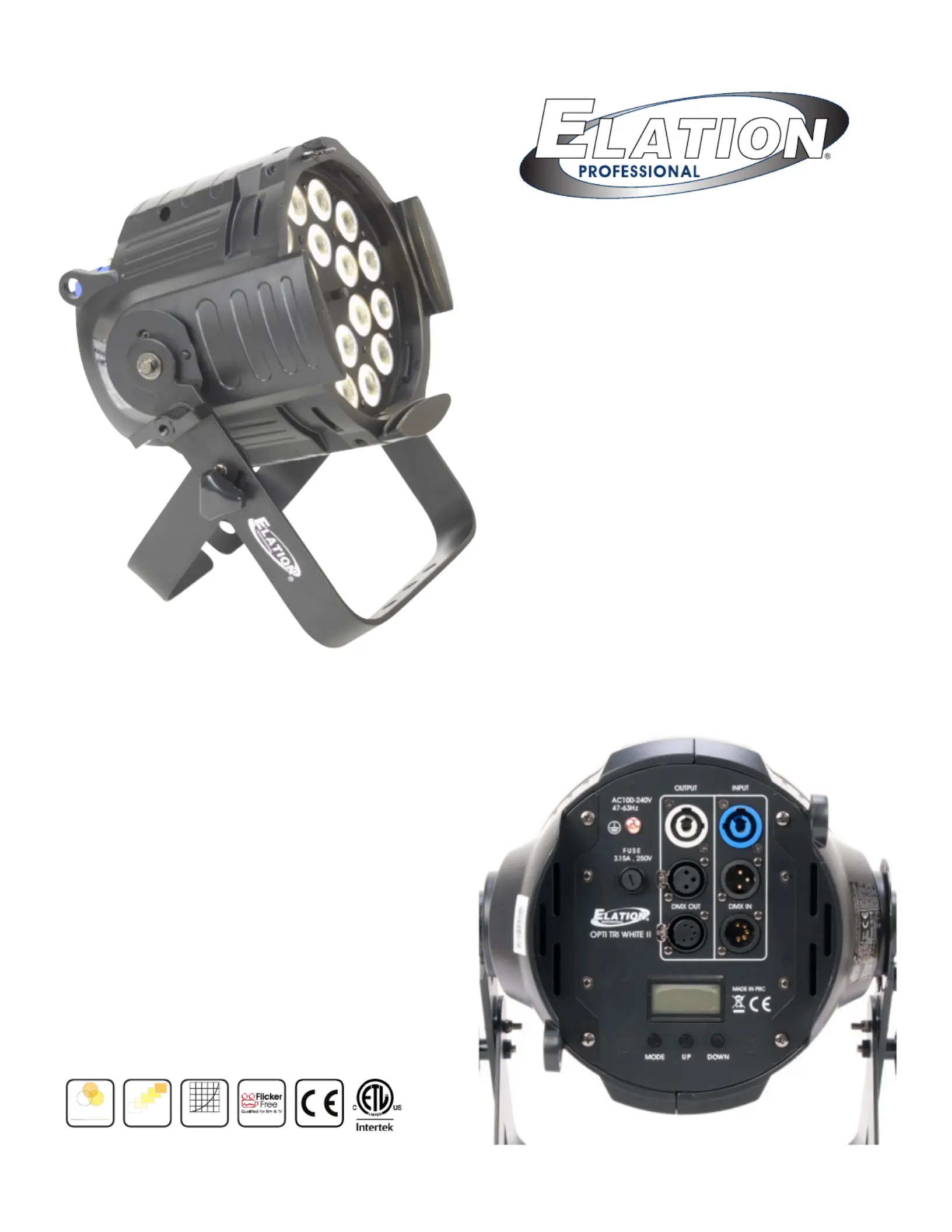

OPTI TRI WHITE II™
SKU# OTW801
The new updated Opti Tri White II™ features (18) 5W
4-in-1 Multi-Chip Variable White (Cool, Warm, and
Amber)LEDs, 100,000 average hour LED life, 20°
standard beam lens, electronic strobe and dimming
(0-100%), (5) variable dimming curve modes,
dual yoke / oor stand, multiple unit power linking,
rugged die-cast aluminum exterior, flicker free
operation for TV and FILM, 120W max power
consumption, and a multi-voltage universal
auto switching power supply (110-240v).
FEATURES
High Output Tri-White LED Par
(18) 5W 4-in-1 Multi-Chip Variable White LEDs
Cool White, Warm White, and Amber
100,000 Average Hour LED Life
20° Standard Beam Lens
(5) Variable Dimming Curve Modes
Dual Yoke / Floor Stand
Multiple Unit Power Linking
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM
Specications are subject to change without notice ©Elation Professional
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu
ELATION I OPTI TRI WHITE II™ I Product Specification Sheet
TRI
W H I T E L E D S
VARIABLE
C O L O R T E M P
VARIABLE
D I M M I N G C U R V E
FEATURES
HIgh Output Tri-White LED Par
Cool White, Warm White, and Amber
20° Standard Beam Lens
(5) Variable Dimming Curve Modes
Flicker Free Operation for TV and FILM
SOURCE
(18) 5W 4-in-1 Multi-Chip Variable White LEDs
100,000 Hour Average LED Life
PHOTOMETRIC DATA
20,190 LUX (1,876 FC) @ 3.3’ (1m) (FULL ON)
5,681 LUX (528 FC) @ 6.6’ (2m) (FULL ON)
2,605 LUX (242 FC) @ 9.8’ (3m) (FULL ON)
1,583 LUX (147 FC) @ 13.1’ (4m) (FULL ON)
1009 LUX ( FC) @ 16.4’ (5m) (FULL ON)
EFFECTS
Electronic Strobe
Variable Color Temperature Macros
Electronic Dimming: 0% - 100%
(5) Variable Dimming Curve Modes
CONTROL / CONNECTIONS
(2) DMX Channel Modes (4 / 8)
(3) Button Control Panel
LCD Menu Display
3pin/5pin DMX In/Out
powerCON In/Out
SIZE / WEIGHT
Length: 11.0” (280mm)
Width: 8.7” (221mm)
Vertical Height: 14.1” (358mm)
Weight: 10.5 lbs. (4.8 kg)
ELECTRICAL / THERMAL
AC 120-230V - 50/60Hz
120W Max Power Consumption
Power Linking: 5pcs Max @110V / 10pcs Max @230V
APPROVALS / RATINGS
CE | cETLus | IP20
INSTALLATION
Rigging: Integrated Dual Yoke / Floor Stand
Working Position: Any (360°)
INCLUDED ITEMS
Gel Frame
powerCON Cable
L280,1
W221,91
212,55
H358,76
340,48
11.0”
8.7”
13.4”
14.1”
8.4”
specifications
I
ELATION OPTI TRI WHITE II™
I
www.elationlighting.com
Specications are subject to change without notice ©Elation Professional
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu
20°
Beam
1m
2m
3m
4m
5m
Distance 1m 3.3 ft 2m 6.6 ft 3m 9.8 ft 4m 13.1 ft 5m 16.4 ft
Photometrics lux fc lux fc lux fc lux fc lux fc
COOL WHITE LEDs
7,336 682 2,084 194 946 88 578 54 365 34
WARM WHITE LEDs
10,640 988 2,974 276 1,373 128 810 75 515 48
AMBER LEDs
3,423 318 964 90 440 41 313 29 187 17
ALL FULL ON
20,190 1,876 5,681 528 2,605 242 1,583 147 1,009 94
DIMENSIONAL DIAGRAMS
PRODUCT SPECIFICATIONS
PHOTOMETRIC DATA
OPTIONAL ACCESSORIES
ORDER CODE ITEM
TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp
BD-03 Barn Door
LSF536
Light Shaping Filter 30 20” x 24” Sheet°
LSF537
Light Shaping Filter 20 20” x 22” Sheet°
LSF538
Light Shaping Filter 60 x 1 20” x 24” Sheet° °
LSF559
Light Shaping Filter 10 20” x 24” Sheet°
EWDMXSYSTEM Wireless DMX System (1 Transmitter, 1 Receiver)
EWDMXT Wireless DMX Transmitter
EWDMXR Wireless DMX Receiver
PLC3 3’ (1m) PowerCON PRO Link Cable
PLC6 6’ (1.8m) PowerCON PRO Link Cable
AC3PDMX5PRO 5 ft. (1.5m) 3pin PRO DMX Cable
AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable
Additional Cable Lengths Available
Optional Barndoor SKU# BD-03
