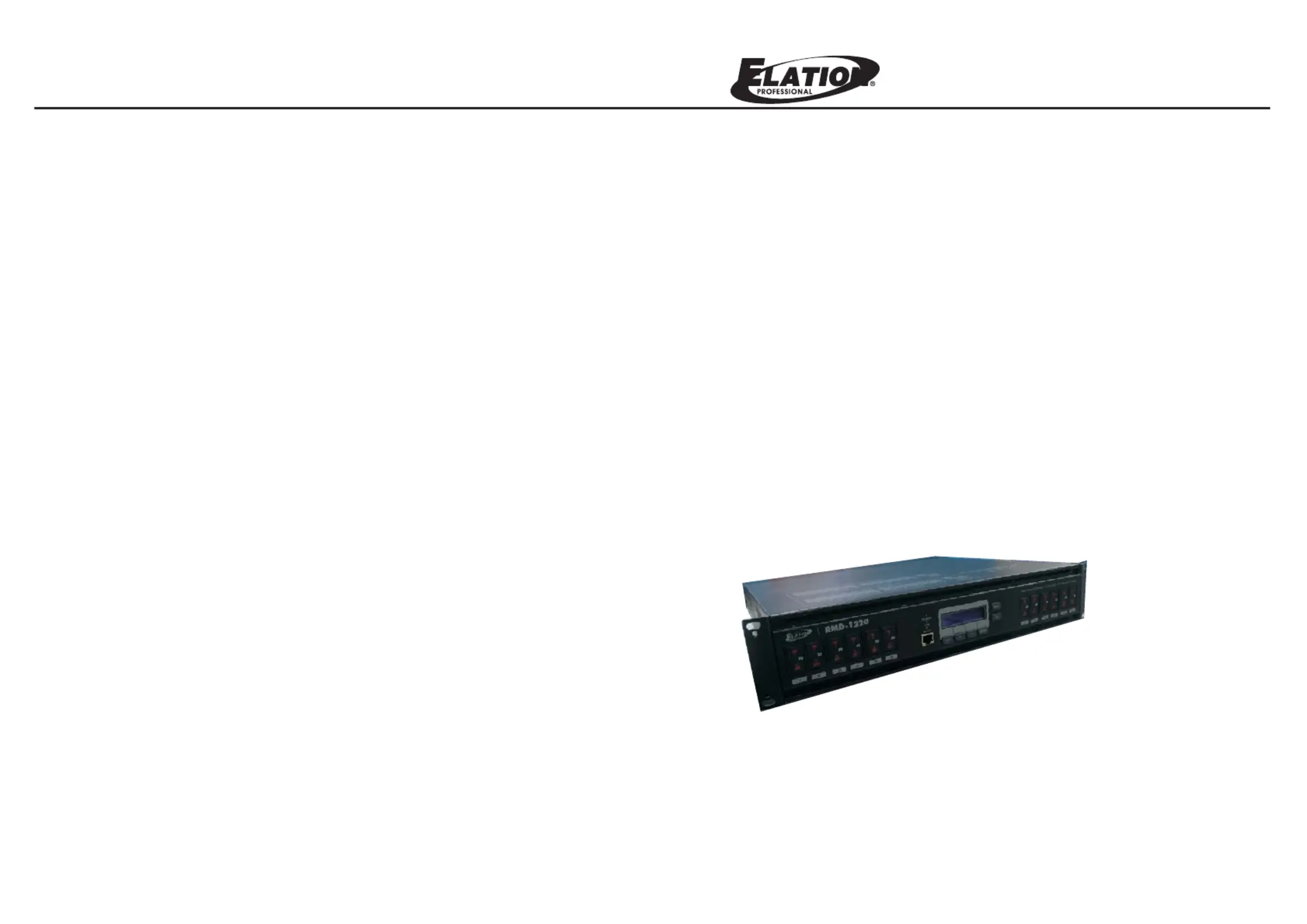

User Instructions
RMD-1220
It is important to read this instruction book prior to installing or using your new
p
roduct for the first time.
Rack Mount Dimmer-12Channel
General Introduction...................................................................2
Overview.....................................................................................4
Operation Guide.........................................................................8
1) Home(Live display)............................................................................................8
2) Local Control......................................................................................................9
3) Address............................................................................................................10
4) Scenes REC.....................................................................................................12
5) Play Scene.......................................................................................................14
6) Curves..............................................................................................................16
7) Setup................................................................................................................17
8) Information........................................................................................................21
Contents
Technical Specifications............................................................3
Power Requirements
Dimming Capacity
Dimmer Output Connections
Control Inputs
Dmx Output
DMX Input
Physical
Environment(Oprating)
Main Power & Output Termination........................................................................7
Front View.............................................................................................................4
Rear View..............................................................................................................6
Menus....................................................................................................................8
Contents
Features
Physical Dimensions
Important Safety Introductions.................................................1
For Your Safety
Caution

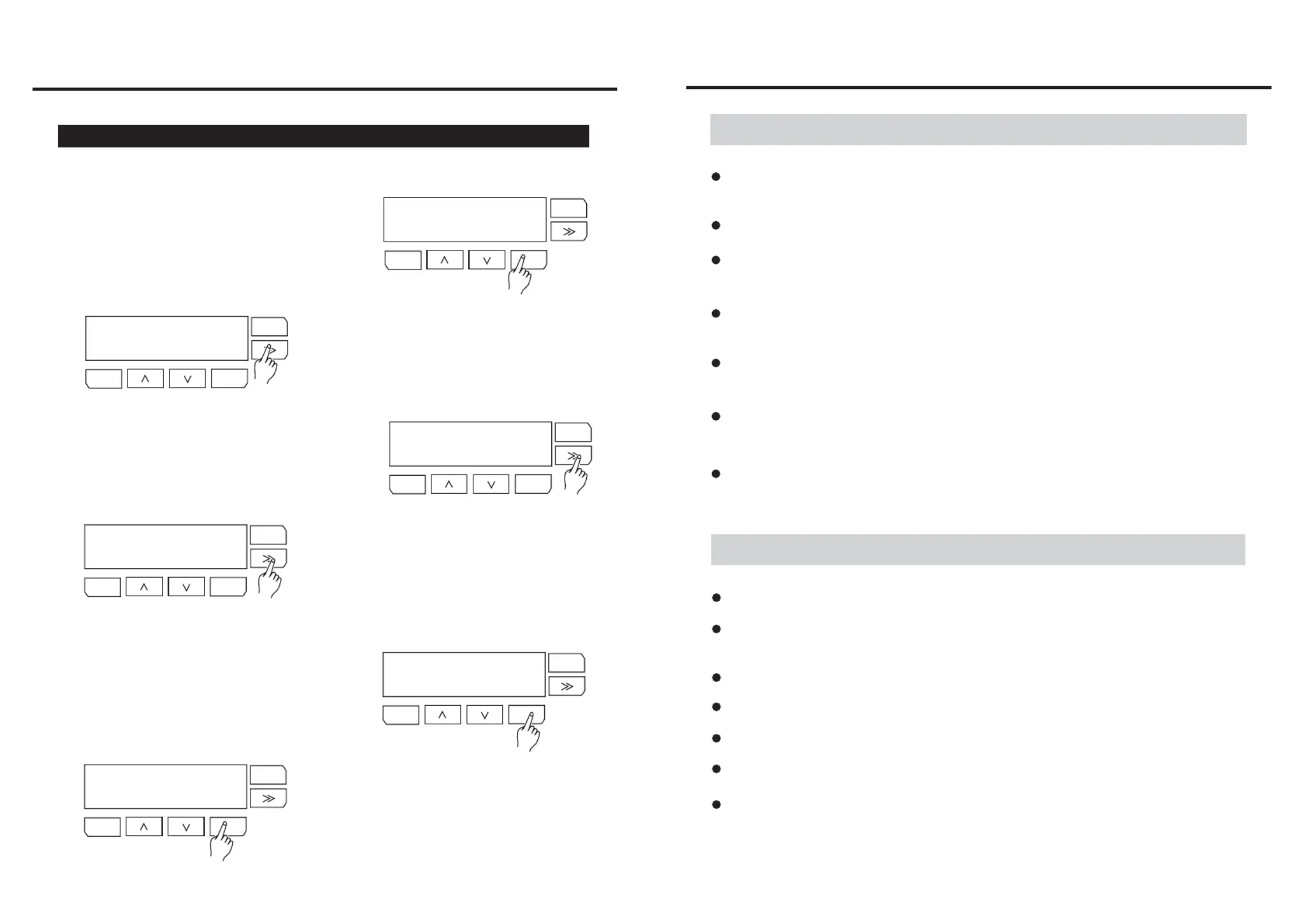

7) SETUP
2. Tap ENTER button to select Software
Version, the LCD will show you the
version number and date. Tap ESC or
ENTER button will back to the previous
menu.
3. Tap >> button to select Temperature and
use ENTER button to enter in. Two
temperature are displayed, one for the
left heat sink(dimmer1~6) and the other
for the right heat sink(dimmer 7~12).
Tap ESC or ENTER button will return to
previous menu.
1. Use UP/DOWN button to select and tap
ENTER button to enter INFORMATION
menu. You can use >> button to scroll
Software Version and Temperature.
22. Secondly tap ENTER button to release
all parameter to default or use ESC
button exit without record.
ENTER
MENU
ESC
ENTER
MENU
ESC
ENTER
MENU
ESC
ENTER
MENU
ESC
Operation Guide
Factory Default
Confirm
8) INFORMATION
Information
Software Version
SOFTWARE
Ver00.01 Jun07
TEMPERATURE
L=+029 R=+029
ENTER
MENU
ESC
4. Tap ESC button to exit and back to
HOME page.
Information
Temperature
-21-
This menu is used to view the software version and the internal dimmer pack
temperature.
ENTER
MENU
ESC

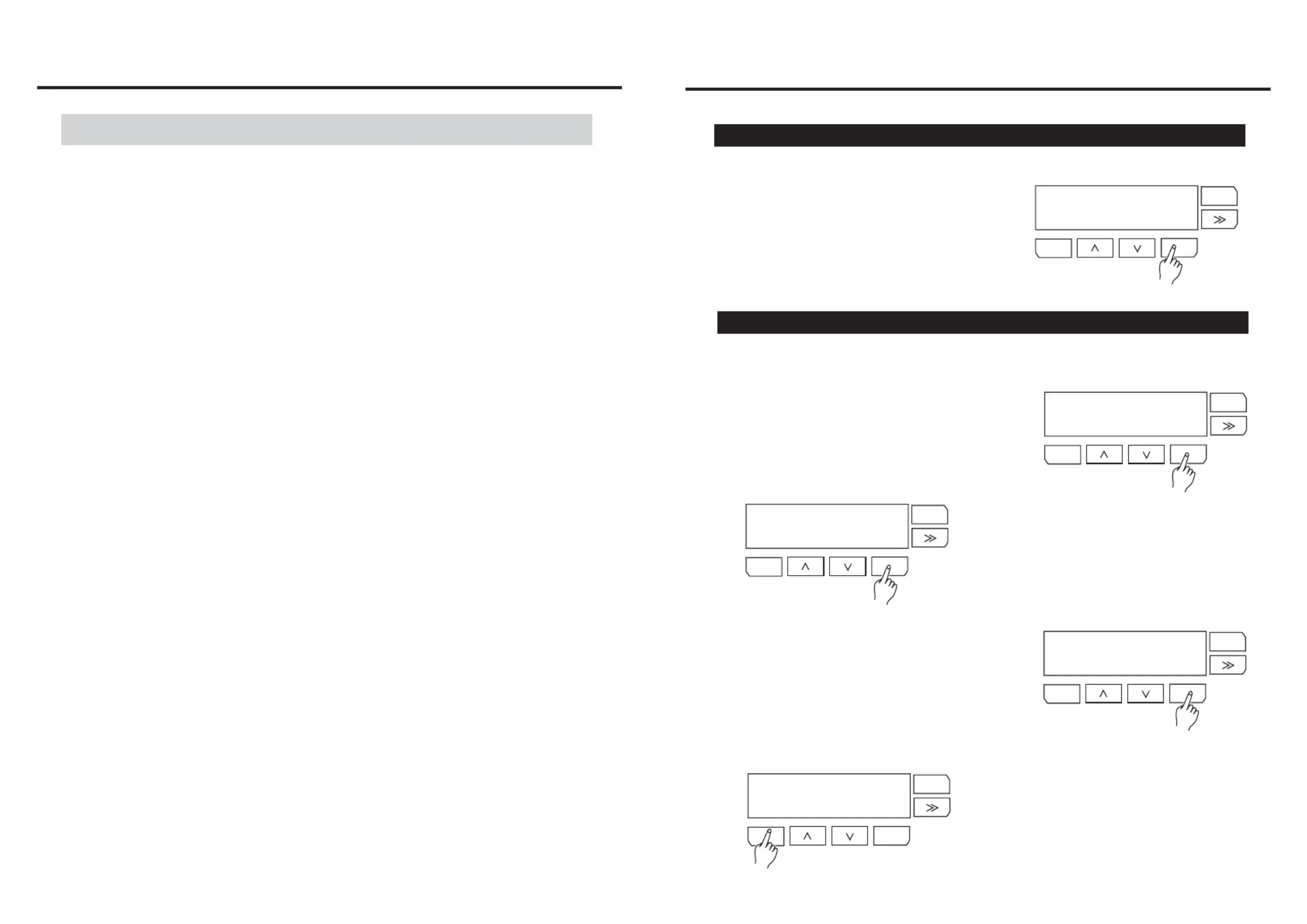

7) SETUP
19. When selected Silent, The Fans are running
in lower speed and the temperature not
higher than 90 degree C.
20. Tap ENTER button to save your set
or use ESC button to exit without
record.
18. When selected Full On,all the time
the Fans keep in full speed on.
17. Use >> button to scroll Normal, Full On
or Silent. When selected Normal, the dimmer
pack will keep temperature not higher than 70
degree C.
16. Use >> button to select and tap
ENTER button to enter FAN COOLING
menu. This menu allow you to control
how the internal cooling fans operate.
The menu gives you a choice of Normal,
Full On and Silent.
ENTER
MENU
ESC
ENTER
MENU
ESC
ENTER
MENU
ESC
ENTER
MENU
ESC
ENTER
MENU
ESC
FAN COOL[Normal]
Normal
Operation Guide
FAN COOL[Normal]
Normal
FAN COOL[Full On]
Full On
FAN COOL[Silent]
Silent
FAN COOL[Silent]
Silent
21. Use >> button to select and tap
ENTER button to enter DEFAULT
menu.
Factory Default
Confirm
-20-
Improvement and changes to
specifications, design and this
manual, may be made at any time
without prior notice.
All Rights Reserved!
Important Safety Instructions
Never open this product under any circumstances. Any repairs or internal
adjustments should be made only by a trained technician.
Never operate this product with the cover removed.
Do not use your unit immediately after transporting it from a cold place to
a warm place, as condensation cause the unit to malfunction.
To prevent fire or shock hazard,keep your unit away from humid areas and
abnormally hot places.
The apparatus shall not be exposed to dripping or splashing and that no
objects filled with liquids, such as vases, shall be placed on the apparatus.
The ventilation should not be impeded by covering the ventilation opening
with items, such as newspaper, table-cloths, curtains, etc.
Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus that produce heat.
Caution
This product must be grounded.
This product is not for domestic use .
Disconnect the power when not use for extended period.
Do not use the unit in places subject to excessive humidity, vibration or
bumps.
No user serviceable parts inside, do not attempt repairs. Should you product
fail, contact your local dealer.
Provide occasional ventilation during use.
For Your Safety
All Rights Reserved!
This product should be installed and serviced only by suitable qualified personnel.
-1-
