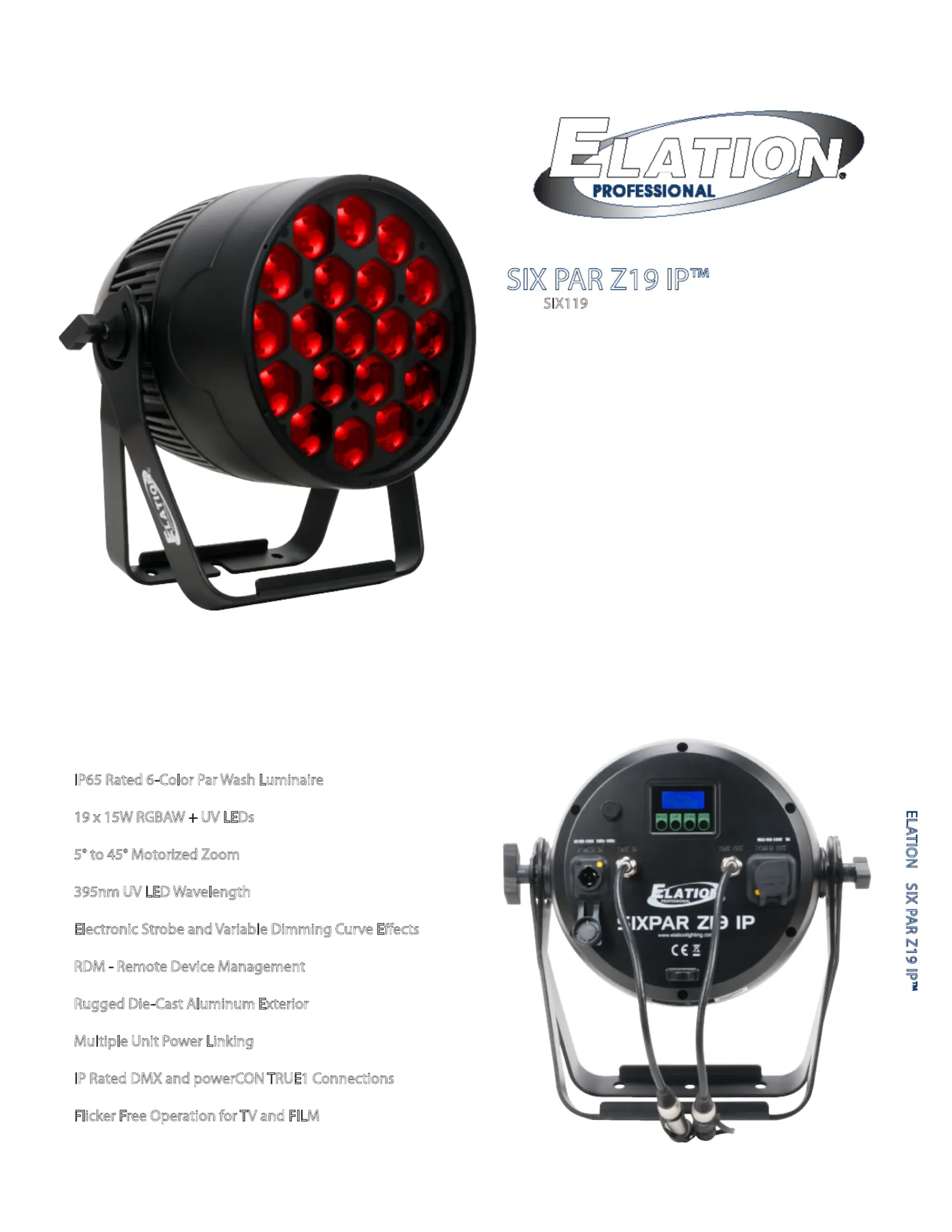

SIX PAR Z19 IP™
SKU# SIX119
The SIX PAR Z19 IP™ is an IP65 rated 6-color par wash luminaire
with zoom, featuring (19) individual 15W 6-IN-1 RGBAW+UV
LEDs, 5°to 45° motorized zoom, UV LED Wavelength of 395nm,
electronic strobe and variable dimming curve eects, IP rated
5pin DMX and IP65 Locking Power Cable in/out connections,
LCD menu display with (4) touch button control panel,
adjustable yoke / oor stand, multiple unit power linking, RDM
(remote device management), rugged die-cast aluminum
exterior, icker free operation for TV and FILM, and a multi-
voltage universal auto switching power supply (110-250v).
FEATURES
IP65 Rated 6-Color Par Wash Luminaire
19 x 15W RGBAW + UV LEDs
5° to 45° Motorized Zoom
395nm UV LED Wavelength
Electronic Strobe and Variable Dimming Curve Eects
RDM - Remote Device Management
Rugged Die-Cast Aluminum Exterior
Multiple Unit Power Linking
IP Rated DMX and powerCON TRUE1 Connections
Flicker Free Operation for TV and FILM
Specications are subject to change without notice ©Elation Professional 02/01/18
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu
ELATION I SIX PAR Z19 IP™ I Product Specification Sheet
SOURCE
(19) 15W RGBAW + UV LEDs
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to: Environmental
PHOTOMETRIC DATA
13,240 LUX 1,230 FC @9.8’ (3m) (5° Full ON)
831 LUX 77 FC @9.8’ (3m) (45° Full ON)
COLOR
RGBAW + UV
EFFECTS
5° - 45° Beam Zoom
RGBWA + UV Color Mixing
Color and Chase Pro am Macrosgr
Electronic Strobe and Variable Dim Curves
CONTROL / CONNECTIONS
(4) DMX Channel Modes (14 Total Channels)
4 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)
IP Rated 5pin DMX In/Out
IP65 Locking Power Cable In/Out
SIZE / WEIGHT
Length: 14.3” (363mm)
Width: 12.0” (305mm)
Vertical Height: 15.6” (396mm)
Weight: 27.0 lbs. (12.2 kg)
ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
282W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm
APPROVALS / RATINGS
INCLUDED ITEMS
IP65 Locking Power Cable
spe ic cations
I
AT S PEL ION IX AR Z19 IP™
I
www.elationlighting.com
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | w.elationlighting.com | info@elationlighting.comww
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu
DIMENS ONA DII L AGR AMS
PR O C S CAT NS PHOTOME TR I DATADU T PECIFI IO C
OP ONA AC S R STI L CE SO IE
ORDER CODE ITEM
NARROW CLAMP P PRO 2” Wrap Around Clamp
NEU088
3' (1m) IP65 Locking Power Link Cable
Additional cable lengths available
3 m 9.8 ft 4 m 13.1 ft 5 m 16.4 ft
5° Beam
Diameter
0.26 0.9 0.35 1.1 0.43 1.4
15° Field
Diameter
1 3.3 1.3 4.3 1.6 5.2
lux fc lux fc lux fc
RED LEDs 1,859 173 1,211 113 853 79
GREEN LEDs
6,220 578 3,918 364 2,755 256
BLUE LEDs
915 85 557 52 383 36
WHITE LEDs
6,221 578 3,876 360 2,750 255
AMBER LEDS
1,351 126 824 77 687 64
UV LEDS
121 11 80 7 44 4
FULL ON
13,240 1,230 8,371 778 5,859 544
3 m 9.8 ft 4 m 13.1 ft 5 m 16.4 ft
45° Beam
Diameter
2.49 8.2 3.31 10.9 4.14 13.6
55° Field
Diameter
3.12 10.2 4.16 13.6 5.2 17.1
lux fc lux fc lux fc
RED LEDs 132 12 78 7 49 5
GREEN LEDs
371 34 219 20 153 14
BLUE LEDs
68 6 41 4 29 3
WHITE LEDs
431 40 246 23 152 14
AMBER LEDs
80 7 48 4 35 3
UV LEDs
13 1 10 1 8 1
FULL ON
831 77 486 45 309 29
MIN ZOOM - 5° Beam Diameter
MAX ZOOM - 45° Beam Diameter
16 Bit High Resolution Dimming
