Seite 1/8
DESIGNER HOOD
MODEL: COVO 669/90GP
COVO 668/90
CASA 679/90
COVO 779/90
VETRINO EH-D9160SL(BK)
VETRINO EH-D9161SL(BK)
Owner's Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate
*Product image is for illustration purpose only. Actual product may vary depending on the model.
Please read this instruction carefully. It is advisable to keep this instruction
manual in a safe place for future reference.
SAFETY PRECAUTIONS
1 Keep electrical appliances out of reach from children. Do not let them to .
operate the appliances without supervision.
2. To protect against the risk of electrical shock, do not immerse the product,
cord or plug into water or any other liquid.
3. This product is for household and indoor use only.
4. This product is not intended for use by person (including children) with
reduced physical, sensory or mental capabilities unless they have been
given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
5. If the power cord or plug has damaged, it must be replaced by the service
centre or a qualified service technician to avoid hazard.
6. Before installation,check if the mains supply voltage is matched with the
voltage stated on the rating plate of the hood.
7. There must be adequate air ventilation of the room when the cooker hood
is used with the cooking appliances with burning gas or other fuels.
8. Ensure that the installation of ducting complies with the standard of local
building, gas and electrical authorities.
9. Do not ignite flames in the pans.
10.There is a risk of fire if cleaning is not carried out in accordance with this
instruction.
1

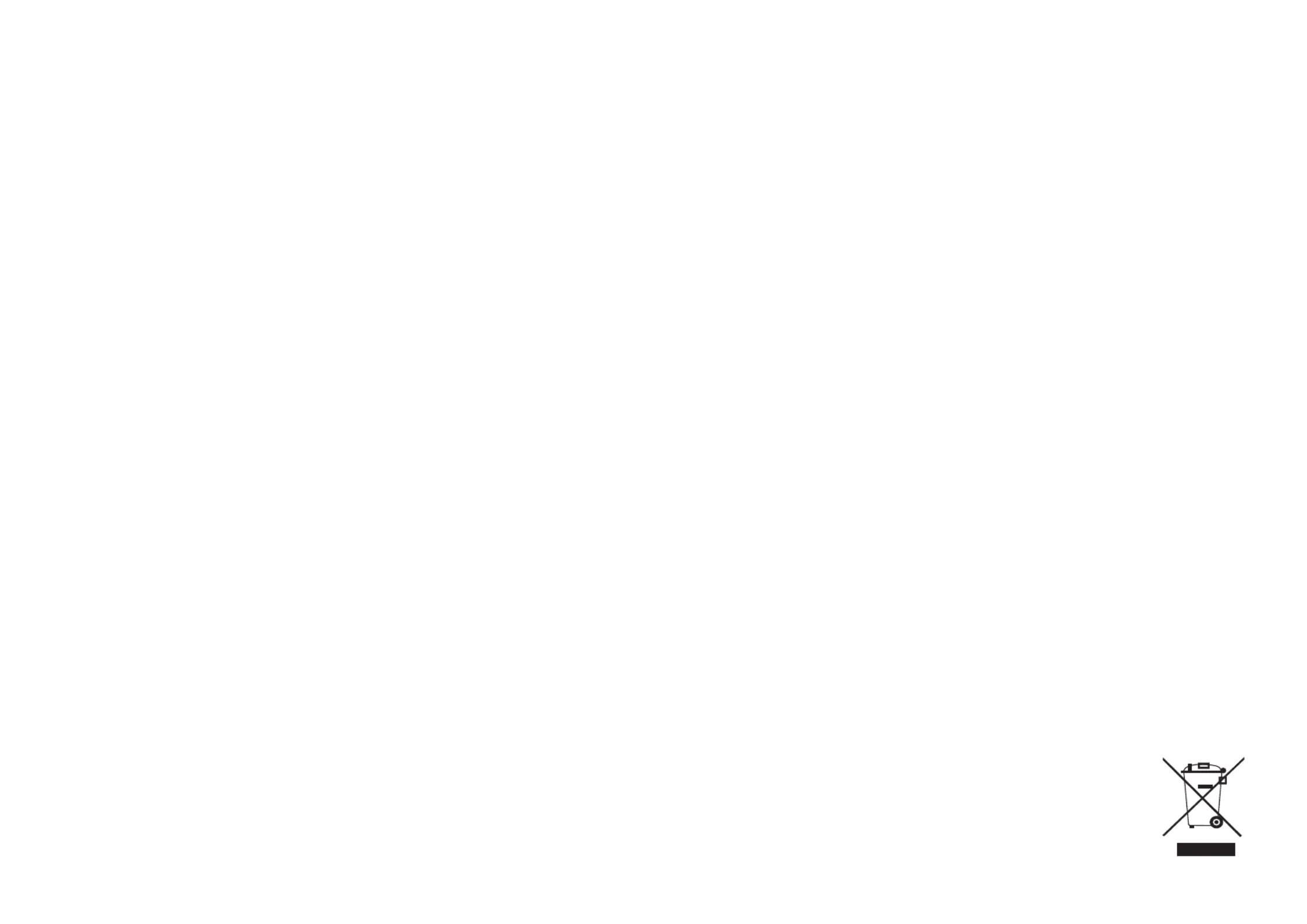

NOTICE
This product must not be disposed together with domestic
waste. It has to be disposed at an authorized place for
recycling of electrical and electronic appliances. By
collecting and recycling waste, you help to save natural
resources and make sure the product is disposed in an
environmental friendly and healthy way.
14

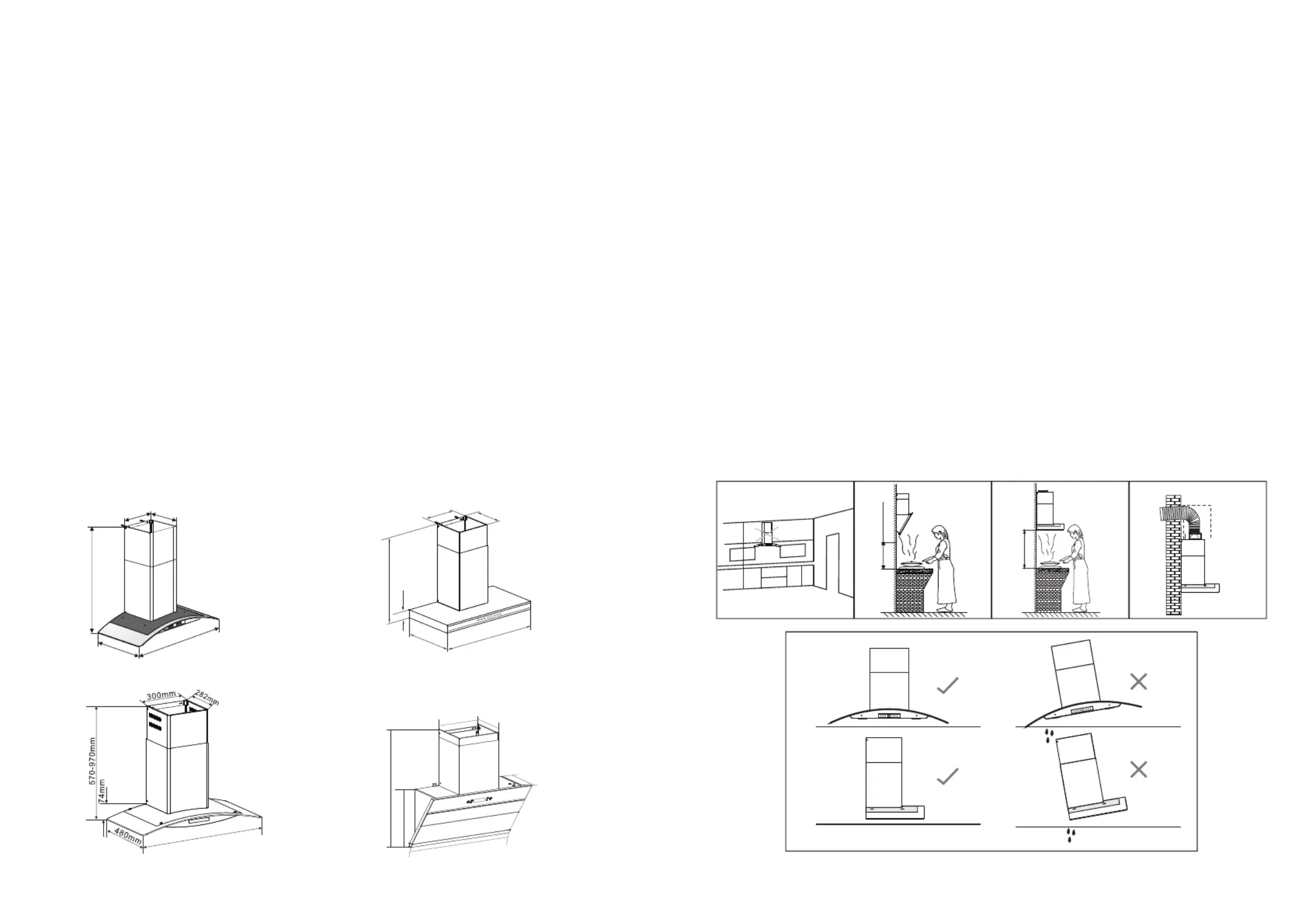

INSTALLATION REQUIREMENT
1. Do not install the cooker hood where there are many doors or windows
in order to avoid affecting the exhaust efficiency of the cooker hood
caused by air convection. (Fig. 1)
2 Install the cooker hood right above the hob. The recommended distance .
between the hob and the lower edge of the cooker hood is minimum
300mm and maximum 350mm(Or minimum 650mm and maximum 700mm).
(Fig 2)
3 In order to get the optimum performance, do not elongate the exhaust .
pipe too long, and try to make the bend of the exhaust pipe less and
biggest, ensure the connection is airproof. (Fig. 3)
4 After hanging the unit on the wall, ensure the hood is level and vertical .
(Fig. 4).
5 The air outlet must not be connected to chimney flues or combustion gas .
ducts. The air outlet must under no circumstances be connected to
ventilation ducts for room in which fuel-burning appliances are installed.
6 The installation of the exhaust duct is optional when the charcoal filter is .
installed for recirculation purpose. Installation of the charcoal filter will
gradually reduce the suction power and reduced the suction
performance of the unit.
LEVEL
VERTICAL
Fig.4
LEAN
LEAN
13
2
65 0~ 700 mm
Fig.2 Fig.3Fig.1
Fig.2
30 0~ 35 0m m
CLEANING AND MAINTENANCE
●The hood must always be disconnected from the electricity supply before
carrying out the maintenance.
● Clean the hood with damp cloth, hot water and mild detergent. Do not use
chemical, steel, wooden or abrasive cleaners to clean the hood.
● Clean the oil cups when they are more than half filled to avoid the oil from
spilling.
● Remove the filter, wash in hot soapy water, dry and fit back into the hood.
Do not use the hood without the filter installed.
MAIN SPECIFICATION
Rated Voltage : 220-240V/50Hz
LED Light : 2 x 2W
Suction Power : 1,000m³/hr □
1,400m³/hr □
Motor Power : 250W □
200W □
Product Dimension:
Covo 668/90 & Covo 669/90GP
Casa 679/90
VETRINO EH-D9160SL(BK)
Covo 779/90
VETRINO EH-D9161SL(BK)
895mm
300mm
283mm
520-920mm
70mm
480mm
565-965mm
475mm
895mm
300mm
28 3m m
895mm
865 1180-
322
360
895
465
39 0
