Seite 1/6

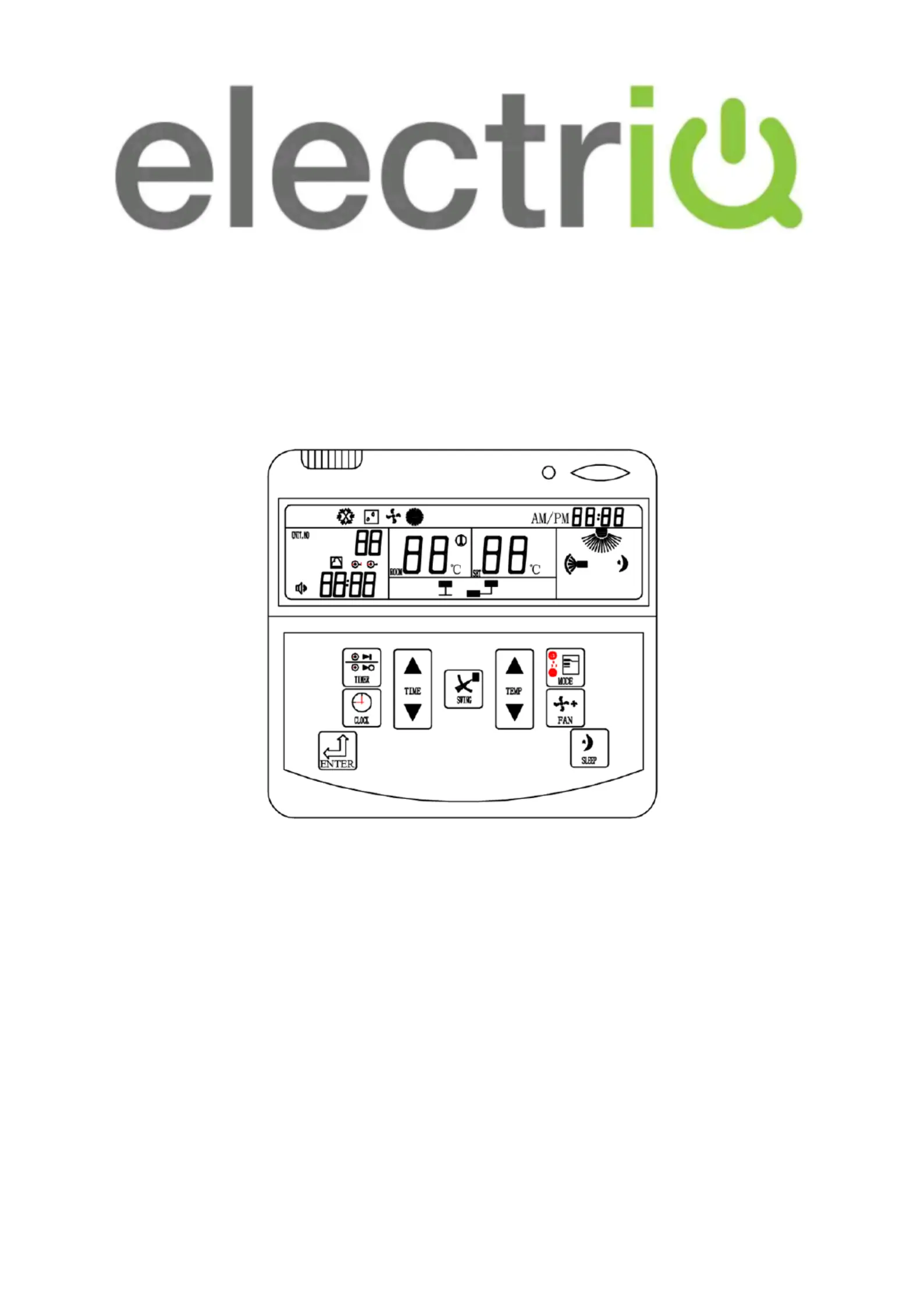

USER MANUAL
WIRED CONTROLLER
IQOOLSMART12HP-WiredCtrl
Suitable for IQOOL-SMART12HP and IQOOL-SMART15HP air conditioners
Read these instructions carefully and keep them safe for future reference.
2
SAFETY WARNINGS
• Before attempting installation, the Installation Manual must be fully read and
understood.
• This controller is compatible with the IQOOL-SMART12HP and IQOOL-SMART15HP air
conditioners.
• When choosing a suitable position for installation, consideration should be made to
avoid external influences which may damage the unit, shorten its life, or make the unit
unsafe. Places to avoid include:
1. Areas in the vicinity of flammable gasses.
2. Areas where the unit may be splashed by liquids or oils.
3. Areas likely to experience extremes of temperature.
4. Areas exposed to high levels of electromagnetic radiation.
5. Any place with high levels of humidity.
• This unit should be installed by a competent person. If unsure, professional advice
should be sought.
• Do not operate this device with wet hands or allow it to come into contact with water.
An electric shock or short circuit may occur.
• Do not attempt to modify or repair the unit. This must only be attempted by a qualified
engineer under the instruction of the manufacturer.
• Ensure that the power supply is disconnected from the unit before attempting to open
the shell.
• Ensure the interconnecting cables are suitably rated for the application and that they
are routed in a way to prevent damage during installation and use.
• This unit is only designed for use with the air conditioners listed. Do not attempt
installation with any other equipment without confirmation from the manufacturer.
• Ensure that any fixings used to wall mount the unit are suitable for the type of wall.
• Before drilling holes, care should be taken to avoid any hidden pipework or cables. If in
doubt professional advice should be sought.
• Maintenance and repair of this product should only be carried out by a qualified
professional.
• Keep this manual safe for future reference or for use by a third party.
• The correct use of this product is detailed in this manual. Failure to follow the
instructions may result in damage or injury.
• All installation and service carried out on the appliance must conform to the
corresponding local standards, laws and regulations.
• Due to continuous product development, the product may vary slightly from the
illustrations provided.
• The length of the supplied cable is 2.5m if this needs to be extended, it must be done so
by a qualified engineer or a suitably competent person.
3
INSTALLATION
Use the screws provided (M4x25) to fix the controller backing plate onto the wall,
ensuring that it is securely connected before proceeding. Depending on the type of wall,
suitable fixings should be purchased.
NOTE: Do not overtighten the screws, as this may cause the backing plate to distort or
break.
Remove the wired controller from the backing plate using
a flat head screwdriver in the gap between the backing ed
plate and the controller. Once the two parts are
separated, the remainder can be unclipped.
Pass t e through the opening in the rear of the
backing plate, ensuring it is positioned so it will not be
trapped or damaged during installation. Allow enough cable
to pass through for ease of installation and future
maintenance.
Connect the signal wire between the wired controller
and the air conditioner. The cable with the connector
for the controller is fixed to the rear of the air
conditioner.
If the signal cable provided is too short it can
be replaced with suitable 5-core shielded
cable up to a maximum length of 20m.
