Product overview: The Elite Screens ZU12V is a wireless Radio Frequency trigger that synchronizes the
projector’s power cycle utilizing the power to wirelessly drop and raise all Elite Screens electric projection
screens.
ZU12V
Universal Wireless 12 Volt Projector Trigger
User Guide
v12.1 10/12
Product Introduction

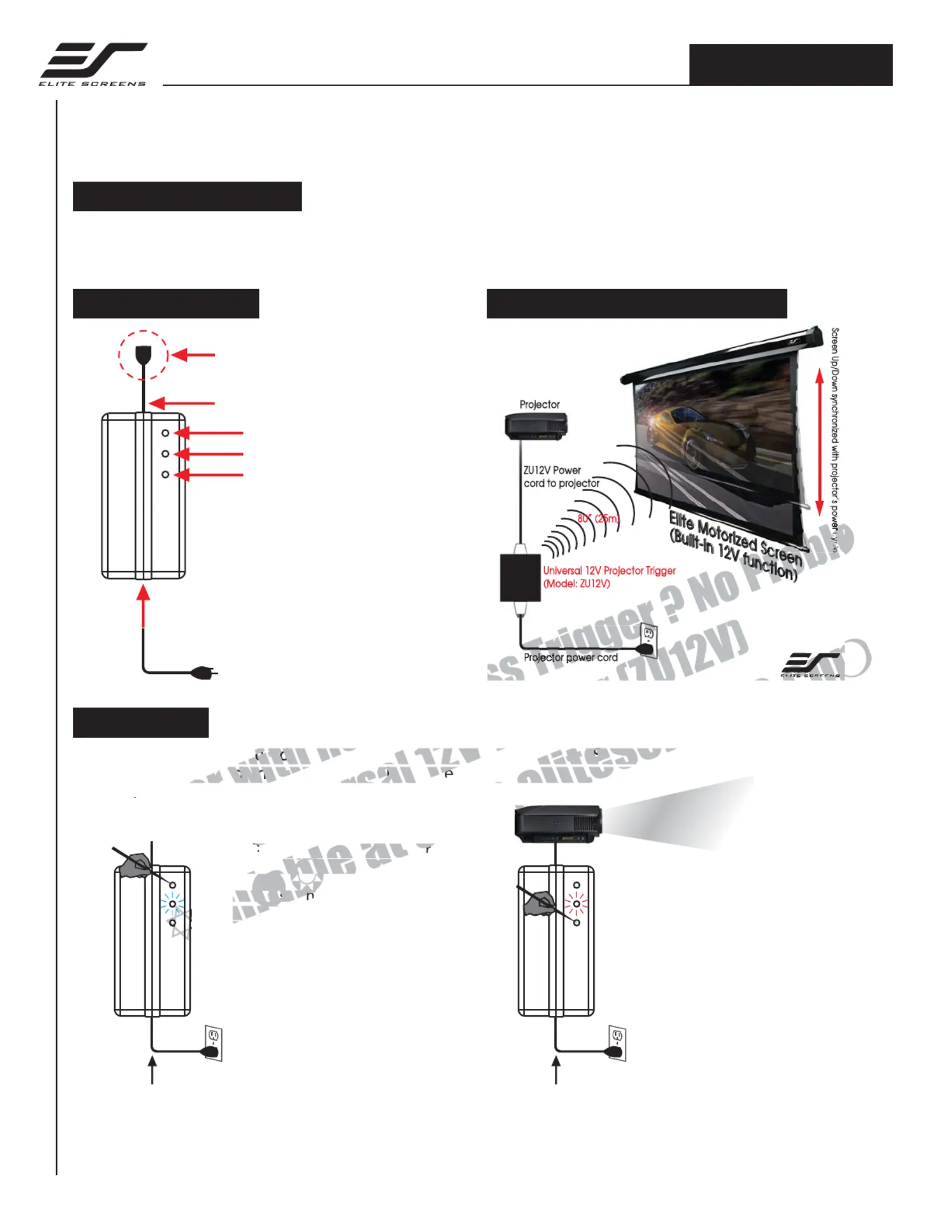

Trigger DiagramTrigger Operation Diagram
Disconnect the power o from the power outle on your Elie creens electric screen. Unplug the
projector’s power cor ad connect it to tetrigger as shown above (Fig. 1). Follow by the synchronization
process.
Instructions
Connector to projector
Trigger power cord
Button 1
Trigger light
Button 2
Projector power cord
(Not included)
Projector power cord
Insert
(Fig. 1)
1. Connect the trigge power cord,
light turnsred after connection
2 Pres & hold with a [Button 1]
sharp object, do not release
until after step 4
3. Connect the electric screen’s
power cord into the outlet
while holding down [Button 1]
4. Trigger light will start to blink red
5. Release [Button 1] after 3
seconds (screen will drop
automatically). Light blinks blue
after release
Projector power cord
6. Connect the trigger power cable
to the projector
7. Turn on the projector, press &
hold [Button 2] for 3 seconds
8. Light will blink red to indicate
synchronization
9. Synchronization is now
complete. Test the synchroni-
zation by turning the projector
off, screen will retract auto-
matically if the synchronization
is successful.
NOTE: Operation range for ZU12V is 25 meters. ZU12V is only compatible with Elite’s electric screens.
