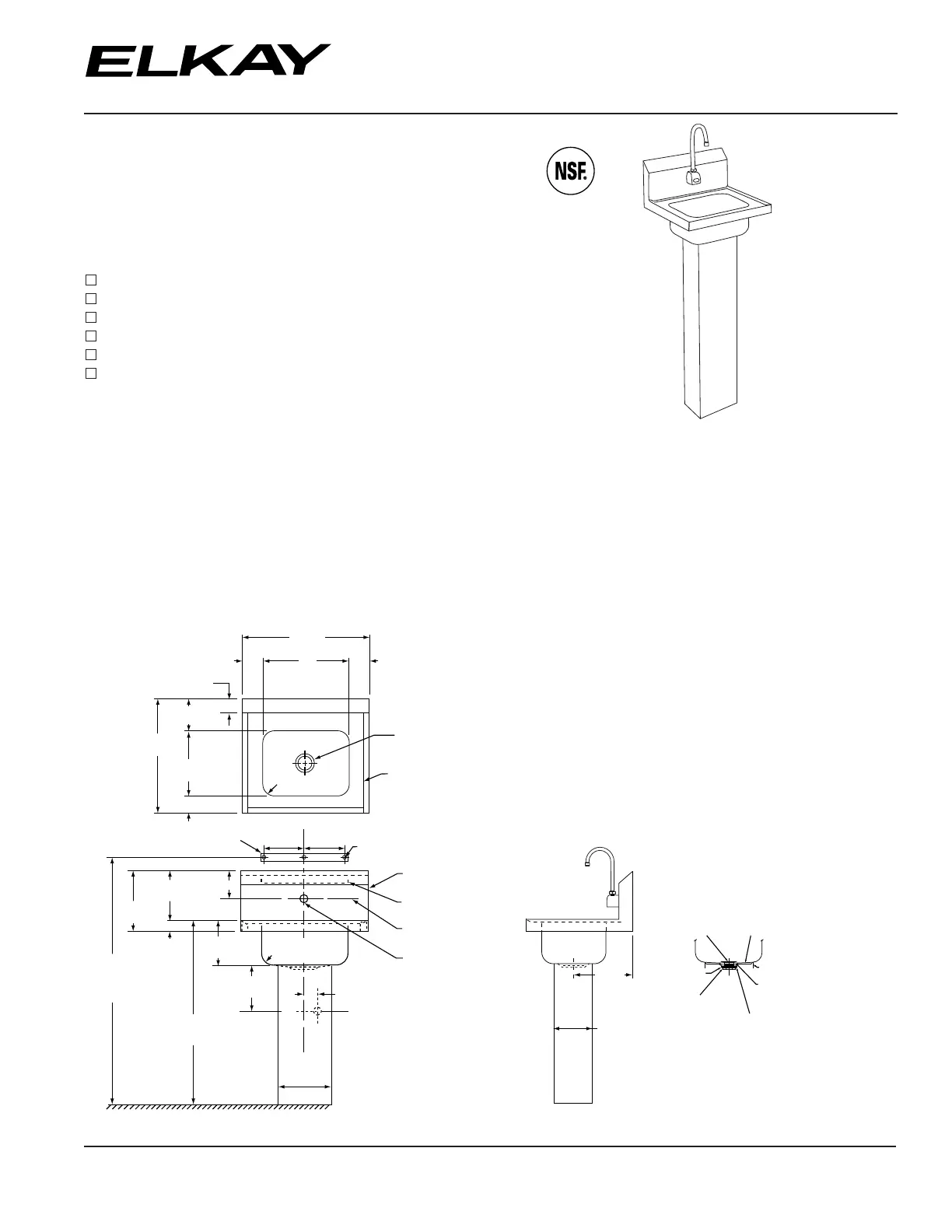

GENERAL

CHSP1716Type 304 (18-8) stainless steel hand wash-up sink.

Basin has 1-3/4" (45mm) radius coved corners. Full length 7"

(178mm) high backsplash. Exposed surfaces have a brushed

finish. Furnished with stainless steel pedestal and wall hanger.

Carries NSF International Certification.

(CHECK MODEL SPECIFIED)

MIXING

MODELFAUCET

DRAINTRAPVALVE

CHSP1716SACCLK722ACLK8LK500NONE

CHSP1716SACMCLK722ACLK8LK500LK724

CHSP1716SACTMCLK722ACLK8LK500LK723

CHSP1716SBCLK722BLK8LK500NONE

CHSP1716SBMCLK722BLK8LK500LK724

CHSP1716SBTMCLK722BLK8LK500LK723

LK722ACSensor-operated, non-mixing (tempered water),

backsplash-mounted gooseneck faucet with adjustable sensor

eyes. A continuous beam is emitted from sensor. The sensor

faucet is activated by user placing hands under the spout.

Tempered water will flow as long as hands remain within sen-

sor range. When hands are removed, the water stops automat-

ically based on shut off delay settings. The sensor then resets

and is ready for the next user. AC powered, chrome plated -

solid brass body construction and 12-3/4" (324mm) high (bot-

tom of base to top of spout) 8-3/4" (222mm) from aerator to

base, 5-3/8" (137mm) reach C.P. spout with 2.0 gpm laminar

flow control on spout end. Includes vandal-resistant, water-

resistant sensor control module with armored vandal-resistant

control and power cables. 12V DC plug-in voltage adapter,

slow-closing piston operated solenoid valve, in-line filter with

clean out trap, and 3/8" (10mm) copper fittings for supply tube

furnished by contractor. Control circuit is solid state, has

adjustable sensor range (6" [152mm] preset to 30" [762mm]),

shut off delay preset at 1 second and field adjustable to 2, 4 or

8 seconds, and automatic time-out feature (to prevent sink

overflow) is preset at 0 seconds and is field adjustable to 15, 30

or 60 seconds.

LK722BSame as LK722AC except battery powered and has a

battery holder with (4) AAbatteries.

LK8Chrome plated grid strainer with 1-1/2" (38mm) O.D.

tailpiece.

LK500Satin chrome cast brass "P" trap with cleanout, chrome

plated 1-1/2" (38mm) O.D. tubing waste arm to wall, and wall

flange.

LK723Anti-scald thermostatic mixing valve with nickel-plated

brass body 1/2" (13mm) SWT inlets and outlet connections,

check valves on inlets and a mixed temperature range of

80°- 120°F. Certified under ASSE1016.

LK724Mechanical mixing valve with C.P. brass body, 3/8"

(10mm) compression inlets and outlet connections, and check

valves on inlets.

Elkay

2222 Camden Court

Oak Brook, IL 60523

PART NO. 74180318

Printed in U.S.A.

©2003 Elkay

(10/03)4-21

www.elkayusa.com

Model CHSP1716SACC

Model CHSP1716SBC

(Pedestal Mount)

In keeping with our policy of continuing product improvement, Elkay reserves the right to change

product specifications without notice.

2-3/8"

(60mm)

2"

(51mm)

3-7/8"

(98mm)

9-1/4"

(235mm)

2-3/8"

(60mm)

WALL 

HANGER

1-3/4" R

(45mm)

8-1/2"

(216mm)

7"

(178mm)

4"

(102mm)

1-3/4" R

(45mm)

5-3/4"

(146mm)

5-3/4"

(146mm)

1/4" (6mm) DIA. 3 HOLES

1-1/2" (38mm)

I.P.S. WASTE

1-1/2" (38mm)

6"

(152mm)

5"

(127mm)

36"

(914mm)

FLOOR TO RIM

41-7/8"

(1064mm)

TO C

L

OF HOLES

FINISHED FLOOR

1-1/2"

(38mm)

15-1/2"

(394mm)

2-3/8"

(60mm)

2-3/16" DIA. HOLE

(56mm)

RAISED RIM AT

FRONT & SIDES

SINK 

BOWL

DRAIN

FITTING

RUBBER

WASHER

LOCKNUT

PEDESTAL

CARDBOARD SHIM

(BETWEEN WASHER

& LOCKNUT)

PLUMBERS PUTTY

(BETWEEN SINK BOWL

& DRAIN FLANGE)

12"

(305mm)

16-3/4"

(425mm)

1-1/4" (32mm) DIA.

1 HOLE

BACKSPLASH SLOPED

AT 45° ANGLE

WALL HANGER

12" (305mm) LONG

8-1/2"

(216mm)

8-11/16"

(221mm)

5-3/4"

(146mm)

(4) 3/8" DIA. HOLES ARE

PROVIDED FOR ANCHORING

PEDESTAL TO FLOOR

(ANCHORS SUPPLIED BY OTHERS)

C

L

C

L

C

L

OF FAUCET

DRILLING

C

L

Hand Wash-Up Sink with Pedestal and

Sensor Faucet – ACor Battery Powered

Models CHSP1716SAC and

CHSP1716SBSeries

®

SPECIFICATIONS
