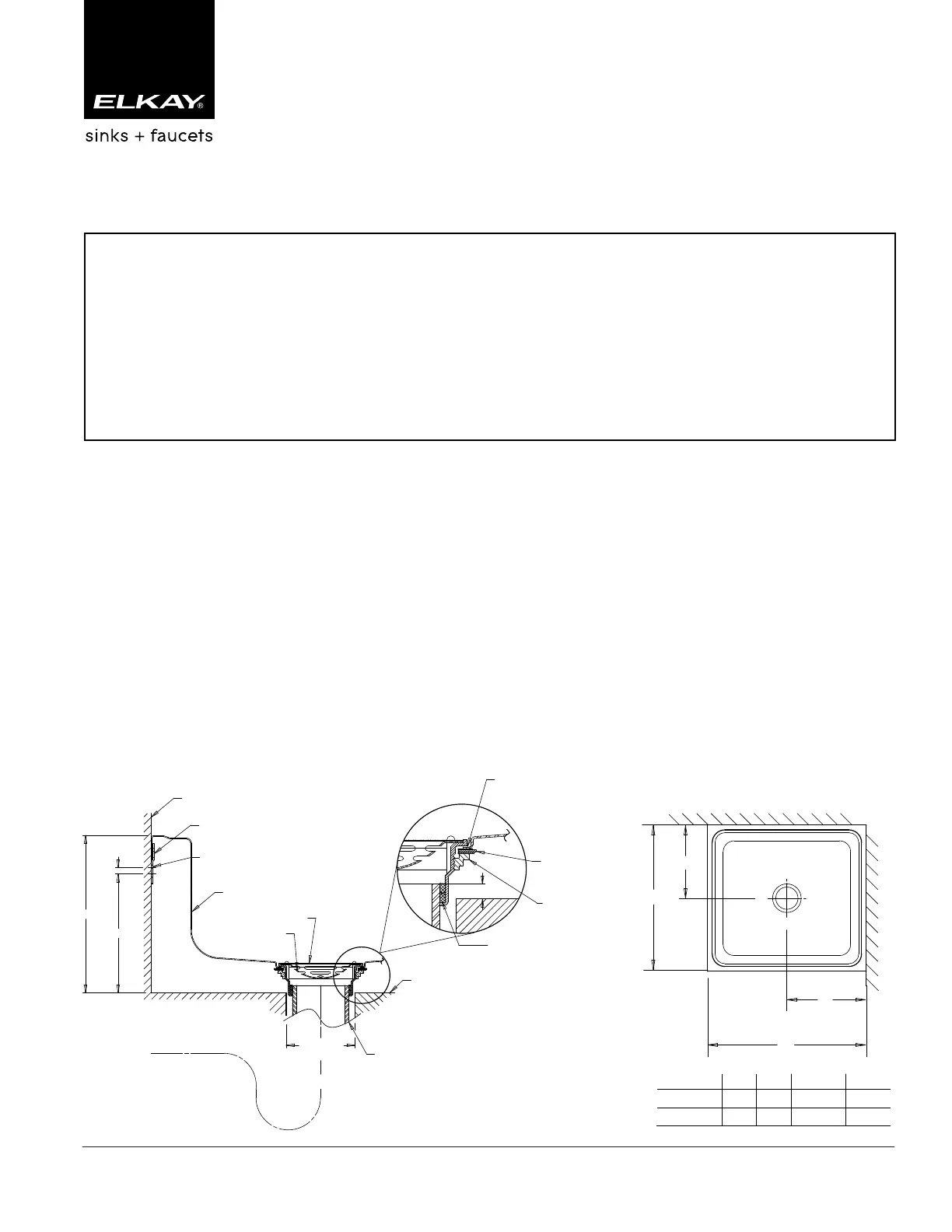

Floor Service Sink Installation

Installation Instructions

ATTENTION INSTALLER:

1) ELKAY RECOMMENDS THAT FLOOR SERVICE SINKS SHOULD BE INSTALLED BY A

PROFESSIONAL EXPERIENCED INSTALLER.

2)

ELKAY IS NOT RESPONSIBLE FOR SINK FOR SINK IF DAMAGED DURING INSTALLATION.

3) INSPECT SINK FOR DAMAGE PRIOR TO BEGINNING INSTALLATION.

4) METAL EDGES MAY BE SHARP — USE CAUTION WHEN HANDLING.

5) FOLLOW ALL LOCAL PLUMBING AND BUILDING CODES.

INSTALLING SINK

1) Provide a 4-1/4

"

diameter hole in the floor as

shown per the rough in dimension based on the

sink model.

2) The waste pipe should be centered in the center

of the drain hole in the sink and project 3/4

"

above the floor. The installation must include a

“trap” under the floor.

3) Mount the wall hanger to the wall in the required

position. Anchors and fasteners supplied by

others.

4) Install the strainer to the sink using plumbers

putty or silicone caulk.

5)

Place the sink into position over the waste

pipe, making sure the rear rim engages the

wall hanger.

6) Remove the grids from the strainer.

7)

Seal drain in compliance with local code

requirements.

8) Reattach the grids to the strainer body.

LOCKNUT

FLAT GRID

DOME GRID

D

4-1/4" DIA.

ROUGH IN

7-5/8"

3/8"

10"

OF

SLOTS

3/4"

C

(2) RUBBER

WASHERS &

(1) FIBER

GASKET

SEAL DRAIN IN

ACCORDANCE

WITH LOCAL CODE

REQUIREMENTS

SIDE

WALL

BACK

WALL

q

q

FINISHED

WALL

WALL

HANGER

1/4" X 1"

SLOTS

q

3" WASTE PIPE

(IRON,PVC,& CV)

MUST INCLUDE

A TRAP

UNDER FLOOR

OF

WASTE

PIPE

q

FINISHED

FLOOR

PLUMBER’S PUTTY

OR SILICONE CAULK

BETWEEN SINK FLANGE

AND STRAINER BODY

B

A

SINK

MODEL A B C D

XXX2523 25" 23" 12-1/2" 11-1/2"

XXX3321 33" 21" 16-1/2" 10-1/2"

Elkay

2222CamdenCourt

OakBrook,IL60523

©2008Elkay

PrintedinU.S.A.

elkayusa.com

(Rev. A 7/08)74180166

DRAIN ROUGH-IN DIMENSIONS
