1. Remove mounting plate from packaging. Read this instruction sheet before proceeding.
These dimensions are required to obtain proper rim and bubbler heights for compliance with
ANSI standard A117.1.
2. Install plumbing rough-ins as per fountain instructions (supplied with fountain).
3. Install (2) 1/4” (6mm) screws (not provided) into wall at 43 5/8” above nished oor. Use the two best hole
locations for your application. Hang mounting plate on these screws and level mounting plate before tightening
screws.
4. Reinforce the wall in shaded areas for framed wall construction so that it will adequately support
the water fountain. This reinforcement must support up to 300 lbs static load and provide a means
for securing the mounting plate in place.
5. Attach mounting plate to finished wall surface with (12) 5/16” x 2” long bolts and flat washers, 6 per bracket
(not provided). Tighten securely. (Fastener must match wall type, i.e. lag screws for wood studs, bolts and
anchors for masonary construction.)

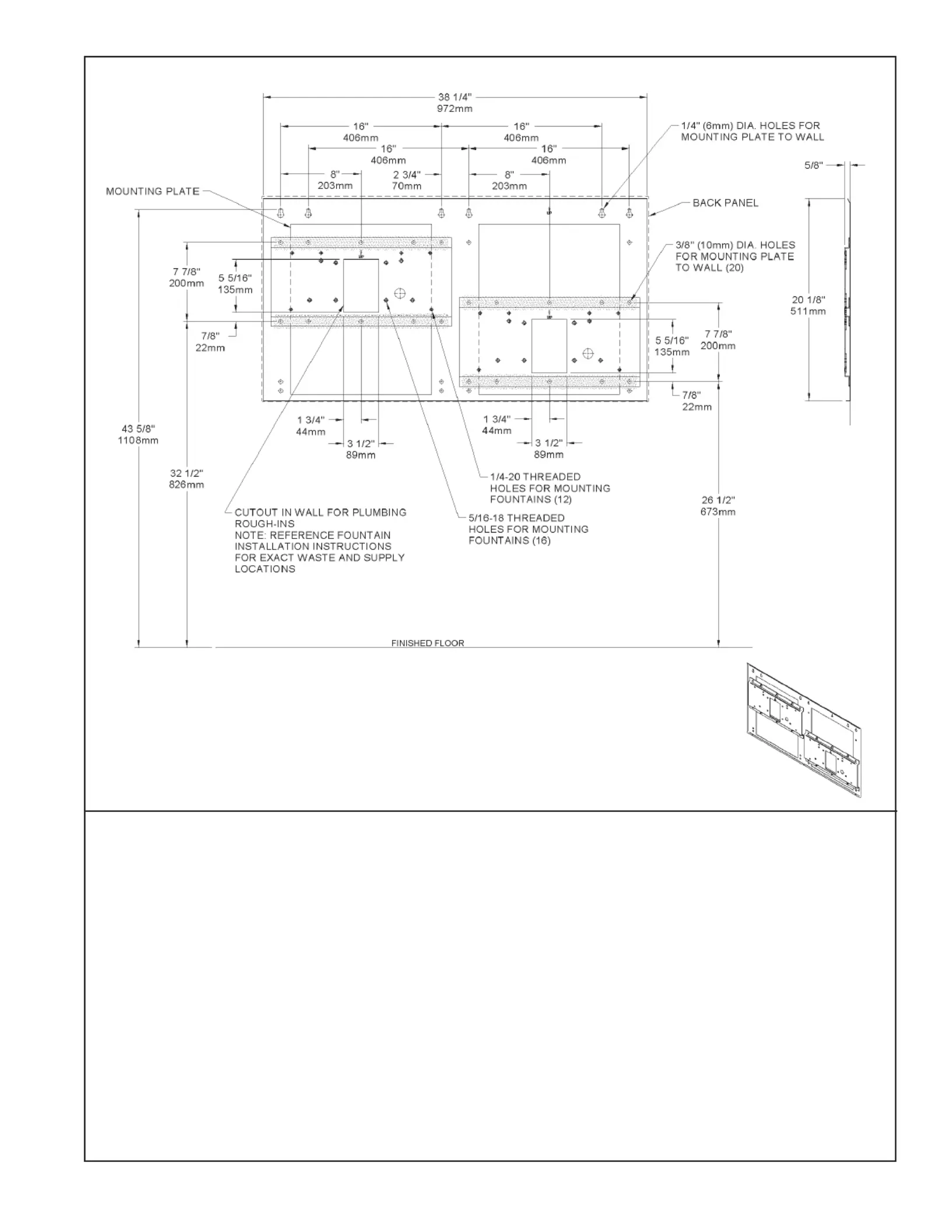

MP20 MOUNTING PLATE INSTRUCTIONS
FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.323.0620
97696C (Rev. A - 1/01)

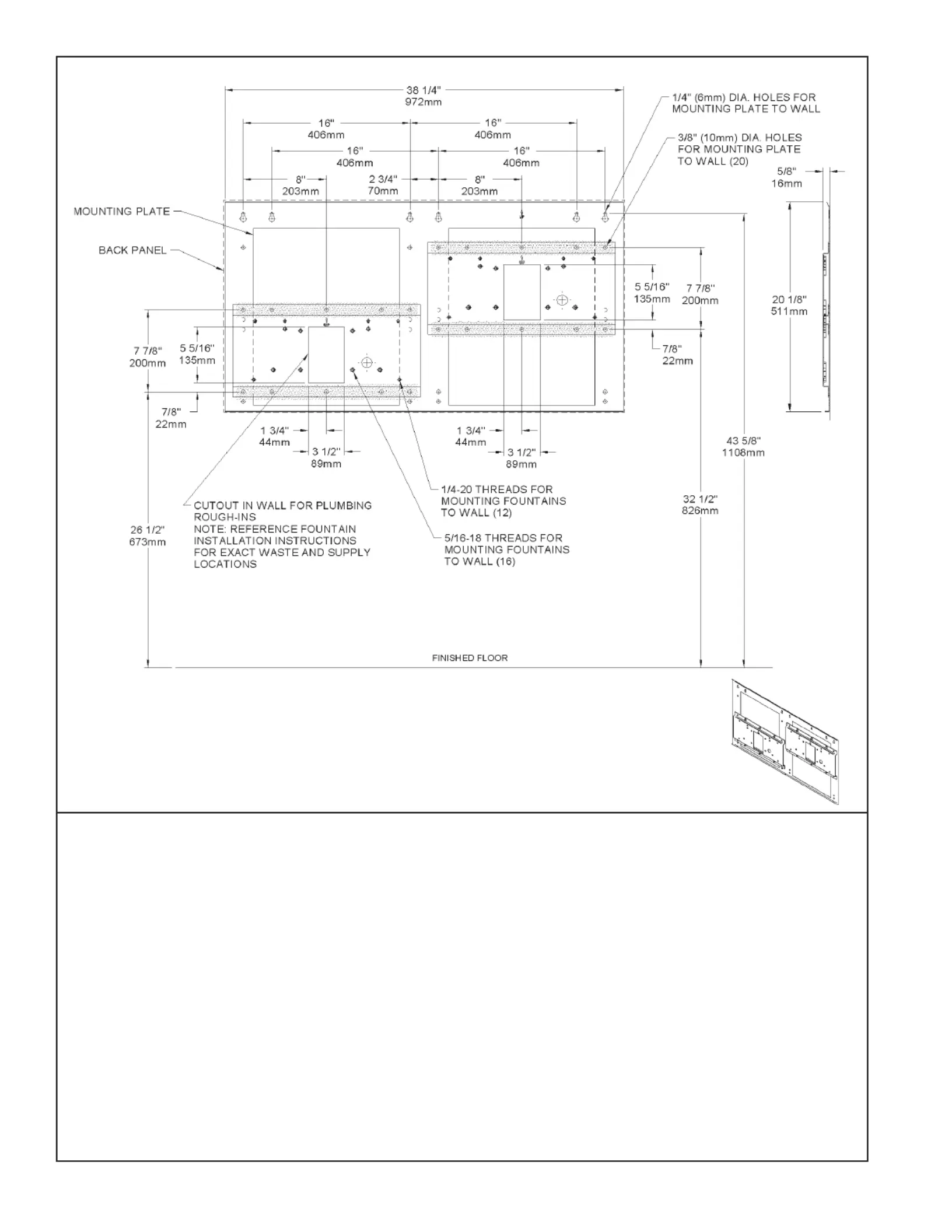

MP20RA MOUNTING PLATE INSTRUCTIONS
1. Remove mounting plate from packaging. Read this instruction sheet before proceeding.
These dimensions are required to obtain proper rim and bubbler heights for compliance with
ANSI standard A117.1.
2. Install plumbing rough-ins as per fountain instructions (supplied with fountain).
3. Install (2) 1/4” (6mm) screws (not provided) into wall at 43 5/8” above nished oor. Use the two best hole
locations for your application. Hang mounting plate on these screws and level mounting plate before tightening
screws.
4. Reinforce the wall in shaded areas for framed wall construction so that it will adequately support
the water fountain. This reinforcement must support up to 300 lbs static load and provide a means
for securing the mounting plate in place.
5. Attach mounting plate to finished wall surface with (12) 5/16” x 2” long bolts and flat washers, 6 per bracket
(not provided). Tighten securely. (Fastener must match wall type, i.e. lag screws for wood studs, bolts and
anchors for masonary construction.)
