GEIST™ SWITCHAIR

AIRFLOW MANAGEMENT DEVICE

Quick Installation Guide

SL-70387_REV0/VM-1176/590-2211-501A 1

Models:

SA1-01002, SA1-01002S and

SA1-01002L

Type:

Rear Air Intake-Front (Port)

Exhaust Switches

CAUTION: Ensure the required

airflow for safe operation of

equipment is not compromised

when installing the Geist SwitchAir.

WARNING: Take precaution to

avoid interference with the switch

input power cords when installing

on a live unit.

1.Preparing for installation

Before installing the SwitchAir,

remove the lower screw that

attaches each of the two switch

mounting bracket rails (left and

right) to the front rack uprights

(if necessary). Save these

screws to be used in the next

step. The switch mounting

bracket rails’ upper screws

remain fastened.

SwitchAir is not in the fully

extended position when

shipped from the factory. Pull

evenly on the chassis mounting

tabs for the desired depth.

2.Installing the unit into the

rack

Insert SwitchAir into the open

rack space at the same U height

as the switch. As the SwitchAir

is pushed into the space, the

SwitchAir rail tabs will engage

the switch mounting bracket

rails for support during

installation. Keep pushing the

SwitchAir into the space until

the SwitchAir front chassis

mounting tabs are flush with the

rack’s front rails.

Reinstall the screws that were

removed previously. Installation

is complete.

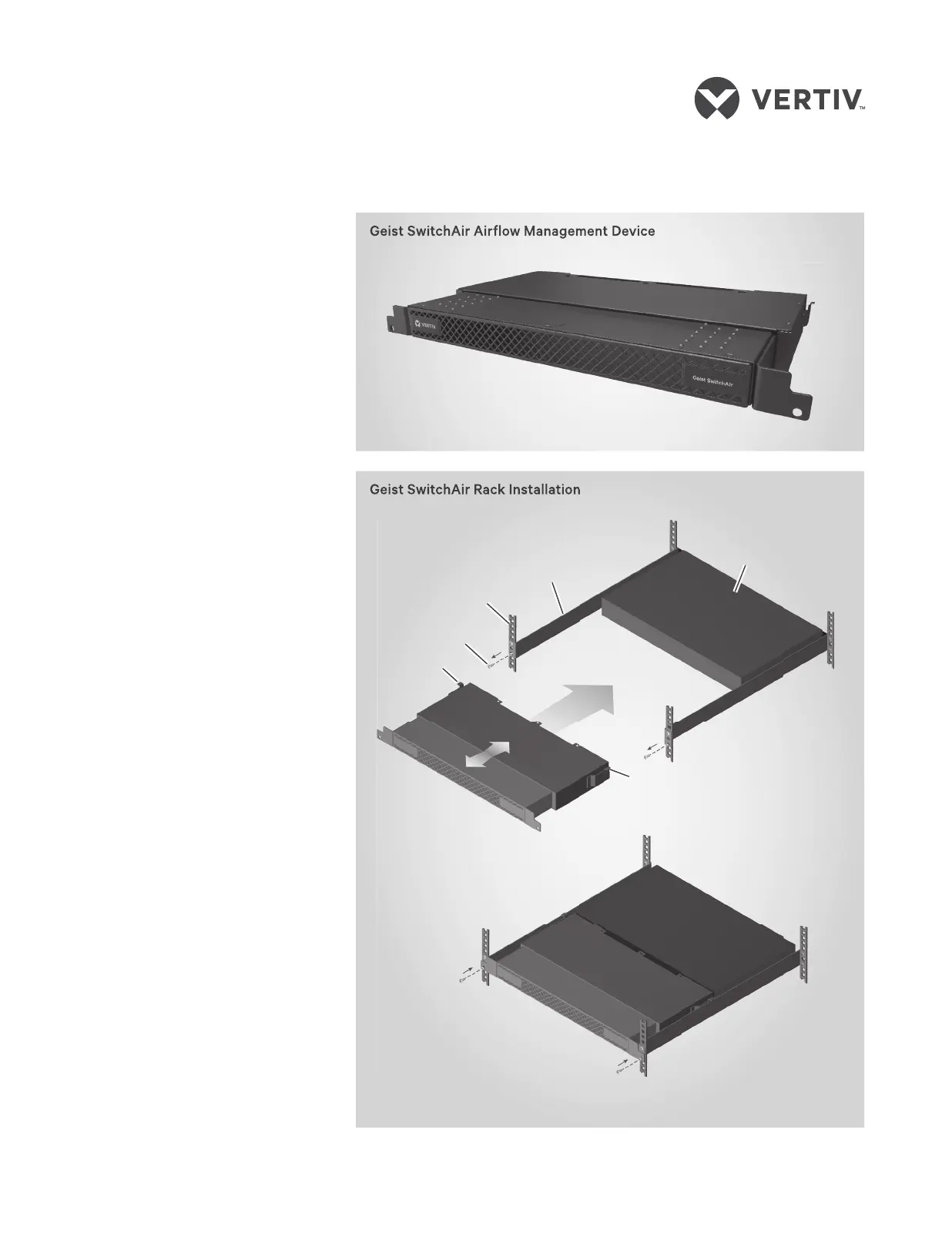

Geist SwitchAir Airflow Management Device

Geist SwitchAir Airflow Management Device

Geist SwitchAir Rack Installation

Geist SwitchAir Rack Installation

Switch

Switch mounting

bracket rails

Lower screws

Rack uprights

Expand to

fit

Rail tab

Rail tab
