EMOS ZU166 Bedienungsanleitung
Lies die bedienungsanleitung für EMOS ZU166 (18 Seiten) kostenlos online; sie gehört zur Kategorie Heizung. Dieses Handbuch wurde von 4 Personen als hilfreich bewertet und erhielt im Schnitt 4.7 Sterne aus 2.5 Bewertungen. Hast du eine Frage zu EMOS ZU166 oder möchtest du andere Nutzer dieses Produkts befragen? Stelle eine Frage
Seite 1/18
1546138200_31-ZU166_00_01_WEB 148 × 210 mm ZDROJ: 1546138000_31-ZU083_00_01_WEB
www.emos.eu
ZU083
ZU133
ZU166
ZU225
GB LED Highbay
CZ LED Highbay
SK LED Highbay
PL LED High-bay
HU LED High-bay
SI LED Highbay
RS|HR|BA|ME LED High-bay
DE LED Highbay
UA LED Highbay
RO|MD LED Highbay
LT LED Highbay
LV LED Highbay
EE LED Highbay
BG LED Highbay
FR|BE LED Highbay
IT LED Highbay
NL LED Highbay
ES LED Highbay
2
3 4
1 2
L
N
G
Model Voltage Frequency Wattage PF Lumen Diameter × DCCT Beam Angle
ZU083 220–240 V 50/60 Hz 4 000 K 83 W ≥0.9 10 000 lm 110° ø 220 mm × 50 mm
ZU133 220–240 V 50/60 Hz 4 000 K 133 W ≥0.9 16 000 lm 110° ø 260 mm × 53 mm
ZU166 220–240 V 50/60 Hz 4 000 K 166 W ≥0.9 20 000 lm 110° ø 300 mm × 54 mm
ZU225 220–240 V 50/60 Hz 4 000 K 225 W ≥0.9 27 000 lm 110° ø 300 mm × 54 mm
Exposed
Wires
Hook
Ring
M10 Ring
3
GB | LED Highbay
LED Highbay is designed for mounting onto a solid base or for hanging both indoors and outdoors.
Ingress Protection IP65 – for outdoor use.

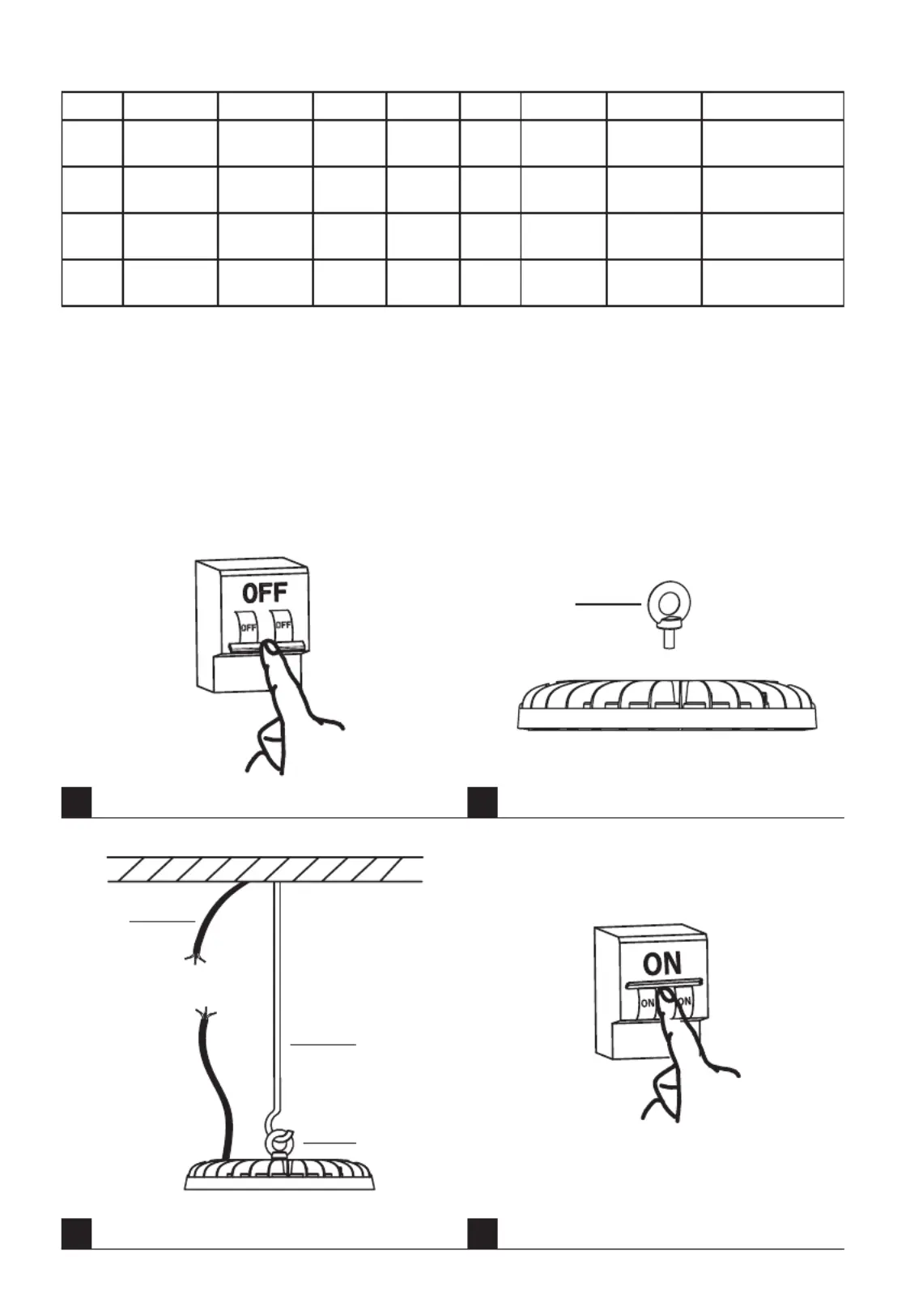

Mounting
1. Switch o the power before starting the installation
2. Lock the M10 ring to the light xture
3. Connect to power supply cabel
4. Switch on the power to test the luminaire
L
G

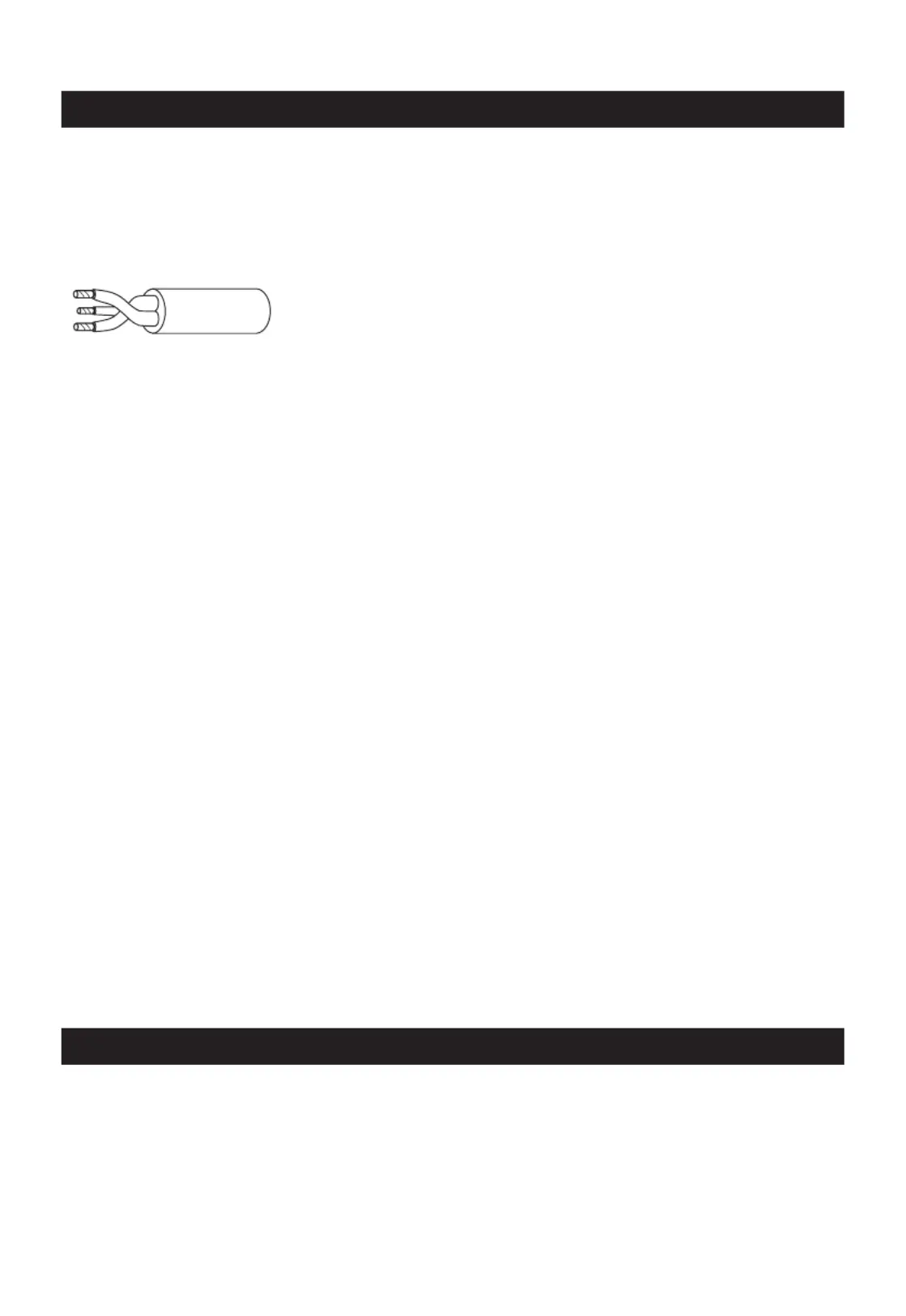

N
L – brown – live wire
G – green&yellow – earth wire (ground)
N – blue – neutral wire
Maintenance instructions:
Before maintenance, switch o the lamp and wait until it is cooled. Clean it with a soft moistened cloth. Never submerge
the lamp in water or other liquids. During maintenance, observe general rules for occupational safety, and be very careful.
WARNING
• If the external exible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer
or his service agent or a similar qualied person in order to avoid a hazard.
• The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar
qualied person.
• Terminal block not included. Installation may require advice from a qualied person.
• Terminal block for connection of power supply: 3 terminals screw-type or screw-less type, rated for cross-section range
including 1.0 mm² and voltage min 230 V. For installation with connecting dimming control wires additional 2 terminals
are required.
• Maintain a minimum distance of 1 m between the Highbay light tting and the object or surface you are illuminating.
• If you are installing the Highbay light tting under roong, maintain a minimum distance of 0.2 m between the upper side
of the light tting and the bottom of the roong.
• When using the Highbay light tting on a ammable surface, observe the above instructions.
• The Highbay light tting may only be connected to electrical mains with installation and protection that is in line with
valid regulations and standards.
• Before interfering with the Highbay light tting or performing maintenance and repair, the light tting must be disco-
nnected from the mains. This must only be done by a knowledgeable/experienced person within the meaning of valid
regulations on qualication for such activities.
• Do not use the Highbay light tting without the protective glass.
• Protection against dangerous contact voltage is ensured through connection to a neutral conductor.
• The exterior exible cable for the light tting cannot be replaced; if the cable is damaged, the light tting must be
disposed of.
• The light source of the light tting is not replaceable; after the end of the light tting‘s service life, the entire light tting
must be replaced.
• The light tting does not come with a terminal box. Installation may require the assistance of a qualied person.
• Caution, risk of electric shock.
EMOS spol. s r.o. declares that the ZU083, ZU133, ZU166, ZU225 is in compliance with the essential requirements and other
relevant provisions of Directive. The device can be freely operated in the EU. The Declaration of Conformity can be found at
http://www.emos.eu/download.
CZ | LED Highbay
LED Highbay je určen k montáži na pevný podklad nebo na zavěšení do vnějších i vnitřních prostor.
Krytí: IP65 – pro venkovní prostředí
Montáž
1. Před zahájením instalace vypněte napájení
2. Zajistěte kroužek M10 ke svítidlu
3. Připojte k napájecímu kabelu
4. Zapněte napájení a vyzkoušejte svítidlo
