Datasheet |

Switch Extender

• 1x GE PoE port deliver power to other

PD devices.

• 4x GE ports for high-speed

connections.

• 1x SFP uplink port for bandwidth-

intensive applications.

• Zero touch provisioning, centralized

cloud conguration and visualized

monitoring improve the efciency of

network installation and management.

Features & Benets

Overview

The EnGenius EXT1106 Switch Extender, with 4x GE

Ports, 1x GE PD, and 1x SFP, excels in diversifying

network expansion. Its SFP interface extends data

transmission beyond the traditional 100-meter RJ45

limit, ensuring robust network performance. This

compact switch extender offers exibility with PoE

and Type-C power options, suitable for commercial

and residential environments.

Switch Extender 4GE 1SFP

4x GE Ports, 1x GE PD Switch Extender

with 1SFP Port

• Voice VLAN function ensure the security

and quality of VoIP trafc.

• Cloud manage switch extenders from

anywhere with the EnGenius Cloud App.

A Pro license for Cloud To-Go offers more

features to fulll advanced management

requirements.

• EnGenius FitXpress (cloud-managed) is

a cost-effective management option for

Switch Extender series products.

EXT1106

Technical Specications

Port Standards

802.3u 100Base-TX Ethernet

802.3ab 1000Base-T Ethernet

Network Port - Gigabit Ethernet Ports

5x10/100/1000 Mbps Ports

Network Port - SFP Ports

1x SFP Port

Switching Capacity

12Gbps

Flash Memory

32 MB

Power Source

PoE PD,

Recommend EnGenius PoE adapters (EPA5006GP, EPA5006GAT)

Type-C (100 to 240 VAC, 50/60Hz)

Technical Specications

System Indicators

Power LED

Port Indicators

Link/Activity/Speed (per Ethernet port)

Link/Activity (per SFP Slot)

Temperature Range

Operating: 32°F to 104°F (0°C to 40°C)

Humidity (Non-Condensing)

Operating: 5% - 95%

Device Dimensions & Weights

Weight: 124G

Length: 4.92” (125 mm)

Width: 2.09” (73.9 mm)

Height: 1.10” (28 mm)

Package Contents

1x EXT Switch Extender

1x Product Card

1x Wall Mount Kit

1x Power Adapter

Physical Interface

Environmental & Physical

Device Dimensions & Weight

Network Management

EnGenius Cloud

MAC Address Table

Jumbo frame size

10K

Multicast Group

Max 8 groups

QoS-number of Priority Queues Supported

QoS Trust Mode

Cos/802.1p

DSCP

CoS/802.1p-DSCP

Bandwidth Control

Port-based bandwidth control (Ingress/Egress)

Web Graphical User Interface (GUI)

LSP(Local status page)

System Time

Time Setting/Daylight saving

L2 Software Features

Common L2 Features

802.1w Rapid Spanning Tree

Domain Name System (DNS) settings

Multicast Filitering

IGMP Snooping

IGMPv2

IGMP Snooping Fast Leave

Port Statistics

802.1Q VLAN

Voice VLAN

Port-based VLAN

Jumbo Frame

IPv4 Settings

Link Layer Discovery Protocol (LLDP)

Weighted Round Robin Queue(WRR)

Simple Network Time Protocol (SNTP)

SYSLOG

Factory Default

Reboot Switch

Find Me

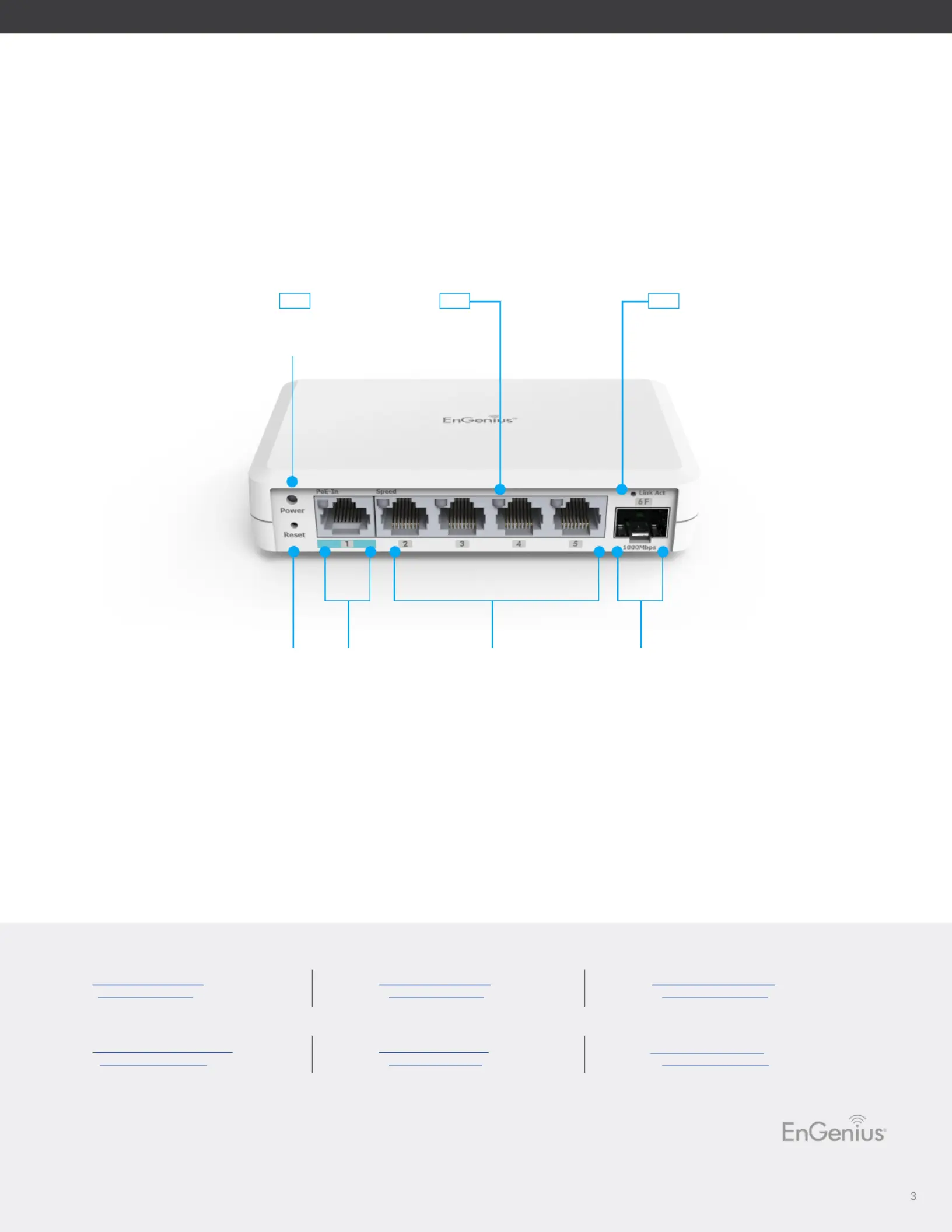

Hardware Overviews

Features and specications subject to change without notice. Trademarks and registered trademarks are the property of their respective owners. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in

which case the user will be required to correct the interference at his/her own expense. Prior to installing any surveillance equipment, it is your responsibility to ensure the installation

is in compliance with local, state and federal video and audio surveillance and privacy laws.

EnGenius Technologies | Costa Mesa, California, USA

Emaill: support@engeniustech.com

Website: www

www

www.engeniustech.com

.engeniustech.com

.engeniustech.comwww.engeniustech.com

Local contact:

(+1) 714 432 8668

EnGenius Networks Singapore Pte Ltd. | Singapore

Emaill: t echsupport@engeniustech.com.sg

Website: www.engeniustech.com.sg

Local contact:

(+65) 6227 1088

EnGenius Technologies Canada | Ontario, Canada

Email: support@engeniustech.com

Website: www.engeniustech.com

Local contact:

(+1) 905 940 8181

EnGenius Networks Europe B.V. | Eindhoven, Netherlands

Email: support@engeniusnetworks.eu

Website: www.engeniusnetworks.eu

Local contact:

(+31) 40 8200 887

恩碩科技股份有限公司 | Taiwan, R.O.C.

Email: sales@engeniustech.com.tw

Website: www.engeniustech.com.tw

Local contact:

(+886) 933 250 628

EnGenius Networks Dubai | Dubai, UAE

Emaill: support@engenius-me.com

Website: www.engenius-me.com

Local contact: (

+971) 4 339 1227

Version 1.1 03/22/2024

RJ45: Speed

SFP: Link/Act

Gigabit Port

System

LED

Reset

Button

GbE PoE PD

Port (PoE++)

SFP Slot

LED LED LED

Produktspezifikationen

Marke:	EnGenius
Kategorie:	Schalter
Modell:	EXT1105P
Breite:	105 mm
Tiefe:	170 mm
Gewicht:	450 g
Produktfarbe:	Schwarz
Höhe:	27 mm
Energiequelle:	DC/PoE
Betriebstemperatur:	0 - 40 °C
Relative Luftfeuchtigkeit in Betrieb:	5 - 95 %
Netzstandard:	IEEE 802.1p, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3u
Quality of Service (QoS) Support:	Ja
Power over Ethernet (PoE):	Ja
LED-Anzeigen:	Leistung
Switch-Typ:	Managed
Anzahl der basisschaltenden RJ-45 Ethernet Ports:	5
Basic Switching RJ-45 Ethernet Ports-Typ:	Gigabit Ethernet (10/100/1000)
10G-Unterstützung:	Nein
MAC-Adressentabelle:	8000 Eintragungen
Routing-/Switching-Kapazität:	10 Gbit/s
Jumbo Frames Unterstützung:	Ja
Multicast Unterstützung:	Ja
VLAN-Unterstützung:	Ja
Reset-Knopf:	Ja
Flash-Speicher:	32 MB
Jumbo-Frames:	15000
Switch-Ebene:	L2
Gesamtleistung Power over Ethernet (PoE):	60 W
Zugriffkontrollliste:	Ja
Anzahl der gefilterten Multicast-Gruppen:	8
Cloud-verwaltet:	Ja
IGMP-Snooping:	Ja
