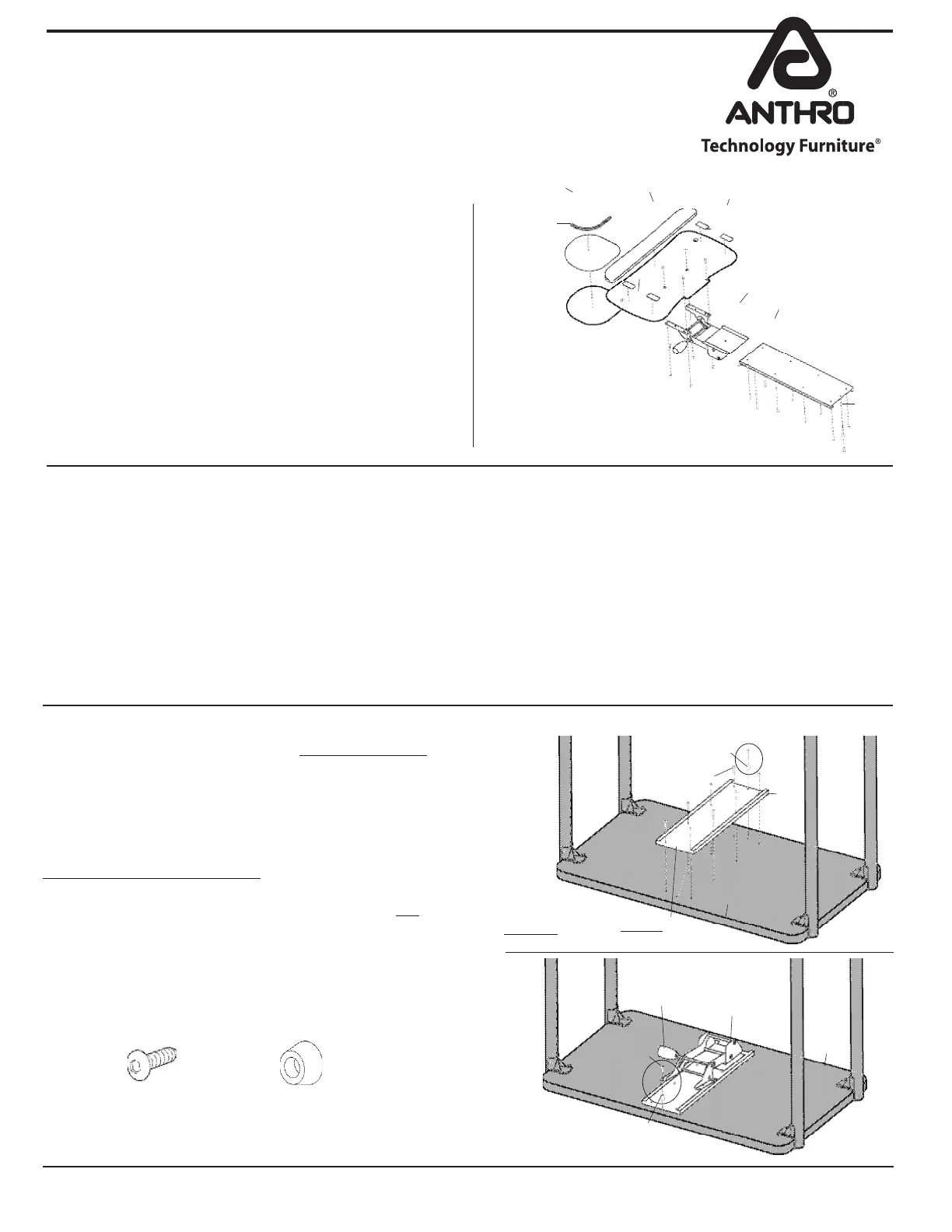

Universal Keyboard & Mouse Caddy

Compact Keyboard & Mouse Caddy

Assembly Instructions

01– Wrist Rest ............................................Qty. 1 .....................575-5001-01

02– Mouse Rail ..........................................Qty. 1 ....................575-5001-02

03– Mouse Pad ..........................................Qty. 1 ....................575-5001-03

04– Caddy Platform .................................Qty. 1 ....................575-5001-04

05– Acorn Nuts ........................................Qty. 4 ....................325-5023-00

06– Wood Screws

3/4” (for UKMCBK) ...........................Qty. 10 ...................325-5106-00

1/2” (for 169BK) ................................Qty. 8 ....................325-5008-00

07– Rubber Bumpers ............................Qty. 2 ....................175-5130-03

08– Caddy Tray

For UKMCBK .......................................Qty. 1 ....................225-5046-00

For 169BK ............................................Qty. 1 ....................575-5001-12

09– Caddy Mechanism

For UKMCBK .......................................Qty. 1 ....................575-5001-09

For 169BK ............................................Qty. 1 ....................575-5001-13

10– Caddy Screws ....................................Qty. 4 .....................575-5001-10

11– Keyboard Pads ..................................Qty. 4 .....................575-5001-11

Component list for part # UKMCBK, 169BK

Hello! Thank you for choosing Anthro.

Before beginning, please take a moment to review the parts

list to be sure your shipment is complete. Also, review the

instructions of all Anthro products you are planning to include in

this installation.

An electric drill and

1

/

8

” drill bit may be required for this

assembly although some Anthro products are predrilled to

accept these caddies. A

5

/

32

” Hex Driver, (provided with your

cart) plus a Philips screwdriver & an adjustable wrench (not

included) are required for this assembly.

SAVE THESE INSTRUCTIONS!

Questions? 1-800-325-3841

3

/

4

” Wood Screw

325-5106-00

Rubber Bumper

175-5130-03

Step 1

Carefully rotate your Cart upside down. For predrilled Carts:

align the tray with the holes on the cart shelf. Attach the

tray using wood screws (8 for the Compact; 10 for the UKMC)

leaving open the holes at the center front and back. Insert one

wood screw through a rubber stop and install towards the rear

of the cart.

If your cart shelf is not predrilled: use the tray as a template

and mark the hole locations. Carefully drill all holes using a

1

/

8

”

drill bit (1/2” deep for compact, 3/4” deep for others). TIP: Use

a small amount of masking tape to mark the depth on your

drill bit. Now install the tray as described above.

Slide the Caddy Mechanism into the Tray and push to the rear.

If needed, rotate the mechanism handle to lift the mechanism

to slide it back. Finally, install the remaining wood screw and

rubber bumper into the tray.

Rubber Bumper

Wood Screws

Tray

DO NOT install a

Wood Screw into this Hole

Front of Cart

STEP 1A

Caddy

Mechanism

Rubber Bumper

Rear

of

Cart

Wood Screw

Rotate Handle

to LIFT

1

/

2

” Wood Screw

325-5008-00

Anthro

Corporation anthro.com1-800-325-384110450 SW Manhasset Dr. Tualatin, OR 97062

02

05

03

01

04

06

08

10

11

07

09
