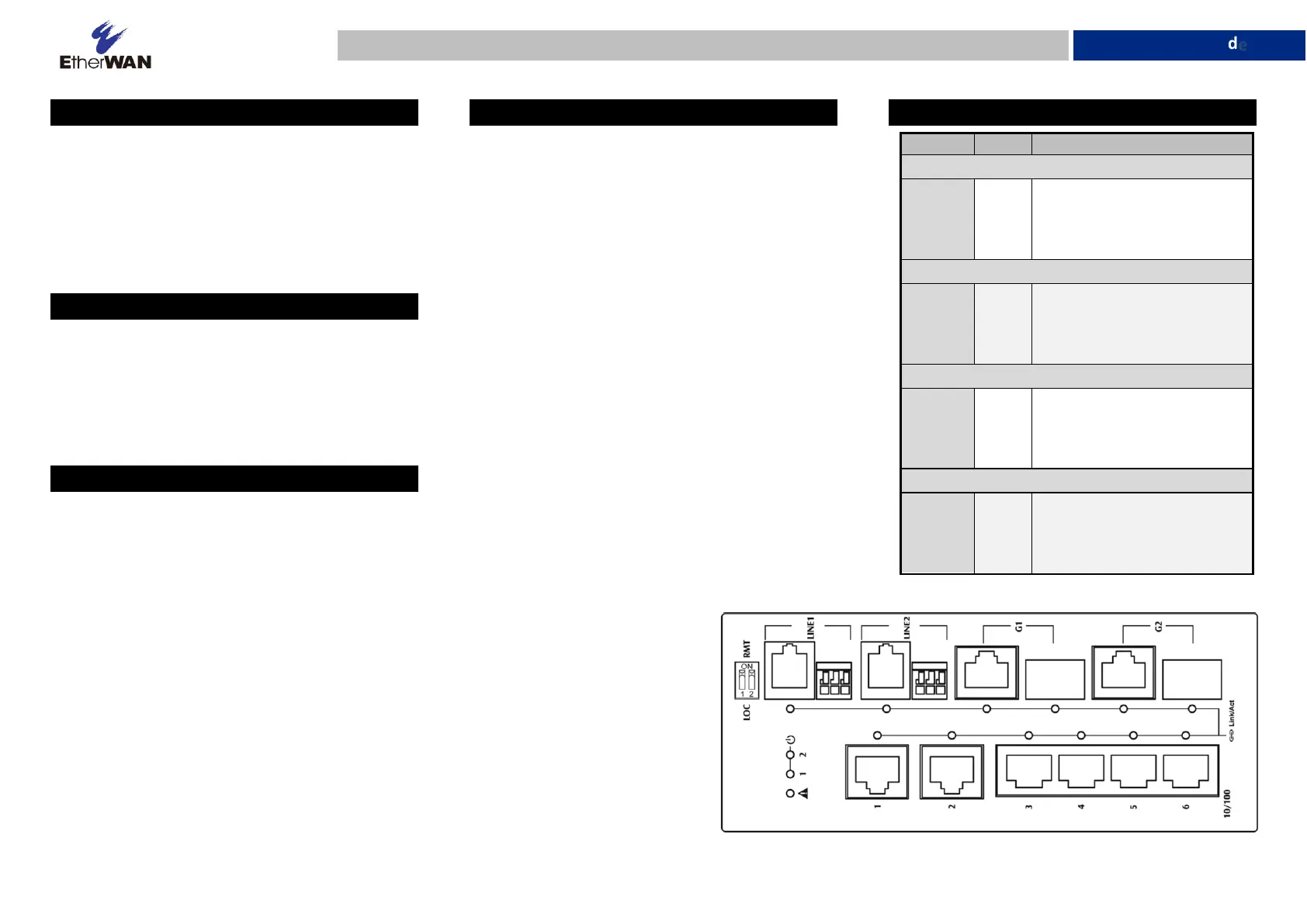

W70G-ED3575XQ5 Page 1
Installation Guide
ED3575 Series | Managed Switch / Ethernet Extender
Copyright 2023 EtherWAN Systems, Inc. All Rights Reserved 03/29/2023
1 Unpacking
Unpack the items. Your package should include:
▪ One ED3575 Series hardened managed Ethernet
Extender
If items are missing or damaged, notify your
EtherWAN representative. Keep the carton and
packing material.
2 What Else You Need
▪ Category 5 or better cable for RJ-45 ports
▪ Appropriate cables for fiber and SFP ports
▪ Telephone wire (24AWG with minimum 0.5mm
diameter) for Ethernet Extender ports (RJ-11
connector or Terminal Block)
▪ Personal computer with a DB9 straight cable
3 Select a Location
▪ Installations: Desktop, Wall-mount, DIN-Rail
mount.
▪ Installation must be at a height of at least 6 feet
(1.8 meters) above the floor.
▪ Identify a power source within 6 feet (1.8 meters).
▪ Choose a dry area with ambient temperature
between -40 and 75ºC (-40 and 167ºF).
▪ Keep away from heat sources, sunlight, warm air
exhausts, hot-air vents, and heaters.
▪ Be sure there is adequate airflow.
▪ Keep the Ethernet Extender at least 6 ft. (1.83 m)
away from the nearest source of electromagnetic
noise, such as a photocopy machine.
4 Connect to the Data Ports
Depending on the model, your Ethernet Extender can
have the following ports:
▪ 6 10/100BASE-TX ports
▪ 2 Gigabit combo ports
▪ 2 Ethernet Extender ports (RJ-11 connector or
Terminal Block)
1 Gbps Combo/SFP Ports
If your switch model has combo ports, you can
connect them to network devices such as a computer,
printer, network video recorder (NVR), network
storage, or they can connect to the network itself.
Combo ports operate in “either/or” fashion. This
means that attaching to a 1 Gbps combo port renders
the equivalent partner combo port unavailable.
Ethernet Extender Ports
Insert the voice grade copper wire between one pair
of Ethernet Extenders via Ethernet Extender port (RJ-
11 connector or Terminal Block). One device must be
set to LOC mode and the other to RMT mode when
two devices are connected.
5 Front Panel LEDs
LED
Color
Status
10/100Base-TX LEDs
Link/Act
Green
ON = valid network connection is
established.
Flashing = port sending or
receiving data.
10/100/1000Base-TX LEDs
Link/Act
Green
ON = valid network connection is
established.
Flashing = port sending or
receiving data.
1000Base SFP LEDs
Link/Act
Green
ON = valid network connection is
established.
Flashing = port sending or
receiving data.
Ethernet Extender Port LEDs
Link/Act
Green
ON = valid network connection is
established.
Flashing = port sending or
receiving data.
