EXSYS EX-61001 Bedienungsanleitung

EXSYS Server EX-61001

Lies die bedienungsanleitung für EXSYS EX-61001 (28 Seiten) kostenlos online; sie gehört zur Kategorie Server. Dieses Handbuch wurde von 3 Personen als hilfreich bewertet und erhielt im Schnitt 4.4 Sterne aus 2 Bewertungen. Hast du eine Frage zu EXSYS EX-61001 oder möchtest du andere Nutzer dieses Produkts befragen? Stelle eine Frage

Download PDF

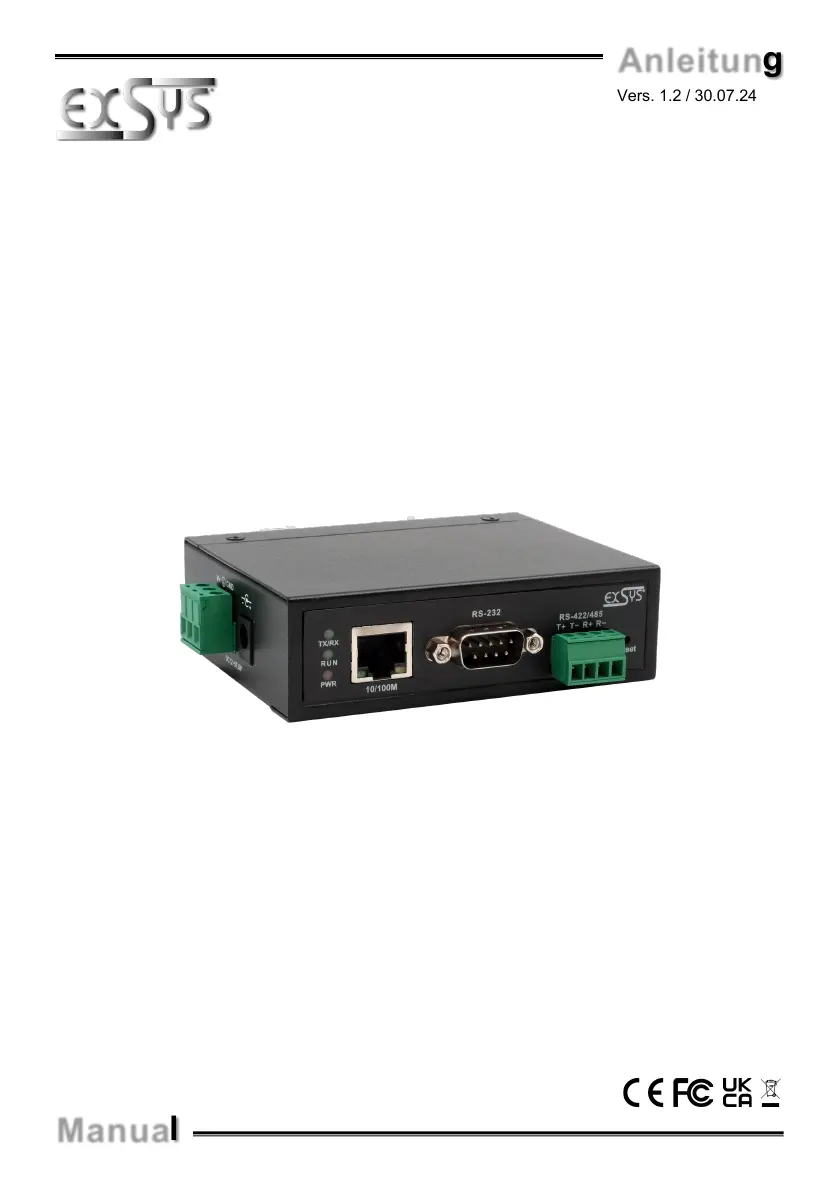

Seite 1/28

Serial Device Server

1x RS-232/422/485

EX-61001

Serieller Geräteserver

1x RS-232/422/485

Vers. 1.2 / 30.07.24

Anleitung

Manual

Schweiz:

EXSYS Vertriebs GmbH

Dübendorfstrasse 17

8602 Wangen

www.exsys.ch

Deutschland:

EXSYS Vertriebs GmbH

Industriestraße 8

61449 Steinbach

www.exsys.de

Italia:

EXSYS Italia Srl

Via Belvedere, 45/B

I-22100 Como

www.exsys.it

EX-61001

1. Beschreibung ···································································································· 3

2. Lieferumfang ····································································································· 3

3. Aufbau, Anschlüsse & LEDs ·············································································· 4-5

3.1 Aufbau························································································································ 4

3.2 Anschlüsse & LEDs ···································································································· 4-5

4. Hardware Installation ··························································································· 6

5. Konfiguration des Geräteservers ··········································································· 7

6. VCOM Utility ································································································· 8-10

7. Servereinstellungen ······················································································ 10-14

8. Reinigung ········································································································ 15

9. Technische Daten ····························································································· 15

10. Technische Zeichnung ······················································································· 15

Inhaltsverzeichnis

Index

1. Description ······································································································ 16

2. Extent of Delivery ······························································································ 16

3. Layout, Connections & LED’s ········································································· 17-18

3.1 Layout ······················································································································ 17

3.2 Connections & LED‘s ······························································································ 17-18

4. Hardware Installation ·························································································· 19

5. Configuration of the Device Server ········································································ 20

6. VCOM Utility ······························································································· 21-23

7. Server Settings ···························································································· 23-27

8. Cleaning ·········································································································· 28

9. Technical Information ························································································· 28

10. Technical Drawing ····························································································· 28

Produktspezifikationen

Marke:	EXSYS
Kategorie:	Server
Modell:	EX-61001
Breite:	100.2 mm
Tiefe:	80.3 mm
Gewicht:	270 g
AC-Netzadapter:	Ja
Produktfarbe:	Schwarz
Internationale Schutzart (IP-Code):	IP30
Höhe:	48.3 mm
Energiequelle:	Gleichstrom
Betriebstemperatur:	-40 - 85 °C
Relative Luftfeuchtigkeit in Betrieb:	5 - 95 %
Netzstandard:	IEEE 802.3, IEEE 802.3u
Anzahl Ethernet-LAN-Anschlüsse (RJ-45):	1
Ursprungsland:	China
Gehäusematerial:	Metall
Ethernet LAN Datentransferraten:	10,100,1000 Mbit/s
LED-Anzeigen:	Ja
Temperaturbereich bei Lagerung:	-40 - 85 °C
Energieverbrauch:	160 mA
Unterstützt Windows-Betriebssysteme:	Ja
Ausgangsstrom:	1 A
Ausgangsspannung:	12 V
Serielle Schnittstelle:	RS-232/422/485
Eingangsspannung:	12 - 48 V
Nachhaltigkeitskonformität:	Ja
Nachhaltigkeitszertifikate:	CE, Federal Communications Commission (FCC)
Unterstützte Linux-Betriebssysteme:	Ja
Anzahl serielle Anschlüsse:	1
Baudrate:	921.6 Kbit/s
DIN-Schienen-Montage:	Ja
Schutz gegen elektrostatische Entladung (ESD) (Luft):	8 kV
Elektrostatischer Entladungsschutz (ESD) (Kontakt):	4 kV
Ethernet/LAN:	Ja
Datenbits:	5, 6,7, 8
Parity bit:	Even, N,Odd
Stop bits:	1, 2
RS-232 Signale:	CTS, DCD, DSR, DTR, GND, RTS, RXD, TXD
RS-485 signale:	Data+, Data-, GND
RS-422 signale:	GND, RxD+, RxD-, TxD+
