DTP3 T 211 • Setup Guide

IMPORTANT NOTE:

Go to www.extron.com for the complete user guide, installation instructions, and specications before

connecting the product to the power source.

The Extron DTP3 T 211 is a long distance, digital twisted pair transmitter used for sending USB-C

®

video, audio, and control up to

330 feet (100 meters) over a shielded CAT 6A cable to Extron DTP3-enabled products. The unit supports video resolutions up to

4K/60 @ 4:4:4 and complies with HDCP 2.3.

This guide provides quick start instructions for an experienced installer to set up and operate the DTP3 T 211. For full installation,

conguration, and operation details, see the DTP3 T 211 User Guide available at www.extron.com.

Installation

DTP3 T 211

INPUT

SIGNAL

HDCP

OFF

SEND

PWR

CONFIG

DTP

HDBT

USB-C

POWER

--A MAX

12V

UPI 100W

PWR INSERT

INPUTS

OUT

SIGLINK

OVER

TP

RS-232

TxRxG

R

USB-C

LOOP OUT21-25VDC

Front

Rear

A

DTP3 T 211

INPUT

SIGNAL

HDCP

OFF

SEND

PWR

CONFIG

DTP

HDBT

USB-C

POWER

--A MAX

12V

UPI 100W

PWR INSERT

INPUTS

OUT

SIGLINK

OVER

TP

RS-232

TxRxG

R

USB-C

LOOP OUT21-25VDC

Front

Rear

A

B

CDEF

G

H

BCDE

A

Send Power toggle switch

C

Power port

E

USB-C input

G

TP output

B

DTP/HDBT toggle switch

D

UPI 100 W power insert port

F

Loop Out port

H

Over TP port

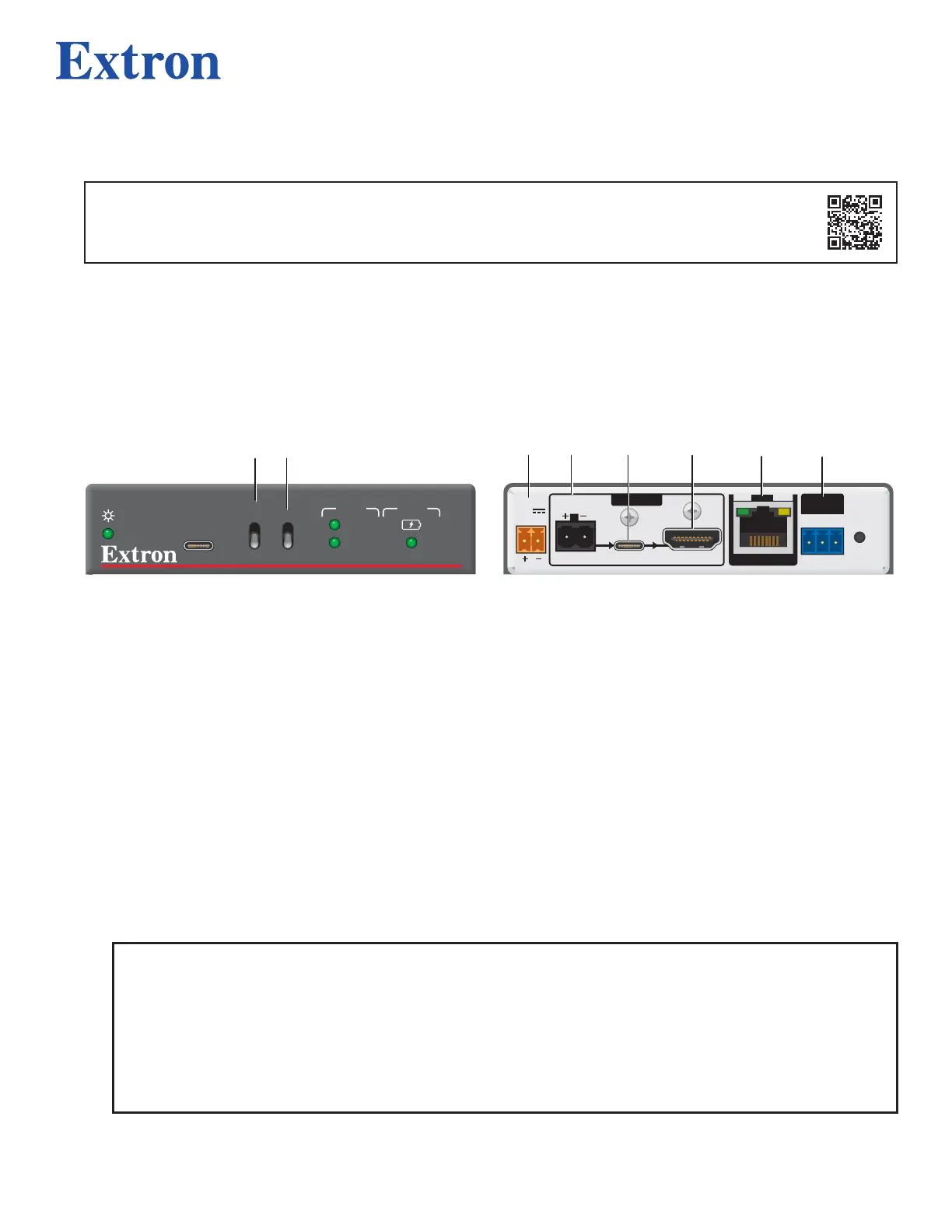

Figure 1. Installation Features (Front and Rear Panels)

Step 1 — Mounting (optional)

Turn o󰀨 or disconnect all equipment from the power source. The unit can be securely mounted in a variety of locations, using

optional Extron mounting brackets and accessories (see www.extron.com to determine which optional mounting accessories are

compatible).

Step 2 — Connecting the inputs

D

UPI 100 W power insert port (see figure 1) — If desired, connect a 2-conductor cable from an Extron UPI 100 to this 5 mm,

2-pole captive screw port. This feature can provide up to 100 W of power to a laptop computer connected to the USB-C

input (

E

).

E

USB-C input — Connect a USB-C video source, such as a laptop, to this USB-C input.

NOTES:

• An Extron UPI 100 is needed to provide power to the USB-C source (

D

).

• When using the UPI 100, choose a USB-C cable that is rated for the desired power delivery.

• Use Extron Product Configuration Software (PCS) to configure the power delivery (see the DTP3 T 211 PCS Help

File for more information).

• Extron LockIt

™

Plus cable lacing brackets are provided to secure the USB-C and HDMI connectors to the rear panel

ports. This reduces stress on the connectors and prevents signal loss due to loose cable connections (see LockIt

Plus Installation on page 4 for installation details).

F

Loop Out port — Connect a display to this HDMI output for local monitoring of digital video (see LockIt Plus Installation).
