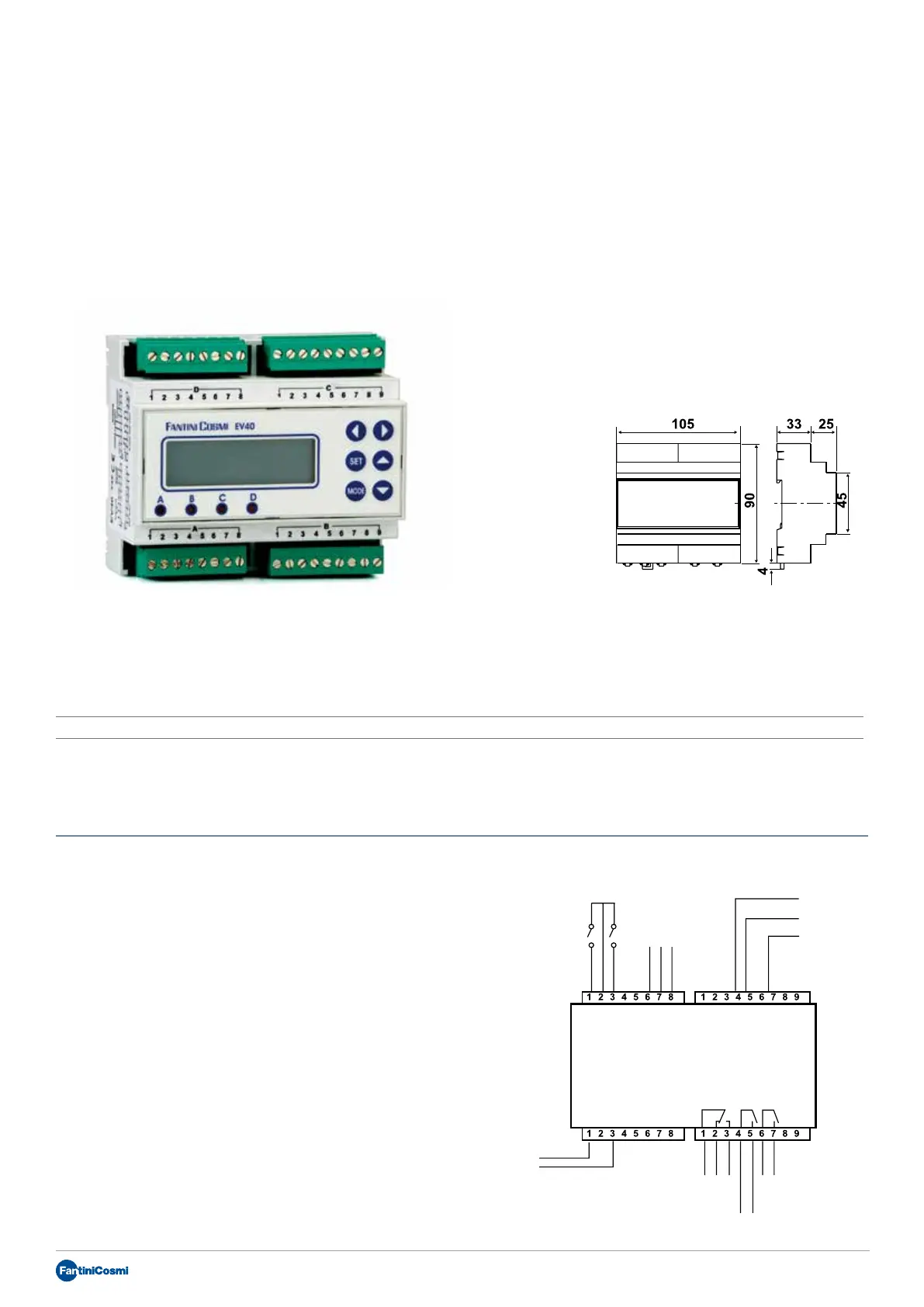

EV40

Regulation control unit for thermal solar panel systems

and solar cooling

EV40 differential control unit is suitable for the regulation and control of thermal solar panel systems, both of the vacuum tubes and

flat plate types, with fluid forced circulation. It is able to control both heating and cooling of the environment through the management

of the systems with solar cooling. Eight system types are available, according to the specific required application.

ELECTRICAL FEATURES

Power supply: 230 Vac.

Consumption: 5VA.

Analog inputs: collector probe, boiler probe and integration probe NTC

1k-200°C (EC21).

2 optoisolated inputs.

Output relays:

1 relay for collector circulation pump;

1 relay for integration pump or for deviation valve;

1 relay with programmable function.

Contacts rating: 5(3)A 230Vac.

Serial port RS232: for remote control with GSM modem

(by means of SMS).

Dimensions (mm)

COM

RX

TX

COM

NA

NC

COM

NA

COM

NA

Input 1Input 2

Probe 1

Probe 2

Probe 3

Power supply

230Vac

Safety relay

output (D)

Integration relay

output (B)

Solar pump relay

output (C)

SERIAL PORT

RS232C

MODEM EM70

Power

supply

Contacts

rating

Operating

ambient

temperature

ConsumptionProtection

degree

EV40230V 50Hz5(3)A0 ÷ 50 °C5 VAIP40 (back panel)

GENERAL ELECTRICAL WIRING DIAGRAM
