OWNER’S MANUAL | MANUAL DE INSTRUCCIONES
MODE D’EMPLOI | BEDIENUNGSHANDBUCH
オ ー ナ ー ズ・マ ニ ュ ア ル
BASS AMPLIFIER
ENGLISH
ACB 50

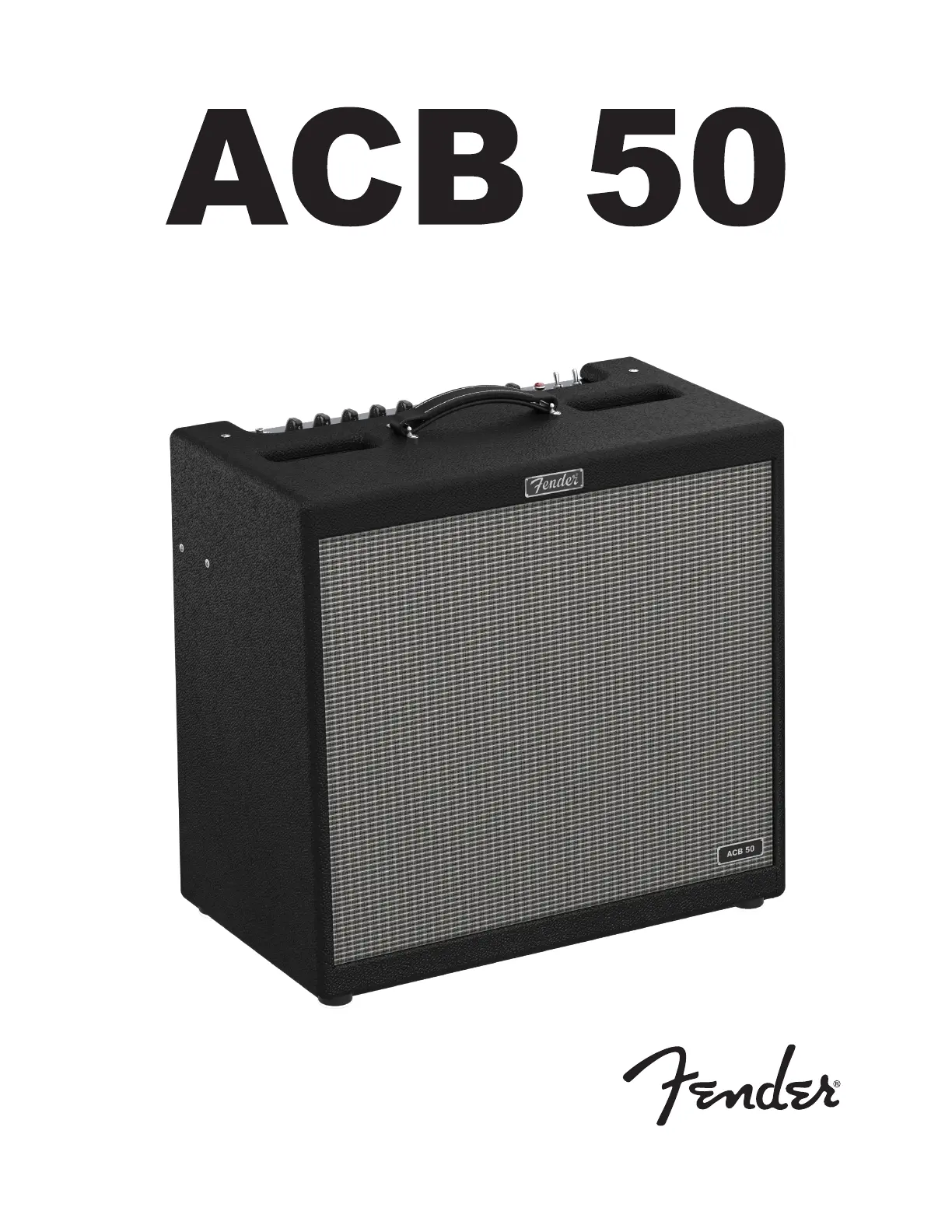

Created with acclaimed U2 bassist Adam Clayton, the Fender ACB 50
combo bass amplier pumps warm and harmonically rich all-tube tone
prized by bassists everywhere for studio, club and arena alike. In close
collaboration with the man himself on its sound and modern style, it’s
Fender’s rst-ever signature bass amp. Premium features include:
• 50 watts tube output power
• Dual-channel design—channel one has vintage Fender “black
panel” preamp tonality with volume, bass and treble controls, a
mid-boost control and three-position mid-frequency selection
switch; channel two has at frequency response with volume,
treble boost/cut and bass boost/cut controls
• Two 6L6 power tubes
• Three 12AX7 preamp tubes
• One 12AT7 phase splitter tube
• Single 15” Eminence® Special Design speaker
• Extension speaker output
• Transformer-coupled post-power amp line output with XLR and
1/4” jacks
• Ground lift switch for direct out XLR jack
• Lightweight plywood ported enclosure
• Caster sockets

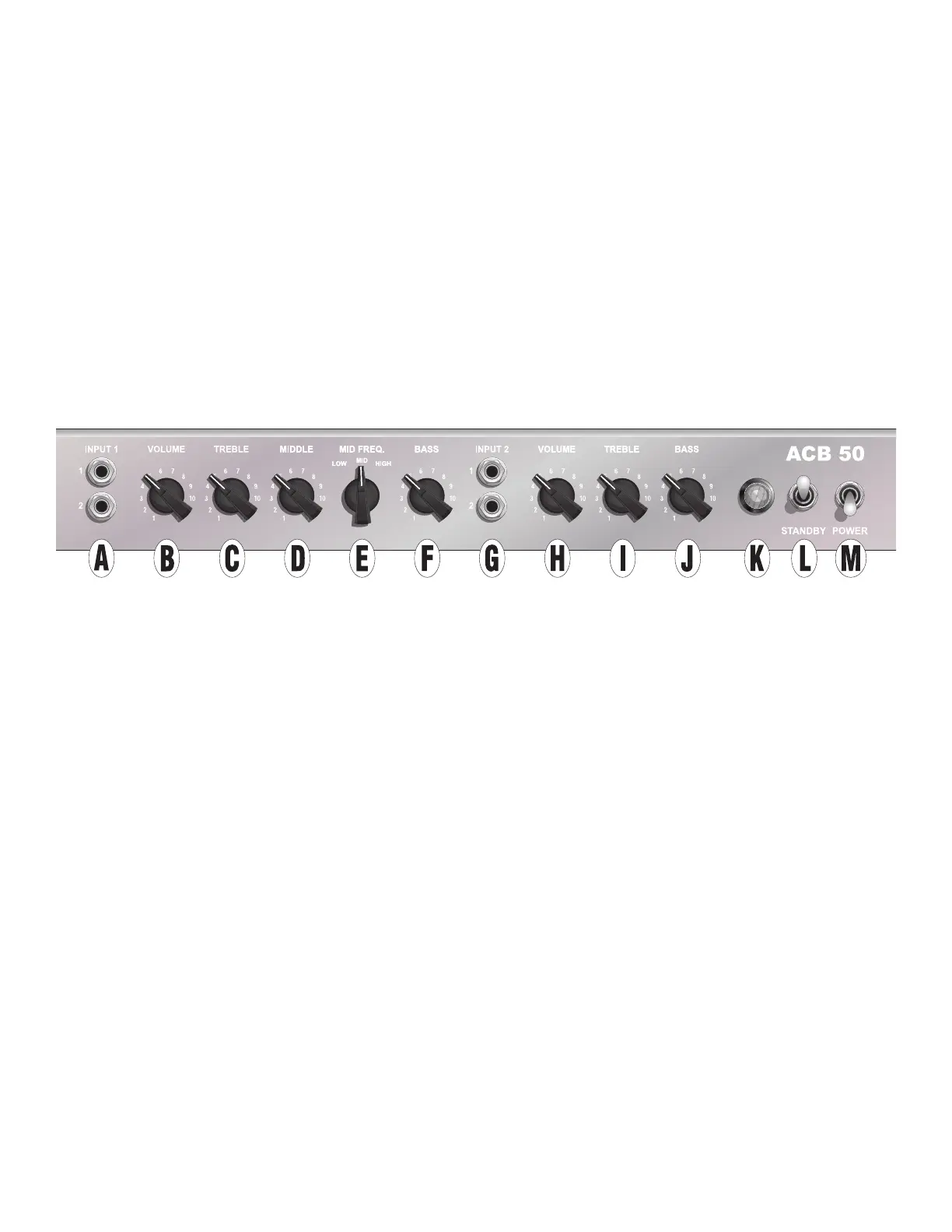

CONTROL PANEL
A. CHANNEL ONE DUAL INPUTS: Connect instrument here. Input
is for normal sensitivity; input has lower-sensitivity (-dB) for
higher-output (active) basses.
Note that channel one delivers a more traditional Fender bass
sound, with the addition of an adjustable mid frequency boost
control (see item “E” below).
B. CHANNEL ONE VOLUME: Controls channel one volume level.
C. CHANNEL ONE TREBLE: Controls channel one treble tone level.
D. CHANNEL ONE MIDDLE: Boosts channel one midrange tone
level, in connection with CHANNEL ONE MID FREQUENCY SWITCH
(E) setting.
E. CHANNEL ONE MID FREQUENCY SWITCH: Three-position dial
switch selects low, middle or high midrange frequency setting
for boost using CHANNEL ONE MIDDLE control knob (D); note
that tonality dierences of the three settings are best observed
at high settings of the CHANNEL ONE MIDDLE control.
F. CHANNEL ONE BASS: Controls channel one bass tone level.
G. CHANNEL TWO DUAL INPUTS: Connect instrument here. Input
is for normal sensitivity; input has lower-sensitivity (-dB) for
higher-output (active) basses.
Note that channel two oers boost/cut treble (I) and bass (J)
tone controls for which frequency response is “at” in the center
position (.).
H. CHANNEL TWO VOLUME: Controls channel two volume level.
I. CHANNEL TWO TREBLE: Controls channel two treble tone level.
J. CHANNEL TWO BASS: Controls channel two bass tone level.
K. POWER JEWEL: Illuminates when amplier is on.
L. STANDBY: Puts amplier in standby mode, extending tube life by
disabling speaker output while power remains on.
M. POWER: Turns amplier on and o.
Register your ACB 50 online at start.fender.com.
1
