Seite 1/10
1
L-C2-358
REV 4 - 1710261125
ROBERT H. PETERSON CO. • 14724 East Proctor Avenue • City of Industry, CA 91746
DOOR, DRAWER, & PANTRY
INSTALL SPECIFICATIONS
INSTALLER: Leave these instructions with consumer.
CONSUMER: Retain for future reference.
• When installing this unit directly below another unit, only install with Fire Magic built-in products.
• For proper installation, be sure to use the correct cutout dimensions as specifi ed for your specifi c
model number.
• It is recommended that silicon caulking (not supplied) is applied around the back of the unit’s
trim before sliding the cabinet assembly into the opening.
• Some models may include an additional owner’s manual.
• When used for propane cylinder storage, a louvered door model is required.
CAUTION: Make sure the enclosure is properly vented. See your grill owner’s manual for venting
requirements, or consult your local codes.
WHEN USING A PROPANE TANK CYLINDER:
• Never locate a cylinder under or near a grill unless suffi cient ventilation and shielding is
provided to prevent any heating of the cylinder regulator and hose. Refer to any additional
instructions included with your door (and/or your grill owner’s manual) for the required installation
method of propane tank cylinders.
• FOLLOW ALL THE SAFETY WARNING AND INFORMATION FOUND IN THESE
INSTRUCTIONS, ON YOUR PROPANE CYLINDER, AND IN YOUR GRILL OWNER’S MANUAL
ABOUT SAFE STORAGE AND USE OF PROPANE GAS.
WARNING
This unit is to be installed by a qualifi ed,
professional service technician.
Model # 53830SC Shown
Model # 53930SC Shown
Important: READ THESE INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION
GENERAL INFORMATION

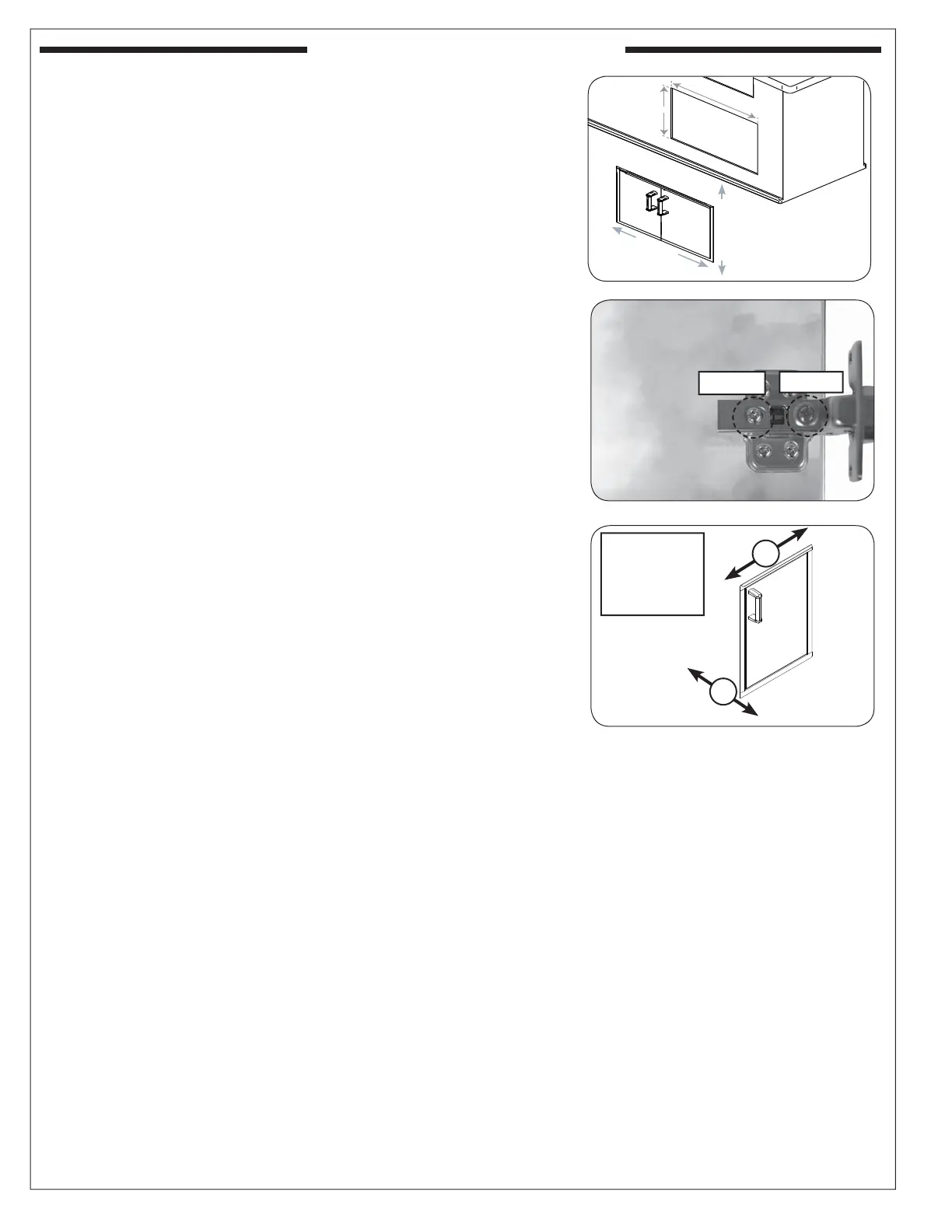

2
L-C2-358
REV 4 - 1710261125
For proper installation, be sure to use the correct cutout
dimensions as specifi ed for your specifi c model number.
Locate your model on the following pages for dimensions,
and reference the cut-out diagram of your unit for proper
orientation.
DOOR
Slide in and fasten the unit securely into the island enclosure
using the appropriate hardware for your enclosure (not supplied)
through the installation screw slots or holes in the top and bottom
of the unit.
For doors with soft-close hinge:
Soft-close hinges have two door adjustment screws per hinge.
Screw "A" adjusts the door left or right. Turn clockwise to move
right and counterclockwise to move left, on both hinges. See Fig.
2-2. Screw "B" allows for the door to adjust inward or outward.
First loosen screw "B", adjust door as needed, then re-secure.
See Fig. 2-2.
For doors with propane tank trays:
To use, simply open the door, pull out the sliding cylinder tray,
place your cylinder on the tray and push the tray back in. The
cylinder is now ready for connection to your grill.
Important: Refer to any additional instructions included
with your door for the required installation
method of propane tank cylinders.
Fig. 2-1 Door cut-out diagram
WIDTH
H
E
I
G
H
T
INSTALLATION GUIDELINES
Fig. 2-2 Adjust door
Fig. 2-3 Adjust door
B
A
Screw B Screw A
Screw A: adjust
left/right
Screw B: adjust
inward/outward
