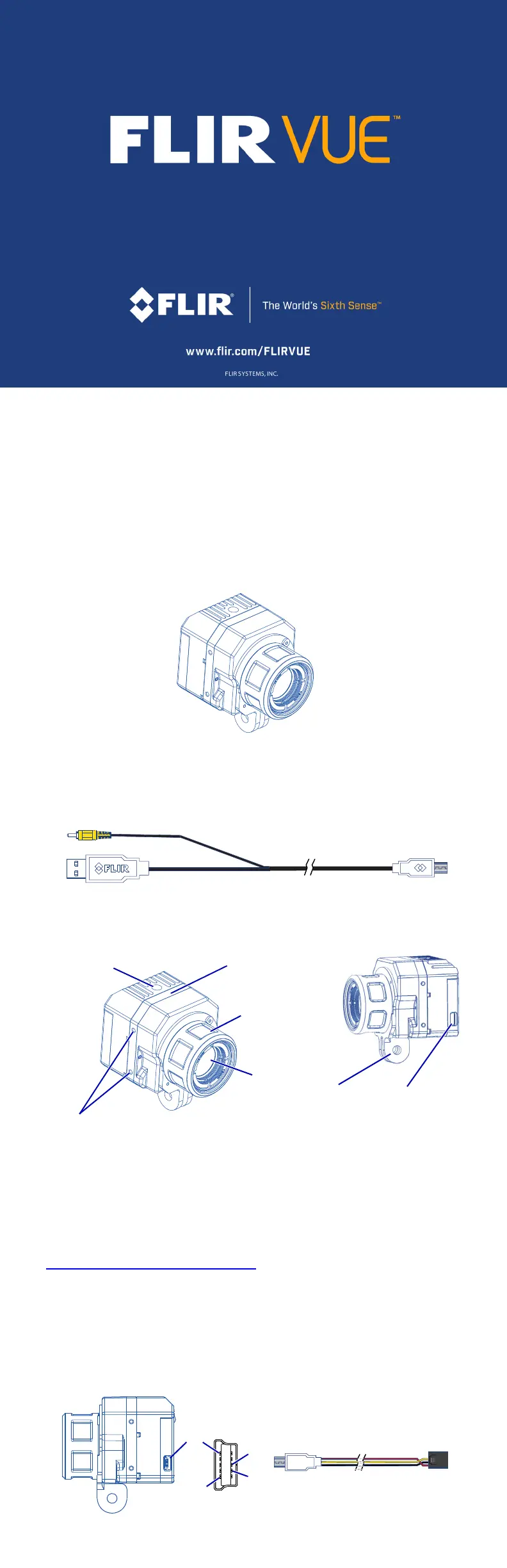

QUICK START GUIDE
436-0002-12, Rev 100
This quick start guide will help show how easy it is to get the plug-and-play
FLIR Vue connected, running, and mounted. The FLIR Vue does not have
an on or off switch. When power is applied the splash screen appears in
about one second and IR video is shown in less than four seconds.
WHAT’S IN THE BOX?
FLIR Vue comes with the following components:
FLIR Vue thermal camera
Bench Cable—for connecting FLIR Vue to a computer with the FLIR
Camera Controller GUI software and to a video monitor for testing and
configuring camera options.
A QUICK TOUR
CONNECTING AND POWERING THE FLIR Vue
FLIR Vue is compatible with common 10-pin mini-USB cables that are
used to provide power to, and get video from, action cameras commonly
mounted on a small unmanned aerial system (sUAS). Refer to the camera
Interface Description Document (IDD)
located on the FLIR web page.
A couple of examples are shown below.
A number of vendors sell cables that are compatible with video transmitters
from ImmersionRC, a brand of transmitter which supplies the 5Vdc power
the FLIR Vue needs. Connect the ImmersionRC video transmitter per the
manufacturer’s instructions.
Connect to
Connect to
Connect to
Video Monitor
FLIR Vue
Computer USB port
M2X0. threaded mounting holes on
the camera’s left side, right side, and
bottom (mounting screws not included)
10-pin mini-USB
Camera Body
¼-20 Threaded
Mounting Hole
Lens
Lens Barrel
connector
Camera Mount
ImmersionRC cable:
White – not used
10-pin mini-USB plug
Pin 2 – 5Vdc power in
Pin 2
Pin 10
Pin 7
Pin 5
Pin 5 – Video GND
Pin 7 – Video Out
Pin 10 – ground
Yellow – Video Out
Black – ground
Red – 5Vdc power in
