INSTRUCTION MANUAL/MANUAL DE USUARIO/
MODE D’EMPLOI/MANUAL DE INSTRUÇÕES
SONAIR-PRO-2P, SONAIR-PRO-2M,
SONAIR-PRO-2MP

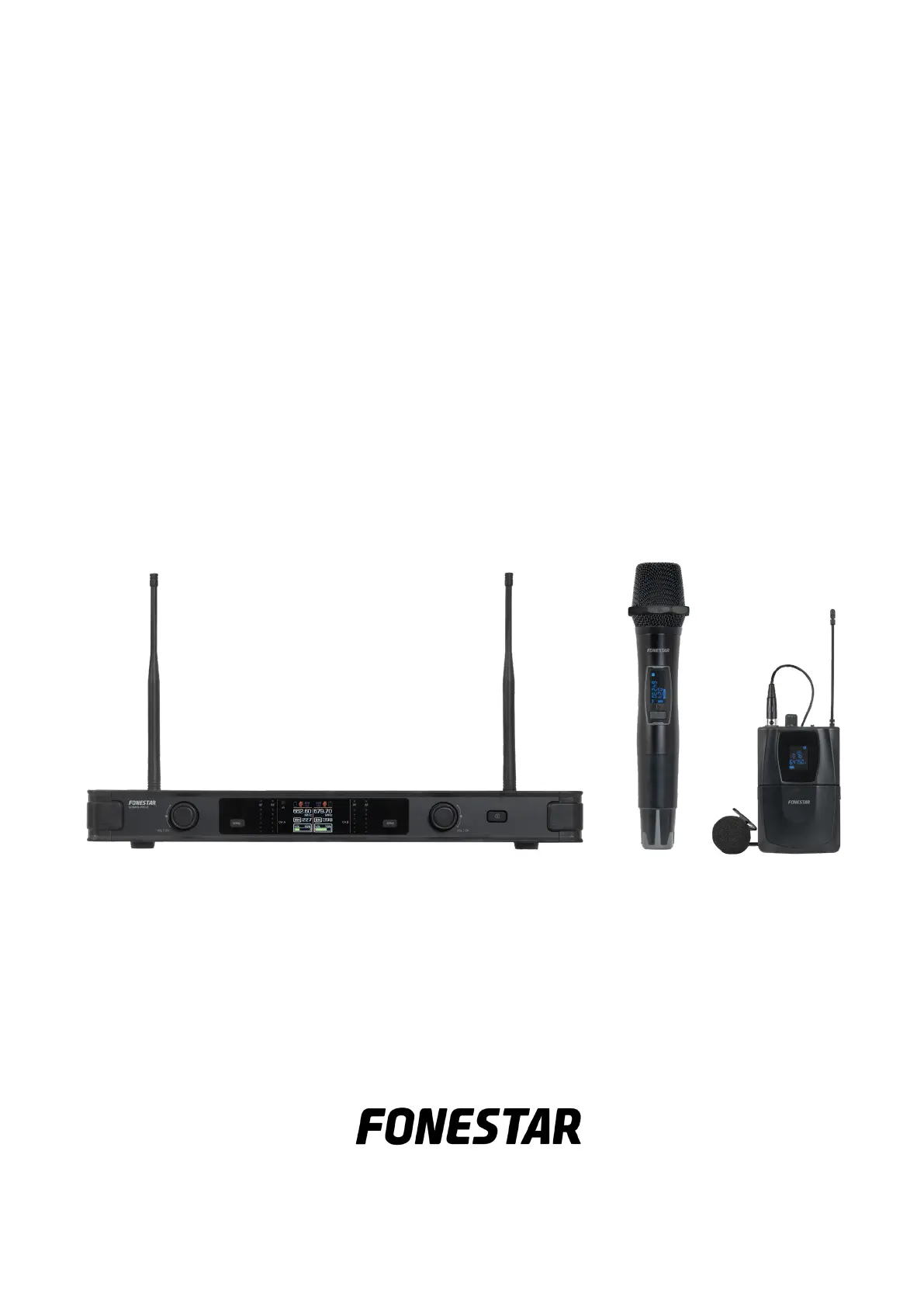

DUAL UHF WIRELESS MICROPHONE SYSTEM
SISTEMA DOBLE DE MICROFONÍA INALÁMBRICA UHF
SYSTÈME DE MICROPHONE SANS FIL UHF DOUBLE
SISTEMA DE MICROFONES DUPLO SEM FIOS UHF
EN
- 2 -
DESCRIPTION
- Wireless microphone with superior sound, stable operation and excellent interference behaviour.
- The microphone integrates the ID Pilot function which pairs the receiver and transmitter with a unique
16-bit code, preventing other microphones from interfering even on the same frequency. In addition, the
diversity reception with two antennas ensures the best RF reception.
- The display on the microphone and on the receiver easily informs about frequency and battery status.
Facilitating the control of microphones.
- The transmitter uses an integrated audio and transmission management solution on a single chip, with
frequency selection and efficient power management to maximise battery life. FM modulation technology
with high sound quality.
- The receiver and microphone channels are quickly synchronised with the IR synchronisation function.
- UHF frequency range with selectable transmission channels.
- Receiver with colour display and low noise balanced and unbalanced output for easy connection.
- SONAIR-PRO-2P: dual receiver + 2 belt-pack with clip-on microphone.
SONAIR-PRO-2M: dual receiver + 2 hand-held microphone.
SONAIR-PRO-2MP: dual receiver + 1 hand-held + 1 belt-pack with clip-on microphone.
CONTROLS AND FUNCTIONS
SONAIR-PRO-2P, SONAIR-PRO-2M & SONAIR-PRO-2MP RECEIVER
402
CH
398
CH
680.10
MHz
679.70
MHz
A B A B
VOL
97%
VOL
76%
1 12 23 4 346 75
1 12 3 4
1.- VOL | CH: multifunction controls.
- rotation: independent volume controls for channels A and B on the audio outputs.
- long press + rotate: enters the configuration mode and selects the channel (transmission
frequency), the channel number will be shaded when this mode is active
HI MUTE
CHANNEL
MHz
HI
CH
402
CH
398
CH
680.10
MHz
679.70
MHz
A B A B
VOL
97%
VOL
76%
402
CH CH
a
f
e
b
d
c
g
g
c
b
a
b
a
3 seg.
3 seg.
c
MUTE
HI
CHANNEL
MHz
CH
B
MHz
IR
402
CH
398
CH
680.10
MHz
679.70
MHz
A B A B
VOL
97%
VOL
76%
A B A B
A B
MUTE
402
. To exit
the configuration mode, long press again or wait a few seconds and it will automatically deactivate.
2.- SYNC: a long press activates the synchronisation of the transmission channel (frequency) and a short
press stops it. For more information, see section OPERATING INSTRUCTIONS - RECEIVER AND
TRANSMITTER SYNCHRONISATION.
3.- AF: audio signal indicator lights for channel A and channel B audio signals. It will light up orange when
receiving audio signal from the microphone. Do not allow the last red LED to illuminate as this will mean
that the signal is saturating; if this happens, decrease the volume of the channel.
4.- RF: radio frenquency signal indicator lights for channel A and channel B. It will light up green when
receiving radio frequency signal from the microphone.
5.- IR: IR sensor for synchronisation of the transmission channel (frequency).
6.- Information display.
7.- : receiver on/off button and indicator light. Make a short press to switch on and a long press to switch
off the receiver.
