INSTRUCTION MANUAL

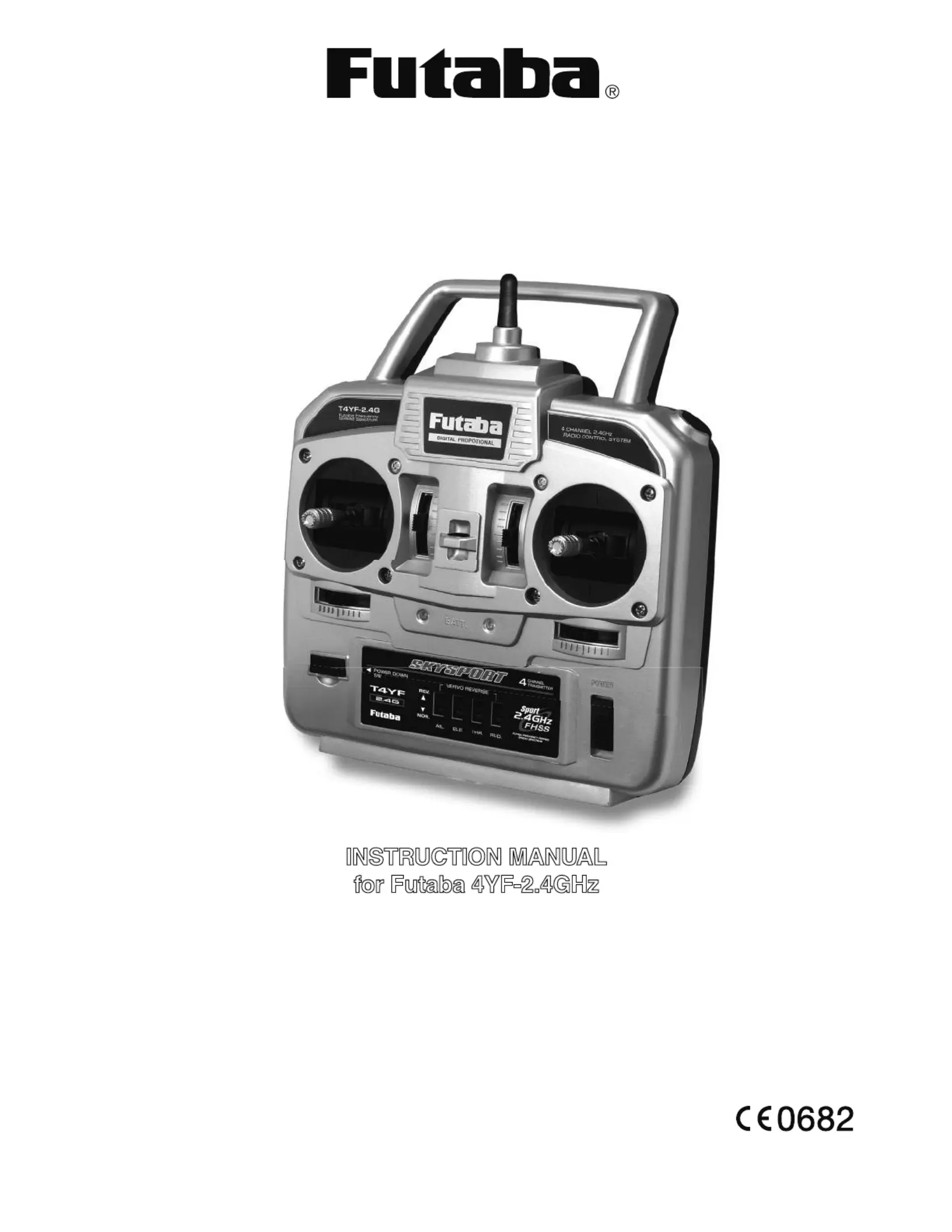

for Futaba 4YF-2.4GHz
4-channel, FHSS
Radio control system
for Airplanes
1M23N11409
Futaba Corporation
Technical updates available at:
https://www.futabausa.com/
Entire Contents © Copyright 2018
4YF-2.4GHz
2
TABLE OF CONTENTS
Introduction ..........................................................................2
Service ..................................................................................2
Usage Precautions ...............................................................3
Contents and Specifications ..............................................6
Glossary ................................................................................6
Introduction to the 4YF-2.4GHz System ............................7
Transmitter Controls and Descriptions .............................7
Battery Replacement ...........................................................8
Charging the Receiver Ni-Cd Batteries .............................8
Link Procedure .....................................................................9
Receiver and Servo Connections ......................................9
Radio Installation ...............................................................10
4YF-2.4GHz Functions .......................................................11
Servo Reversing ...........................................................11
Trim Settings .................................................................11
Elevon Mixing ...............................................................11
Other Functions .................................................................12
Trainer Function ............................................................12
Adjustable-Length Control Sticks .................................12
Flight Preparation ..............................................................13
Range Check the Radio ...............................................13
INTRODUCTION
Thank you for purchasing the Futaba
4YF-2.4GHz FHSS
*1
digital proportional R/C airplane system. Although this is a
beginner
system with the requirements of those flyers in mind, in order to make the best use of your Futaba 4YF-2.4GHz and
to operate it safely,
you must carefully read all of the instructions
.
*1
FHSS: Futaba Frequency Hopping Spread Spectrum
FHSS 4YF 2.4GHz System (T4YF-2.4G transmitter/R2004GF receiver)
• FHSS 2.4GHz Spread Spectrum radio communication system.
• Unique ID code to avoid interference from other FHSS systems.
• Built-in antenna (T4YF-2.4G transmitter)
Suggestion: If, while reading the instructions, you are unclear about some of the procedures of functions and become “stuck,”
continue to read on anyway.
SERVICE
(in USA)
If any difficulties are encountered while setting up or operating your system, please consult the instruction manual first. For
further assistance you may also refer to your hobby dealer, or contact the Futaba Service Center at the web site, fax number
or telephone number below:
www.futabausa.com
service@futabaUSA.com
Fax: 1-256-461-1059
Telephone (8:00 am to 5:00 pm Central time Monday through Friday): 1-256-461-9399
If unable to resolve the problem, pack the system in its original container with a note enclosed and a
thorough, accurate
description of the problem(s). Include the following in your note:
• Symptoms. • Any unusual mounting conditions.
• An inventory of items enclosed. • The items that require repair.
• Your name, address, email address and telephone number.
• Include copy of proof of purchase or purchase reciept if warranty service is requested.
Send your system to the authorized Futaba R/C Service Center at the address below:
FUTABA Corporation of America
2681 Wall Triana Hwy Huntsville, AL 35824, U.S.A.
(outside USA)
Please contact your Futaba importer in your region of the world to assist you with any questions, problems or service needs.
Please recognize that all information in this manual, and all support availability, is based upon the systems sold in USA only.
Products purchased elsewhere may vary. Always contact your region’s support center for assistance.
3
Mean ng of Spec al Mark ngs i i i
Pay special attention to safety where indicated by the following marks:
DANGER
- Procedures which may lead to dangerous conditions and cause death/serious injury if not carried out
properly.
WARNING
- Procedures which may lead to a dangerous condition or cause death or serious injury to the user if not
carried out properly, or procedures where the probability of superficial injury or physical damage is high.
CAUTION
- Procedures where the possibility of serious injury to the user is small, but there is a danger of injury, or
physical damage, if not carried out properly.
= Prohibited
= Mandatory
Appl cati ion, Export, and Mod ficati ion
1. This product may be utilized to control model airplanes or for surface uses (Boats, Cars, Robots). It is not intended for use in
any application other than the control of models for hobby and recreational purposes.
2. Exportation precautions:
(a) When this product is exported from the country of manufacture, its use is to be approved by the laws governing the
country of destination which govern devices that emit radio frequencies. If this product is then re-exported to other countries,
it may be subject to restrictions on such export. Prior approval of the appropriate government authorities may be required.
If you have purchased this product from an exporter outside your country, and not the authorized Futaba distributor in your
country, please contact the seller immediately to determine if such export regulations have been met.
(b) Use of this product outside of the scope of its internal usage may be restricted by Export and Trade Control Regulations,
and an application for export approval must be submitted. This equipment must not be utilized to operate equipment other
than radio controlled models.
3. Modification, adjustment, and replacement of parts:
Futaba is not responsible for unauthorized modification, adjustment, and replacement of parts on this product. Any such
changes may void the warranty.
Warn ngi: This product contains a chemical known to cause cancer and birth defects (or other reproductive harm).
WARNING
Always keep electrical components away from . small ch ldreni
