GC Audio – Gyraf Audio GY 4.5 Inherit Cartridge:
Thank you for purchasing the Gyraf Audio Inherit Cartridge.
We hope you have as much fun using it as we had designing it !
GC Audio is proud to introduce a new preamp that extends the GC Audio cartridges family - based
on a, now classic, design by Jakob Erland, founder of Gyraf Audio and designer of many high-end studio
gears like the G9 preamplifier or the G22 compressor.
Jakob Erland is universally recognized as one of the leading experts in tube hardware design.
He is also very popular in the DIY community where he provides free help.
The GY 4.5 Inherit cartridge is, as its name implies, a single channel of the famous Gyraf Audio Gyratec 9
preamp. Faithful to the original in every detail.
GC Audio GY 4.5 is a genuine tube preamplifier: Coming with two ECC82 running on high voltage, no solid-
state component in the signal path, input/output balanced by high-end Lundahl transformers.
The goal with this design is to achieve everything from a completely clean to a possibly very colorful sound
imprint. All under the total control of the user. The most important aspect of this circuit is its very slow
transition to overload - it has a sweet spot that seems to last for ages. We recommend it e.g. for vocals,
where by raising gain and lowering output volume, you can get a nice dense analog saturation without
overloading your converters. This cartridge is a real creative tool.
Technical Data :
PAD = -28dB
Input impedance = 1K Ohms.
EIN (150 Ohms source @ max gain – 22/22Khz) = Better than -124 dBu.
THD + N = 0.1% @ 1Khz
Gain Step +/-1dB:
1) 22 dB
7) 49 dB
2) 26 dB
8) 52 dB
3) 32 dB
9) 56 dB
4) 37 dB
10) 59 dB
5) 42 dB
11) 61 dB
6) 46 dB
12) 63 dB
Overview by Jakob Erland:
“ The preamp-as-a-cartridge is simply a great idea : In this day and age where you can have clean
and neutral preamps virtually for free with your converters, you don’t want a big stack of the
same type preamp - you want variety, something that matches the individual microphones and
sources you are working with. The inherit cartridge system gives you exactly this - the ease of
trying out a variety of flavors - the possibility of finding that sonic imprint that’s just right for what
you have at hand
The G9, which the GY 4.5 cartridge is based on, is an adaptation of the input circuit of the G36
tape recorder, that I have used and loved since I was a kid.. Update includes transformer
balancing in and outputs, phantom power, switchable high-pass filter and switched gain settings”
Jakob Erland, Gyraf Audio

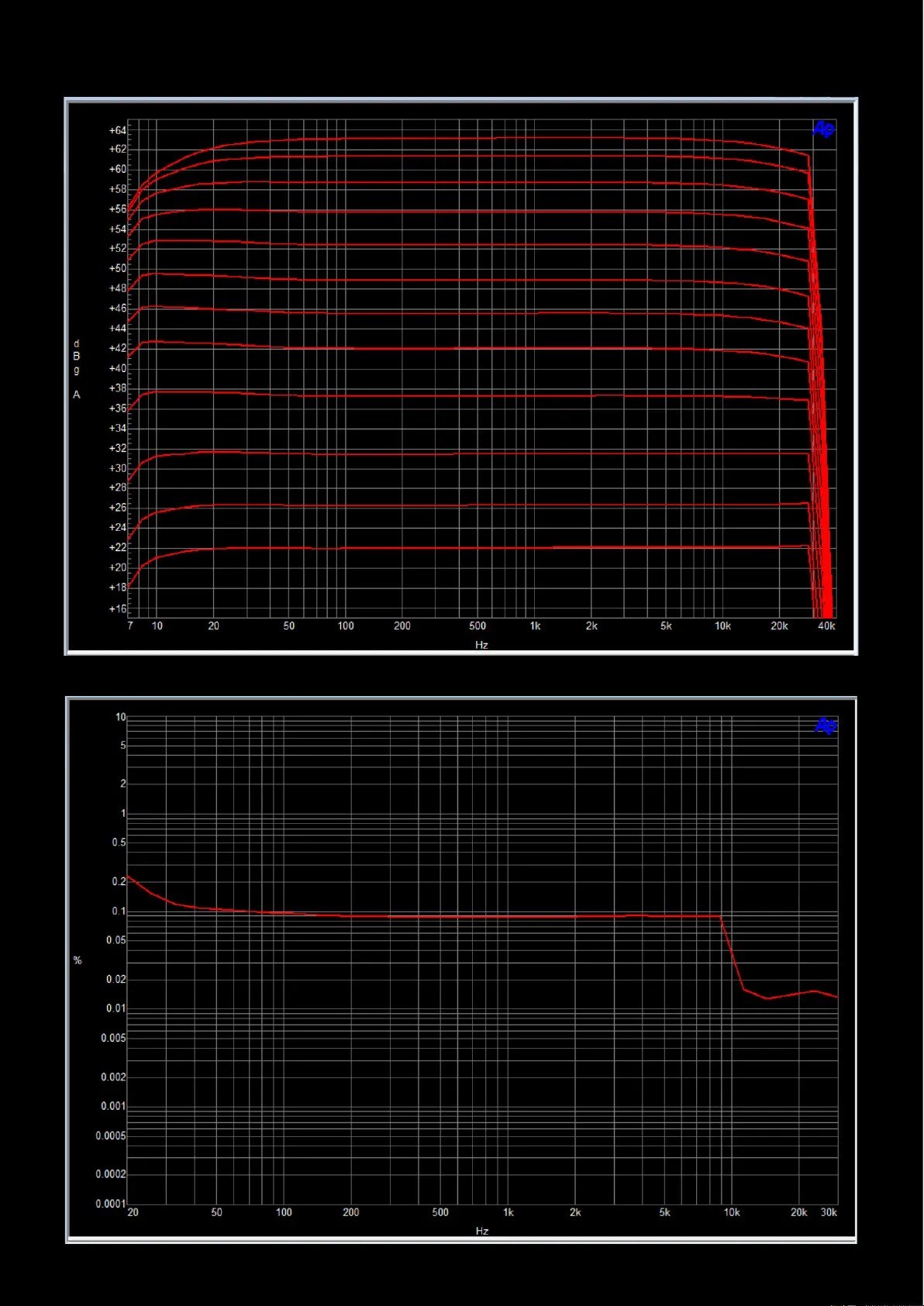

➢ Gain VS frequency:
➢ THD + N VS frequency:
