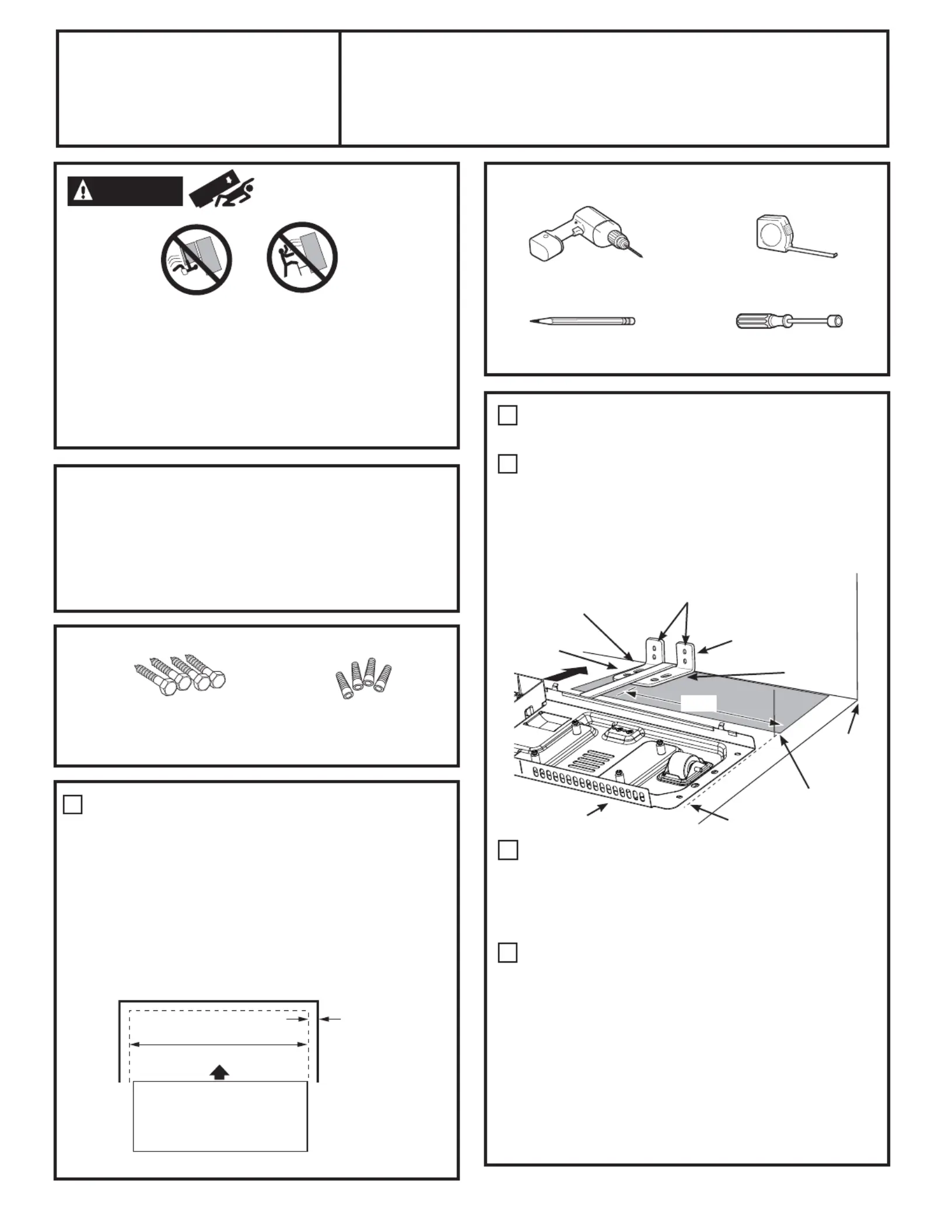

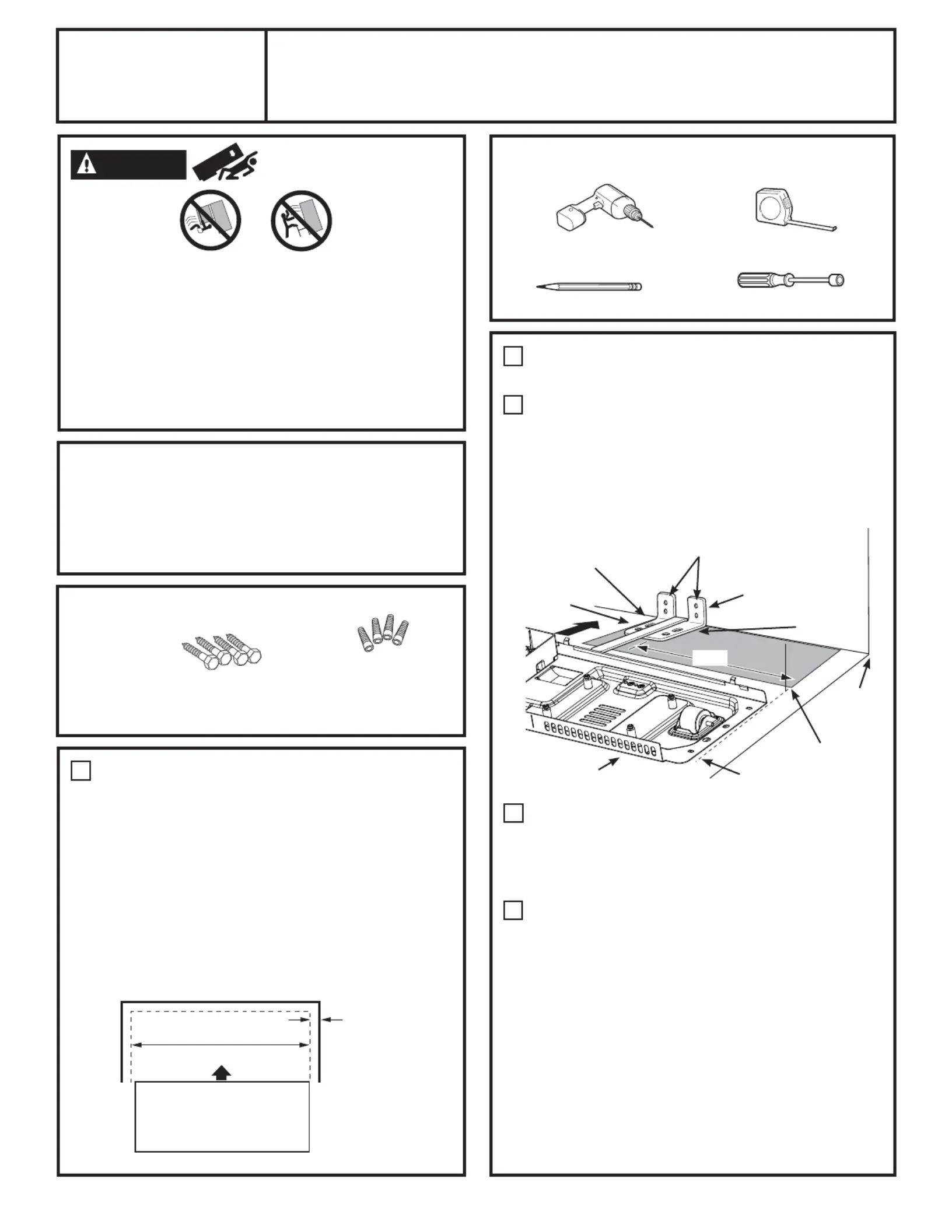

LOCATING THE ANTI-TIP FLOOR
BRACKET
Place the anti-tip floor bracket locator template
(included inside the anti-tip kit) onto the floor up
against the rear wall, within W, and in line with the
desired location of the RH side of the refrigerator
(see Figure 1).
Place the anti-tip floor bracket onto the locator
template with its RH floor holes lined up with the floor
holes indicated on the template sheet, approximately
13 ½" from the edge of the sheet or the RH side of the
refrigerator.
Hold down in position and use the anti-tip floor bracket
as a template for marking the holes based upon your
configuration and type of construction as shown in Step
3. Mark the hole locations with a pencil, nail or awl.
NOTE:
•
It is REQUIRED to use at least 2 screws to mount
the floor bracket (one on each side of the anti-tip
floor bracket). Both must be into either the wall or the

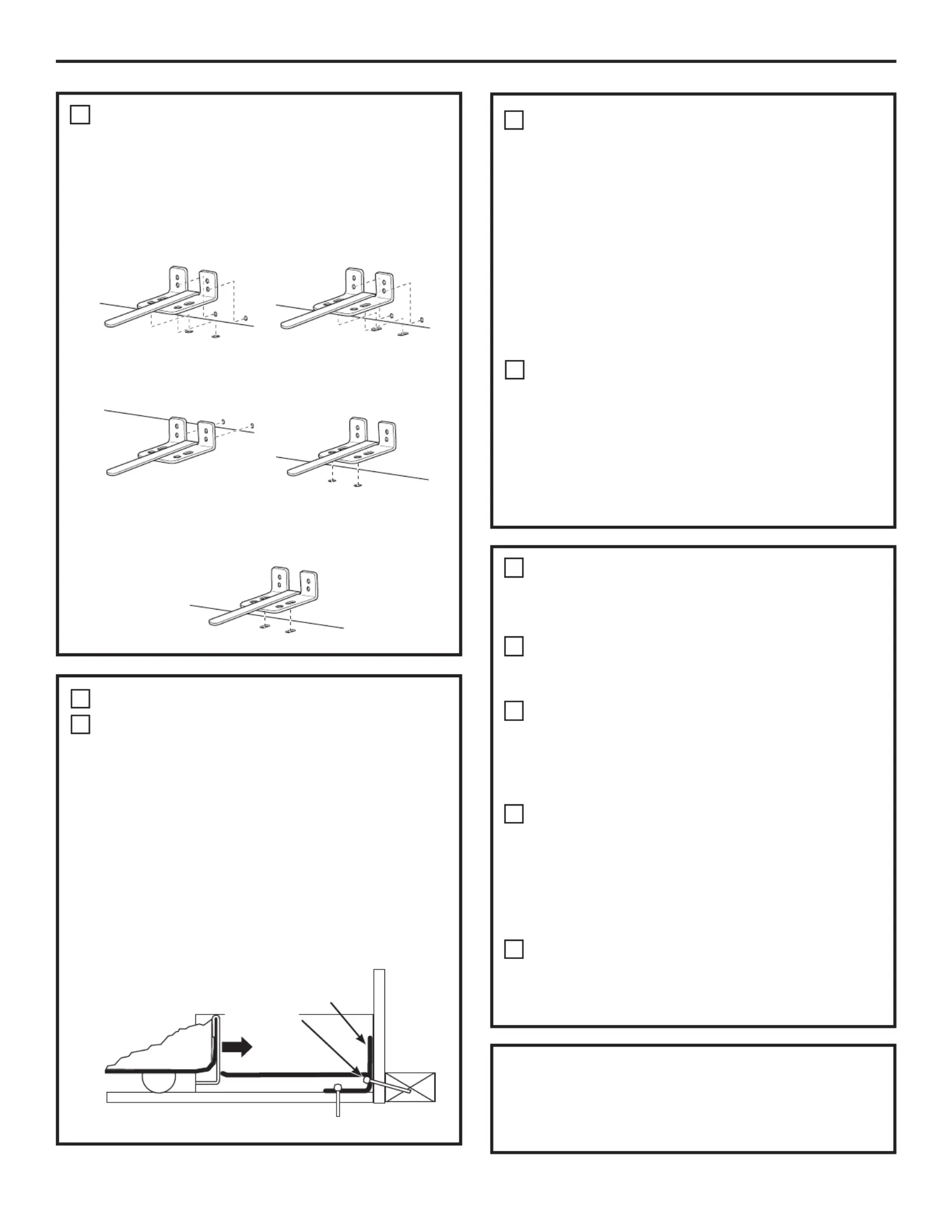

floor. Figure 2 indicates all the acceptable mounting
configurations for screws. Identify the screw holes on
the anti-tip floor bracket for your configuration.
MEASURE CABINET OPENING
AVAILABLE VS. REFRIGERATOR WIDTH
Measure width of cabinet opening where
refrigerator will be placed, W.
Be sure to account for any countertop overhang,
baseboard thickness and any clearance desired.
Width, W, should not be less than 36”. The
refrigerator will be placed approximately in the
middle of this opening.
MATERIALS YOU MAY NEED(not included)
TOOLS YOU WILL NEED
Pencil
1/8” (3 mm) Drill Bit and
Electric or Hand Drill
Tape measure
5/16” (8 mm) Nut Driver
Lag Bolts
1/4” (6 mm) x 1-1/2” (38 mm)
Anchor Sleeves
1/2” (12 mm) OD
For Anti-Tip Bracket Mounted on CONCRETE Floors Only
Drill Bit Appropriate for Anchors
1
Baseboard
Thickness or
Countertop
Overhang
(Whichever Is
Larger) Plus
Any Desired
Clearance
Rear Wall
Front
RH Side
A
2
B
C
1
W
REFRIGERATOR
31-1000632-2 07-24
Floor – Wood
(2 Holes)
Figure 1 – Installation Overview
Base Plate
on the Refrigerator
2 Wall Holes
RH Side of Refrigerator
Floor – Concrete
(2 Holes)
13 ½"
Locator
Template Sheet
Floor Bracket
to Install
RH Holes
Rear RH
Corner of
Cabinet Wall
NOTE:
If you did not receive an anti-tip bracket with your
purchase, call 1.800.GECARES to receive one at no
cost. (In Canada, call 1.800.561.3344.)
For installation instructions of the bracket,
visit: www.GEAppliances.com.
(In Canada, www.GEAppliances.ca.)
WARNING
Tip Over Hazard.
Built-in style models (models PHD, PJD, PJE, PXD,
CJE, CHE and CXE) are top heavy, especially with
any doors open. These models must be secured with
the anti-tip floor bracket to prevent tipping forward,
which could result in death or serious injury. Read and
follow the entire installation instructions for installing the
anti-tip floor bracket packed with your refrigerator.
Anti-Tip
Floor Bracket
PHD, PJD, PJE, PXD, CJE, CHE and CXE Models Only
Installation
Instructions
