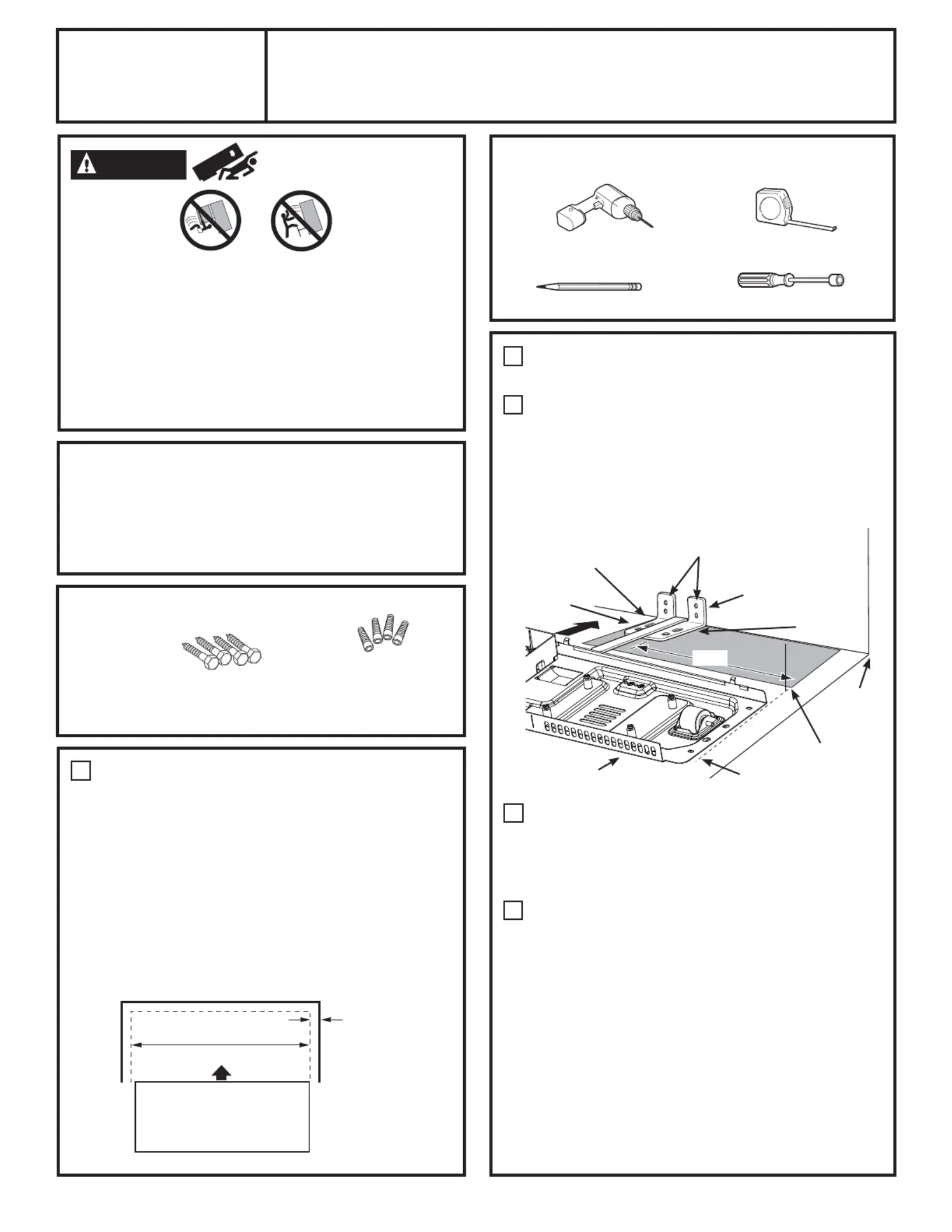

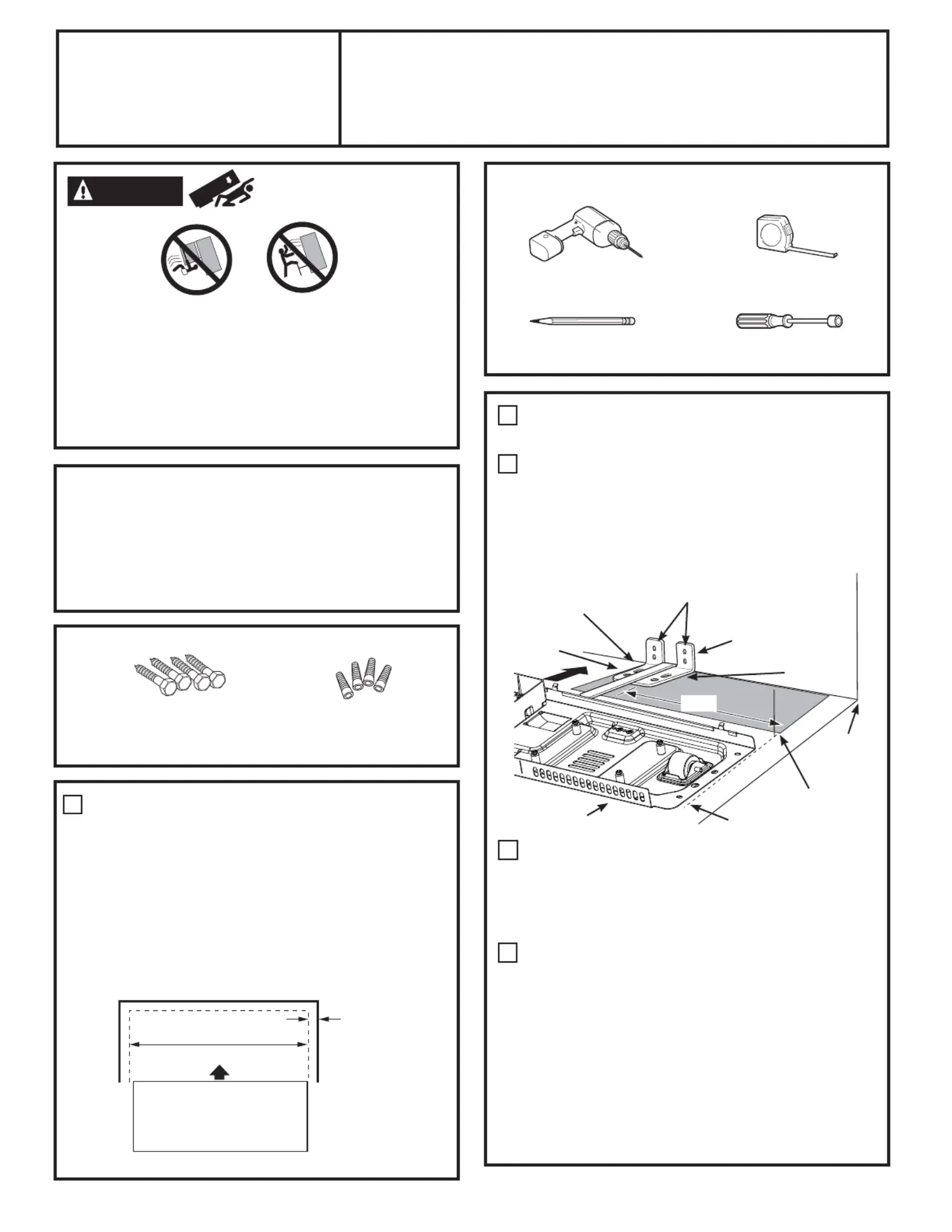

LOCATING THE ANTI-TIP FLOOR

BRACKET

Place the anti-tip floor bracket locator template

(included inside the anti-tip kit) onto the floor up

against the rear wall, within W, and in line with the

desired location of the RH side of the refrigerator

(see Figure 1).

Place the anti-tip floor bracket onto the locator

template with its RH floor holes lined up with the floor

holes indicated on the template sheet, approximately

13 ½" from the edge of the sheet or the RH side of the

refrigerator.

Hold down in position and use the anti-tip floor bracket

as a template for marking the holes based upon your

configuration and type of construction as shown in Step

3. Mark the hole locations with a pencil, nail or awl.

NOTE:

•

It is REQUIRED to use at least 2 screws to mount

the floor bracket (one on each side of the anti-tip

floor bracket). Both must be into either the wall or the

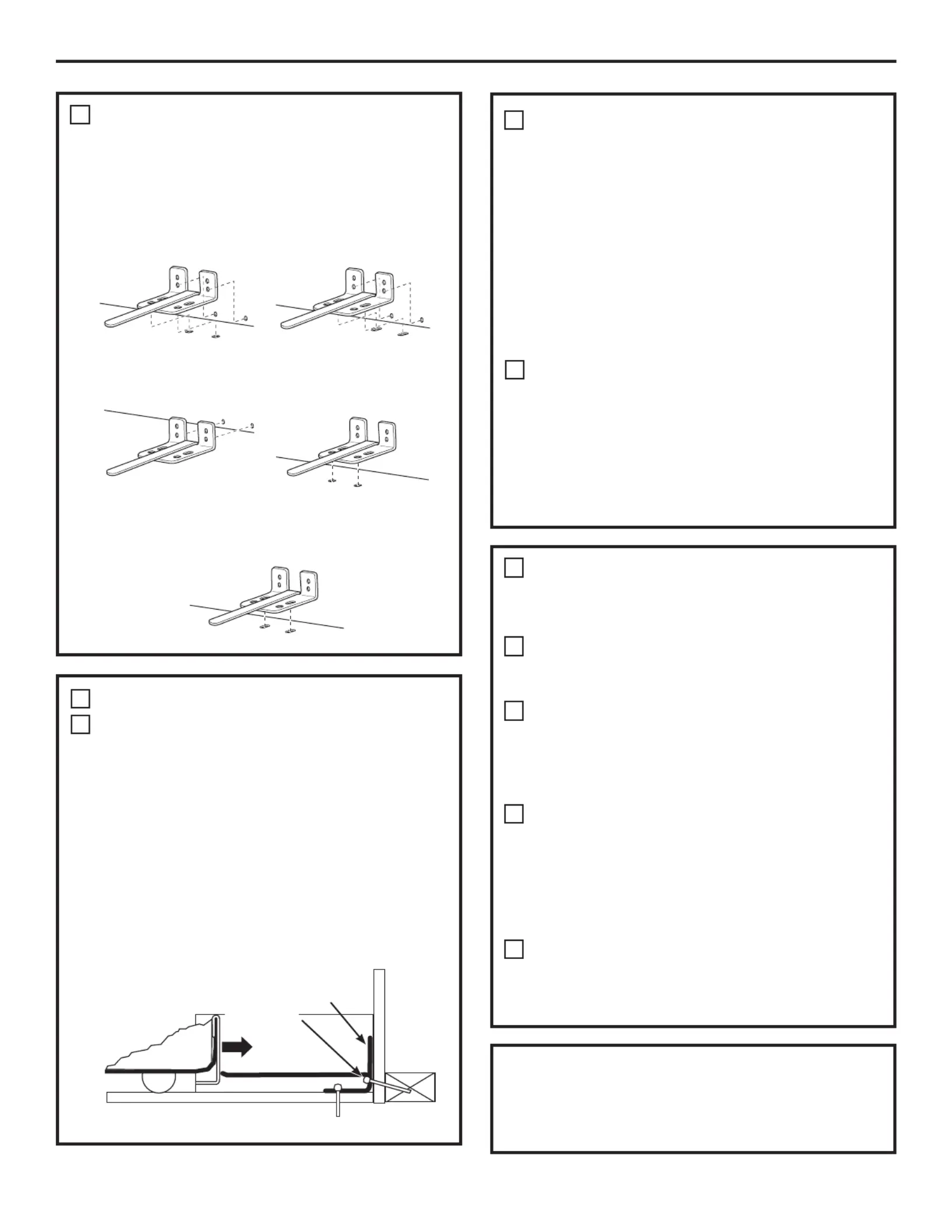

floor. Figure 2 indicates all the acceptable mounting

configurations for screws. Identify the screw holes on

the anti-tip floor bracket for your configuration.

MEASURE CABINET OPENING

AVAILABLE VS. REFRIGERATOR WIDTH

Measure width of cabinet opening where

refrigerator will be placed, W.

Be sure to account for any countertop overhang,

baseboard thickness and any clearance desired.

Width, W, should not be less than 36”. The

refrigerator will be placed approximately in the

middle of this opening.

MATERIALS YOU MAY NEED(not included)

TOOLS YOU WILL NEED

Pencil

1/8” (3 mm) Drill Bit and

Electric or Hand Drill

Tape measure

5/16” (8 mm) Nut Driver

Lag Bolts

1/4” (6 mm) x 1-1/2” (38 mm)

Anchor Sleeves

1/2” (12 mm) OD

For Anti-Tip Bracket Mounted on CONCRETE Floors Only

Drill Bit Appropriate for Anchors

1

Baseboard

Thickness or

Countertop

Overhang

(Whichever Is

Larger) Plus

Any Desired

Clearance

Rear Wall

Front

RH Side

A

2

B

C

1

W

REFRIGERATOR

31-1000632-3 03-25

Floor – Wood

(2 Holes)

Figure 1 – Installation Overview

Base Plate

on the Refrigerator

2 Wall Holes

RH Side of Refrigerator

Floor – Concrete

(2 Holes)

13 ½"

Locator

Template Sheet

Floor Bracket

to Install

RH Holes

Rear RH

Corner of

Cabinet Wall

NOTE:

If you did not receive an anti-tip bracket with your

purchase, call 1.800.GECARES to receive one at no

cost. (In Canada, call 1.800.561.3344.)

For installation instructions of the bracket,

visit: www.GEAppliances.com.

(In Canada, www.GEAppliances.ca.)

WARNING

Tip Over Hazard.

Built-in style models (models PJD, PJE, PXD, CJE and

CXE) are top heavy, especially with any doors open.

These models must be secured with the anti-tip floor

bracket to prevent tipping forward, which could result

in death or serious injury. Read and follow the entire

installation instructions for installing the anti-tip floor

bracket packed with your refrigerator.

Anti-Tip

Floor Bracket

PJD, PJE, PXD, CJE and CXE Models Only

Installation

Instructions
