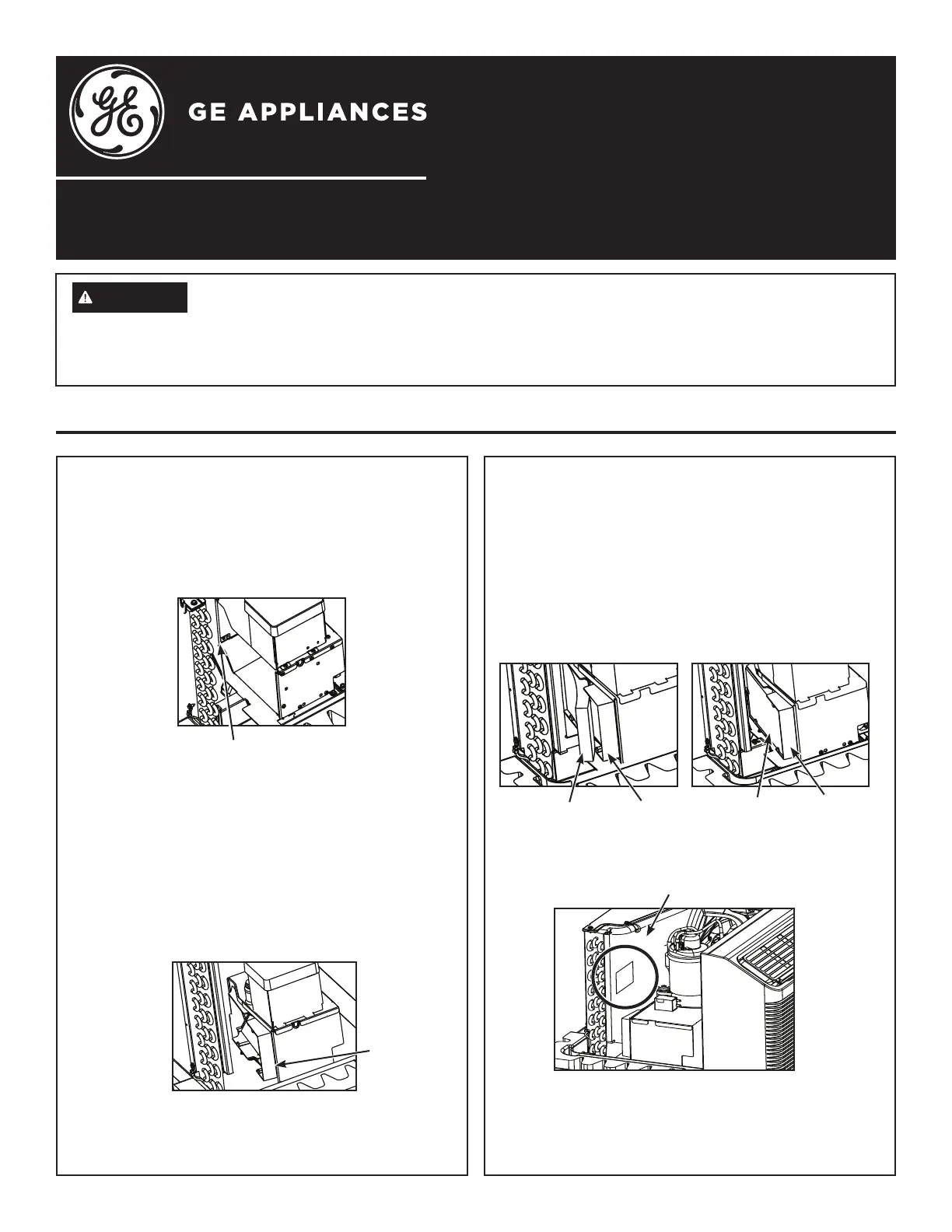

PROCEDURE FOR INSTALLING

FILTER KIT

1. Ensure power is not connected to Zoneline.

2. Insert filter housing into the far side slot of the

make-up air module.

3. Compress the filter housing by pressing on its

opposite end causing the filter housing to bend (be

careful not to apply too much pressure).

4. While in the compressed state, insert the other end

of the filter housing into the opening of the make-up

air module.

5. Release the grip on the filter housing and let it

expand back to its original shape while guiding the

other end of the housing into the near side slot of

the make-up air module.

6. Both ends of the filter housing should now be

located within both slots of the make-up module.

31-5000405 Rev. 0 05-19 GEA

WARNING

For your safety, the information in these instructions must be followed to minimize the risk of electric

shock, property damage, personal injury, or loss of life.

• Unplug or disconnect the Zoneline at the fuse box or circuit breaker prior to working on product.

NOTE: We strongly recommend that any servicing be performed by a qualified individual.

Installation Instructions

Zoneline Make-Up Air Module MERV 13 filter

housing kit (includes 1 filter): : RAK13

Replacement MERV 13 Filter Kit: RAA13

Before you begin - Read these instructions completely and carefully. IMPORTANT – OBSERVE ALL GOVERNING

CODES AND ORDINANCES. Note to Installer – Be sure to leave these instructions with the Consumer. Note to

Consumer – Keep these instructions with your Owner’s Manual for future reference.

Installation Instructions: Filter Kit

PROCEDURE FOR INSTALLING

FILTER KIT

7. Looking at the tag on the air filter, orientate the

filter so the airflow is in the correct direction into the

make-up air module.

8. Insert the filter into the filter housing, adjust the filter

as needed to ensure it is taking up the entire cavity

of the filter housing.

9. Place the “airflow label”, as seen on the second

page, on the fan shroud across from the make-up air

module.

10.

REPLACE THE AIR FILTER WITHIN EVERY 90

DAYS IN ORDER TO AVOID VOIDING WARRANTY.

In areas where outside air quality is lower, the air filter

may need to be changed more frequently.

Far Side Slot

Filter housing

Inserted into

Near Side Slot

3ODFH$LUÀRZ/DEHO+HUH

FilterFilter housing

FilterFilter housing
